RFU Series
Manufacturer: RF Industries
Beta
⌘K
UHF FEMALE BH; 50 OHMS
| Part | Body Material | Center Contact Plating | Dielectric Material | Body Finish | Voltage Rating | Shield Termination | Contact Termination | Number of Ports | Connector Style | Connector Type | Mounting Type | Fastening Type | Mounting Feature | Center Contact Material | Frequency - Max [Max] | Impedance | Housing Color | Conversion Type | Style | Convert From (Adapter End) | Convert To (Adapter End) | Center Gender | Adapter Type | Adapter Series | Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

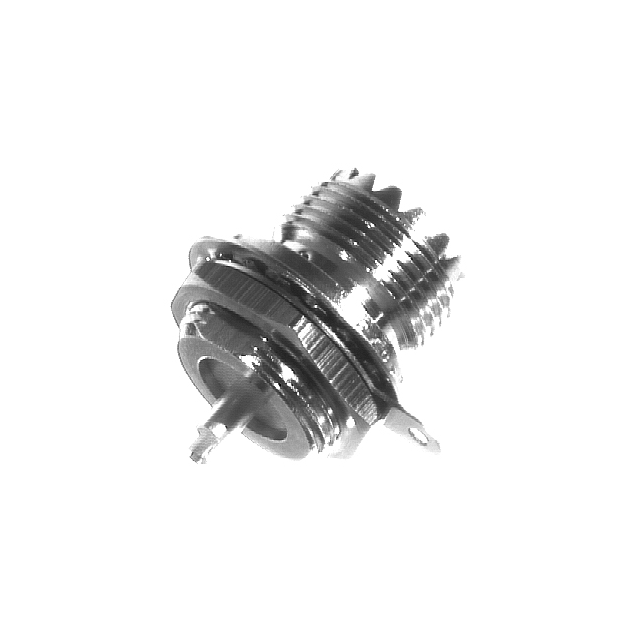

 RF Industries | Zinc Die Cast | Silver | Diallyl Phthalate (DAP) | Nickel | 500 V | Solder | Solder Cup | 1 | UHF | Female Socket Jack | Panel Mount | Threaded | Bulkhead - Rear Side Nut | Brass | 300 MHz | Non-Constant | Silver | |||||||||||

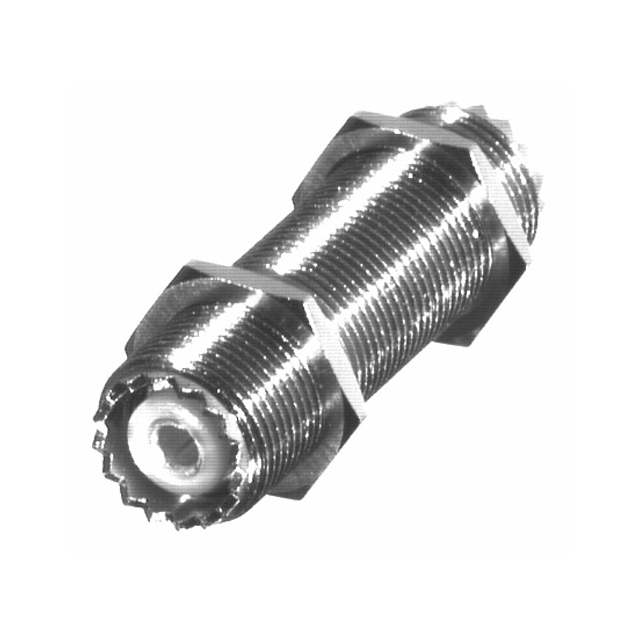

 RF Industries | Brass | Silver | Polyoxymethylene (POM) Acetal | Nickel | Panel Mount | Bulkhead | Brass | 300 MHz | Non-Constant | Same Series | Straight | UHF Jack Female Socket | UHF Jack Female Socket | Female to Female | Jack to Jack | UHF to UHF | ||||||||||||

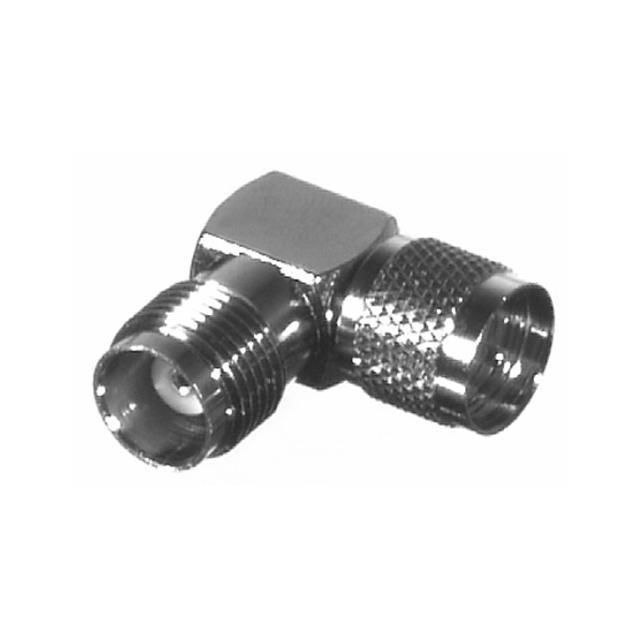

 RF Industries | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Free Hanging (In-Line) Right Angle | Between Series | Right Angle | UHF Mini Plug Male Pin | Female Socket TNC Jack | Plug to Jack | TNC to UHF Mini | ||||||||||||||||||
 RF Industries | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Free Hanging (In-Line) | Brass | 2.5 GHz | Between Series | Straight | UHF Mini Jack Female Socket | Plug to Jack | TNC to UHF Mini | 50 Ohms | |||||||||||||||

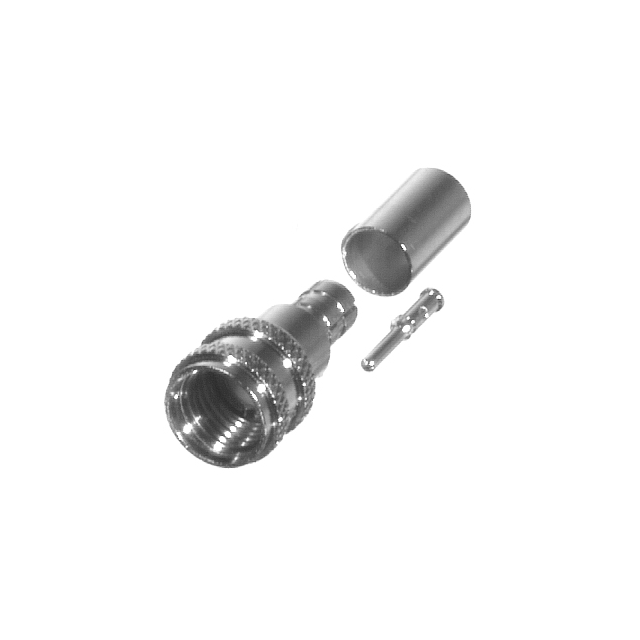

 RF Industries | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | 335 V | Crimp | Crimp | 1 | Mini UHF | Plug Male Pin | Free Hanging (In-Line) | Threaded | Brass | 2.5 GHz | Silver | 50 Ohms | -65 ░C | 165 °C | Belden 9258 LMR-240 RG-8X | |||||||||

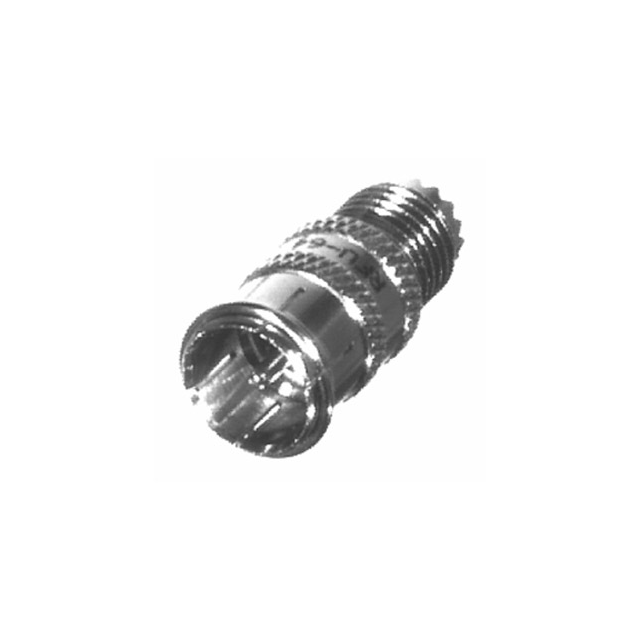

 RF Industries | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Free Hanging (In-Line) | Snap-On Threaded | Phosphor Bronze | 2.5 GHz | Same Series | Straight | UHF Mini Plug Male Pin | UHF Mini Jack Female Socket | Plug to Jack | Mini Mini to UHF UHF | 50 Ohms | -65 ░C | 165 °C | |||||||||||

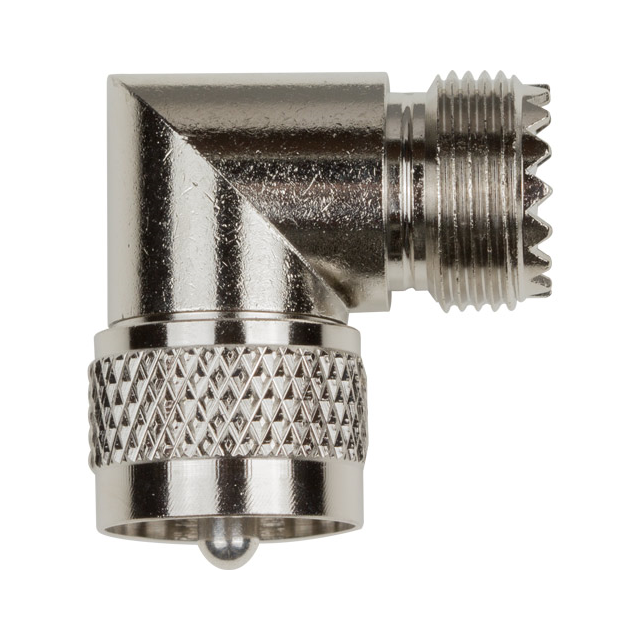

 RF Industries | Brass | Silver | Polyoxymethylene (POM) Acetal | Nickel | Free Hanging (In-Line) Right Angle | Brass | 300 MHz | Non-Constant | Same Series | Right Angle | UHF Plug Male Pin | UHF Jack Female Socket | Plug to Jack | UHF to UHF | ||||||||||||||

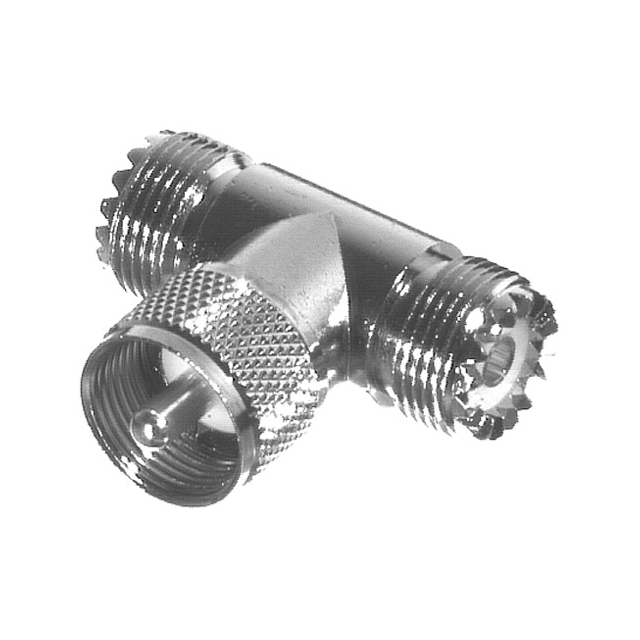

 RF Industries | Brass | Silver | Polyoxymethylene (POM) Acetal | Nickel | Free Hanging (In-Line) | Brass | 300 MHz | Non-Constant | Same Series | T-Shape | UHF Plug Male Pin | UHF Jack Female Socket (2) | Plug to Jack | UHF to UHF Dual | ||||||||||||||

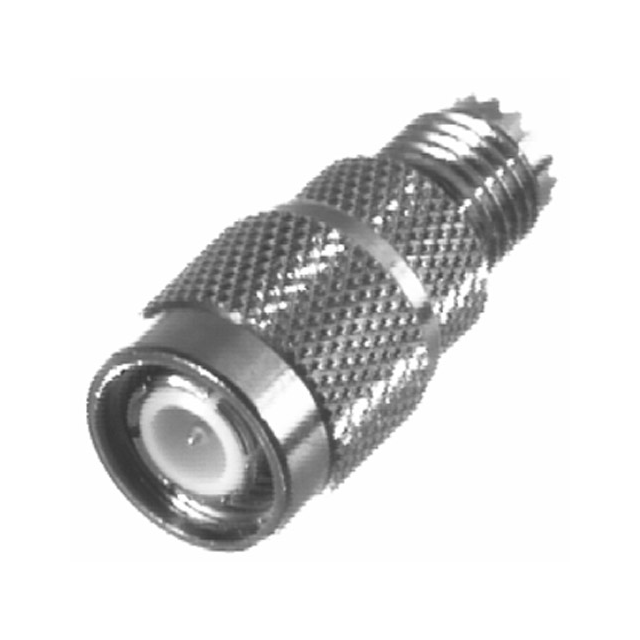

 RF Industries | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Free Hanging (In-Line) | Brass | 2.5 GHz | Between Series | Straight | UHF Mini Plug Male Pin | Female Socket TNC Jack | Plug to Jack | TNC to UHF Mini | 50 Ohms | ||||||||||||||

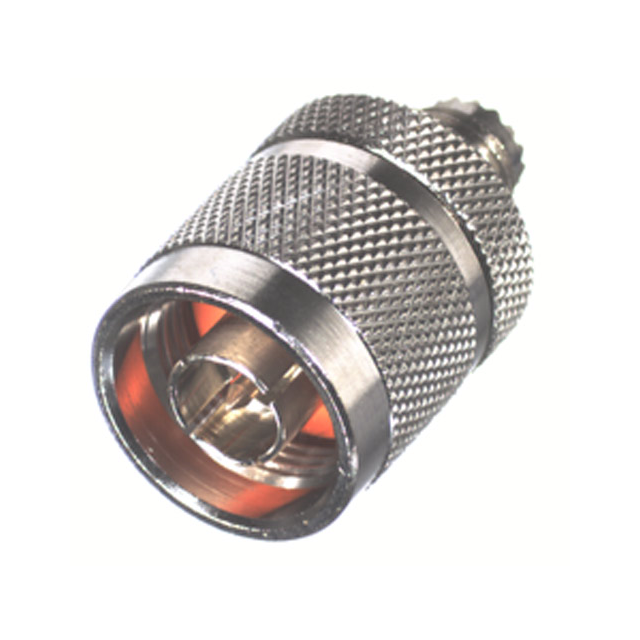

 RF Industries | Silver | Polytetrafluoroethylene (PTFE) | Nickel | Free Hanging (In-Line) | Between Series | Straight | N Plug Male Pin | UHF Mini Jack Female Socket | Plug to Jack | N to UHF Mini |
