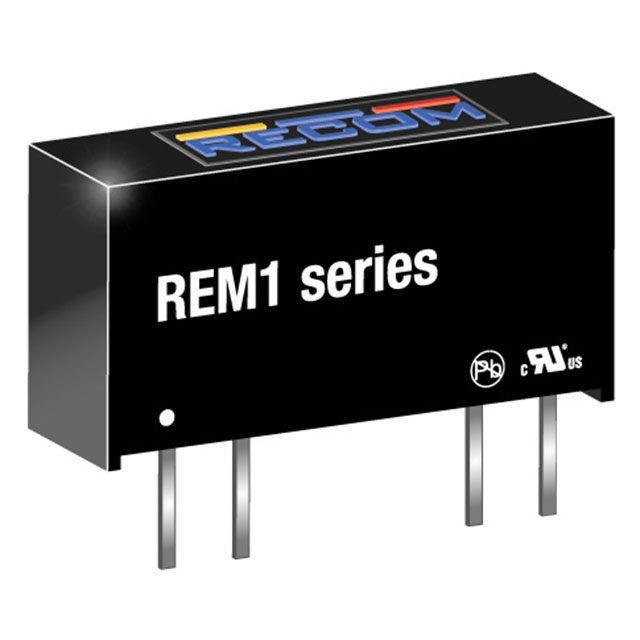

REM1 Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 5 V
| Part | Mounting Type | Type | Voltage - Output 1 | Efficiency | Number of Outputs | Voltage - Isolation | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Applications | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Through Hole | Isolated Module | 5 V | 80 % | 1 | 5.2 kV | 26.4 V | 85 °C | -40 C | 200 mA | 21.6 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
 Recom Power | Through Hole | Isolated Module | 12 V | 84 % | 1 | 5.2 kV | 5.5 V | 85 °C | -40 C | 84 mA | 4.5 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
 Recom Power | Through Hole | Isolated Module | 12 V | 85 % | 1 | 5.2 kV | 3.63 V | 85 °C | -40 C | 84 mA | 2.97 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
Recom Power | Through Hole | Isolated Module | 5 V | 81 % | 1 | 5.2 kV | 3.63 V | 85 °C | -40 C | 200 mA | 2.97 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
 Recom Power | Through Hole | Isolated Module | 3.3 V | 79 % | 1 | 5.2 kV | 5.5 V | 85 °C | -40 C | 303 mA | 4.5 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
Recom Power | Through Hole | Isolated Module | 3.3 V | 78 % | 1 | 5.2 kV | 3.63 V | 85 °C | -40 C | 303 mA | 2.97 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
Recom Power | Through Hole | Isolated Module | 5 V | 81 % | 1 | 5.2 kV | 16.5 V | 85 °C | -40 C | 200 mA | 13.5 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
Recom Power | Through Hole | Isolated Module | 3.3 V | 78 % | 1 | 5.2 kV | 13.2 V | 85 °C | -40 C | 303 mA | 10.8 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
Recom Power | Through Hole | Isolated Module | 5 V | 80 % | 1 | 5.2 kV | 5.5 V | 85 °C | -40 C | 200 mA | 4.5 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
Recom Power | Through Hole | Isolated Module | 3.3 V | 76 % | 1 | 5.2 kV | 26.4 V | 85 °C | -40 C | 303 mA | 21.6 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | Medical | 7-SIP Module 4 Leads |
