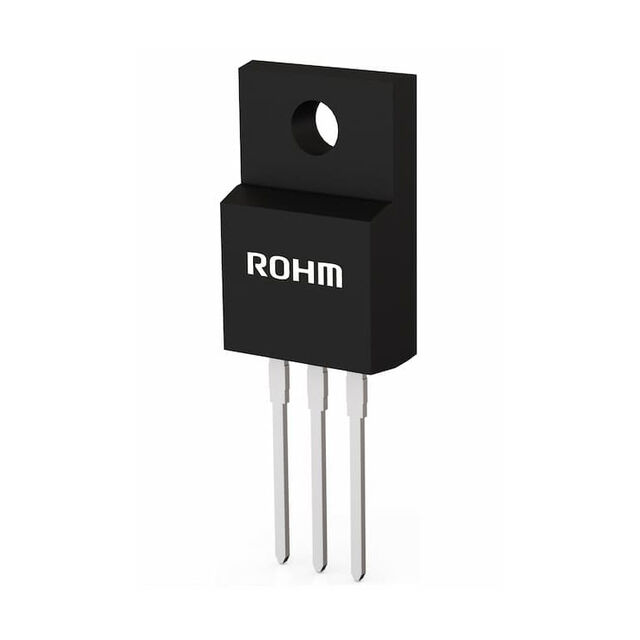

600V 18A TO-220FM, High-speed switching Power MOSFET
Description
AI
R6038YNX is a power MOSFET with low on-resistance and fast switching, suitable for the switching application.
Beta
⌘K
600V 18A TO-220FM, High-speed switching Power MOSFET
600V 18A TO-220FM, High-speed switching Power MOSFET
| Part | Technology | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Package / Case | Mounting Type | FET Type | Operating Temperature | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

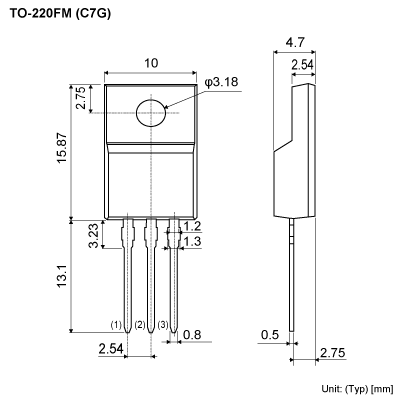

 Rohm Semiconductor | MOSFET (Metal Oxide) | 18 A | 96 mOhm | 6 V | TO-220-3 Full Pack | Through Hole | N-Channel | 150 °C | 30 V | 2350 pF | 600 V | TO-220FM | 50 nC | 10 V 12 V | 81 W |
