892-70 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER R/A 68POS 2.54MM

...

Part	Contact Finish Thickness - Post	Fastening Type	Number of Positions Loaded	Connector Type	Number of Positions	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Mounting Type	Voltage Rating	Material Flammability Rating	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Mating	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Termination	Current Rating (Amps)	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Overall Contact Length

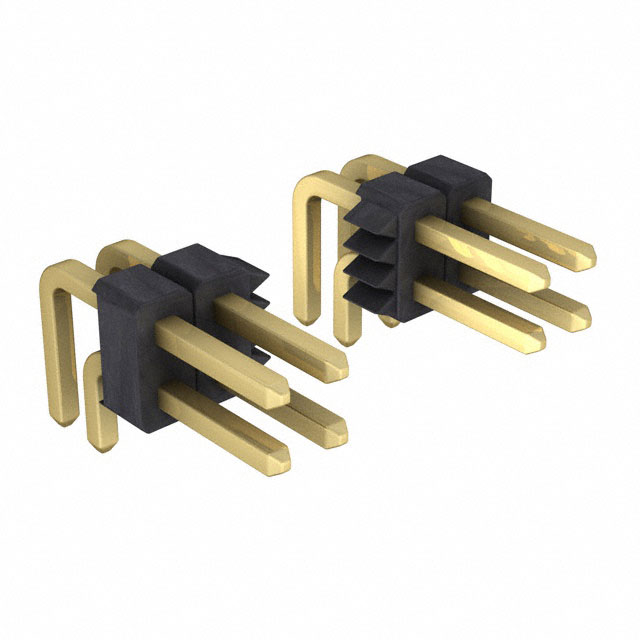

Preci-Dip 892-70-068-20-001101	Flash	Push-Pull	All	Header	68 positions	Male Pin	Square	Flash	Right Angle Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	6 mm	0.236 in	Gold	Solder	3 A	Unshrouded	0.2 in	5.08 mm
Preci-Dip 892-70-066-20-001101	Flash	Push-Pull	All	Header	66	Male Pin	Square	Flash	Right Angle Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	6 mm	0.236 in	Gold	Solder	3 A	Unshrouded	0.2 in	5.08 mm

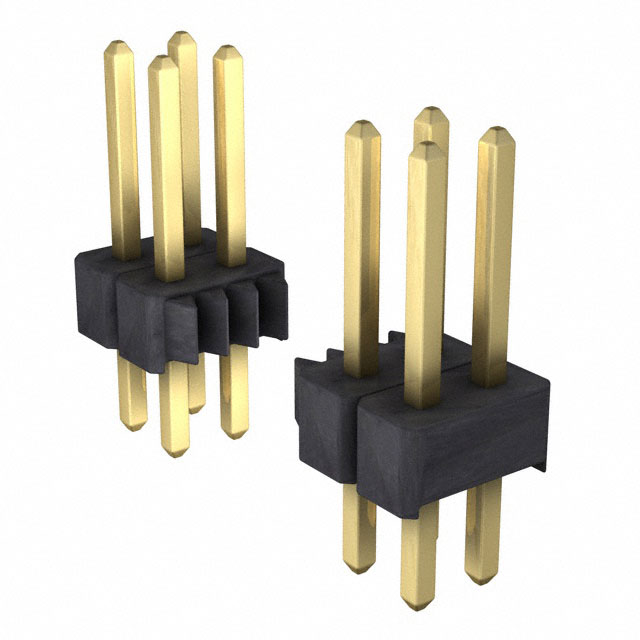

Preci-Dip 892-70-060-10-002101	Flash	Push-Pull	All	Header	60	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	7 mm		Gold	Solder	3 A	Unshrouded			0.276 in	0.1 in	2.54 mm	0.494 in	12.54 mm

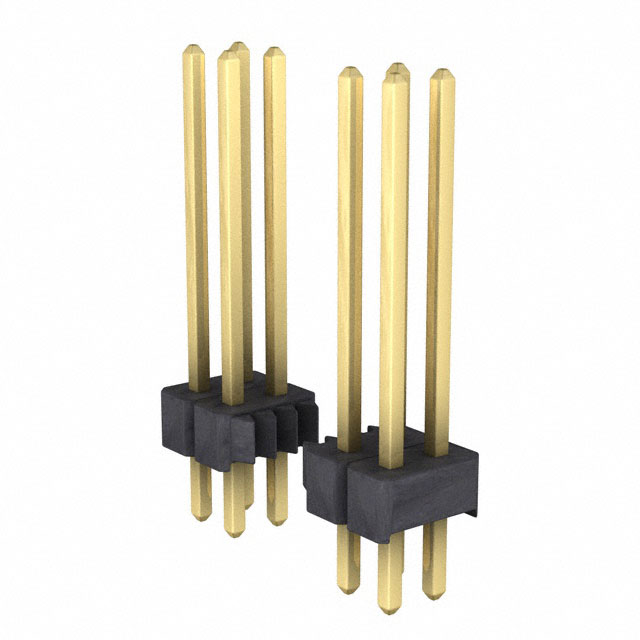

Preci-Dip 892-70-048-10-004101	Flash	Push-Pull	All	Header	48	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	14.91 mm	0.587 in	Gold	Solder	3 A	Unshrouded				0.1 in	2.54 mm	20.44 mm		0.805 in
Preci-Dip 892-70-046-10-004101	Flash	Push-Pull	All	Header	46	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	14.91 mm	0.587 in	Gold	Solder	3 A	Unshrouded				0.1 in	2.54 mm	20.44 mm		0.805 in

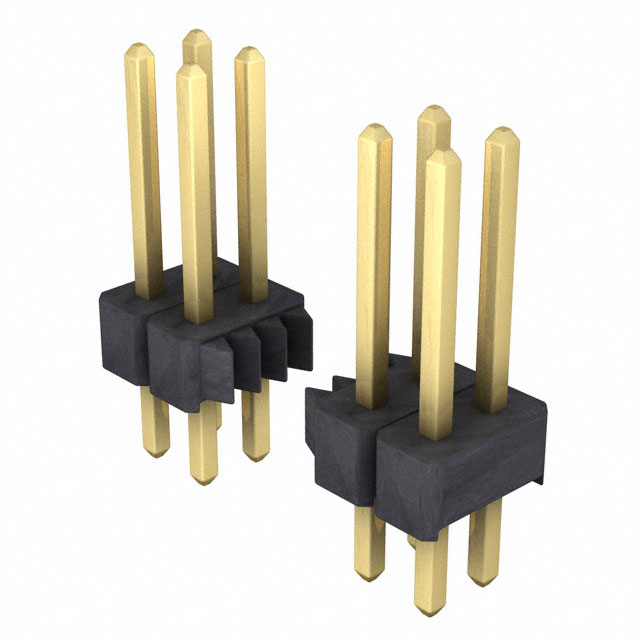

Preci-Dip 892-70-058-10-003101	Flash	Push-Pull	All	Header	58	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	8.51 mm	0.335 in	Gold	Solder	3 A	Unshrouded				0.1 in	2.54 mm	14.04 mm		0.553 in
Preci-Dip 892-70-012-20-001101	Flash	Push-Pull	All	Header	12	Male Pin	Square	Flash	Right Angle Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	6 mm	0.236 in	Gold	Solder	3 A	Unshrouded	0.2 in	5.08 mm
Preci-Dip 892-70-040-10-003101	Flash	Push-Pull	All	Header	40	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	8.51 mm	0.335 in	Gold	Solder	3 A	Unshrouded				0.1 in	2.54 mm	14.04 mm		0.553 in
Preci-Dip 892-70-058-10-002101	Flash	Push-Pull	All	Header	58	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	7 mm		Gold	Solder	3 A	Unshrouded			0.276 in	0.1 in	2.54 mm	0.494 in	12.54 mm
Preci-Dip 892-70-062-10-003101	Flash	Push-Pull	All	Header	62	Male Pin	Square	Flash	Through Hole	150 VDC	UL94 V-0	Glass Filled Nylon Polyamide (PA)	0.1 "	2.54 mm	Brass	Gold	2	0.118 in	3 mm	0.1 in	2.54 mm	Black	-55 C	125 °C	8.51 mm	0.335 in	Gold	Solder	3 A	Unshrouded				0.1 in	2.54 mm	14.04 mm		0.553 in
