3126-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

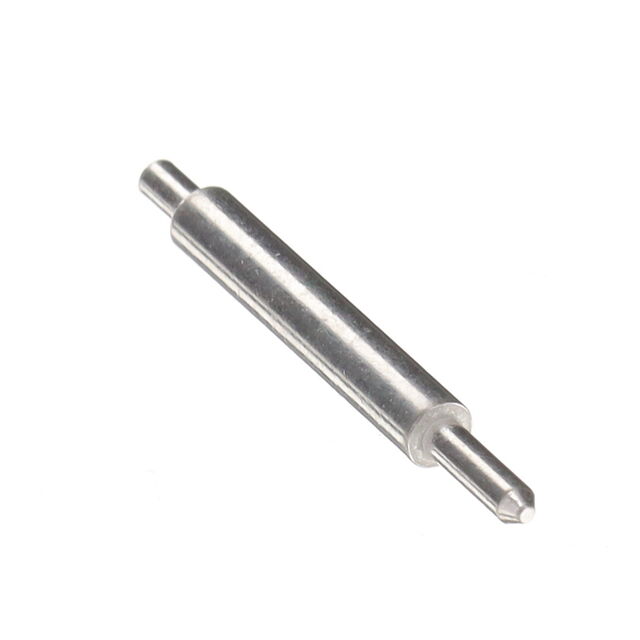

CONN PC PIN CIRC .040DIA TINLEAD
| Part | Contact Material | Length - Overall [x] | Length - Overall [x] | Insulation | Termination | Terminal Style | Board Thickness | Board Thickness | Terminal Type | Length - Above Flange | Length - Above Flange [x] | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 16.56 mm | 0.652 " | Non-Insulated | Swage | Single End | 1.57 mm | 0.062 " | PC Pin | 3.81 mm | 0.15 in | Tin-Lead | 2.08 mm | 0.082 " | 0.071 in | 1.8 mm | Through Hole | 0.04 in | 1.02 mm | 200 Áin | 5.08 Ám | 0.043 in | 1.09 mm |
 Mill-Max Manufacturing Corp. | Brass Alloy | 16.56 mm | 0.652 " | Non-Insulated | Swage | Single End | 1.57 mm | 0.062 " | PC Pin | 3.81 mm | 0.15 in | Tin | 2.08 mm | 0.082 " | 0.071 in | 1.8 mm | Through Hole | 0.04 in | 1.02 mm | 200 Áin | 5.08 Ám | 0.043 in | 1.09 mm |
