UF250 Series

Catalog

IMPELLER 251X98MM 115VAC

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Power (Watts)	Features	Static Pressure	Static Pressure	Voltage - Rated	Noise	Approval Agency	RPM	Air Flow	Air Flow	Bearing Type	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [diameter]	Termination	Weight [custom]	Weight [custom]	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Termination	Weight	Weight	Static Pressure

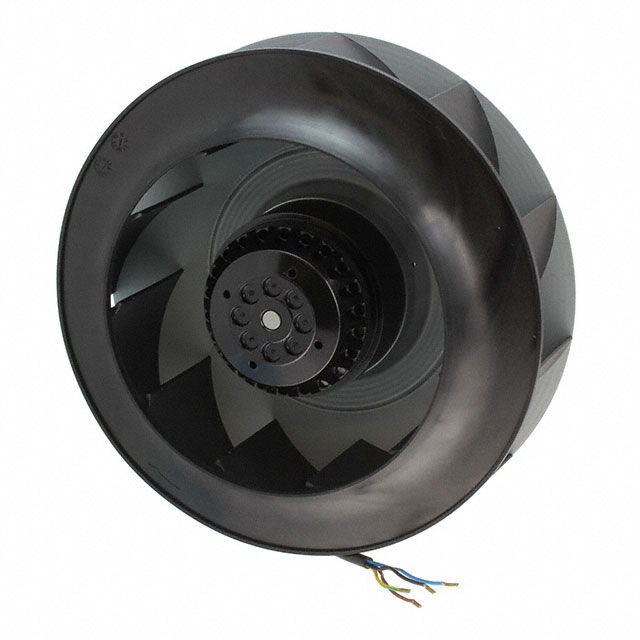

Mechatronics Fan Group UF250APA12-H1C2A	Polyamide (PA) Nylon	Aluminum	2.1 A	240 Watts	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	2.9 in H2O	722.4 Pa	115 VAC	76 dB(A)	CE cUL TUV UL	2700 RPM	850 CFM	23.8 mł/min	Ball	98 mm	-40 C	50 °C	-40 °C	50 °C	Round	251 mm	4 Wire Leads	6.8 lbs	3.1 kg	Motorized Impellers

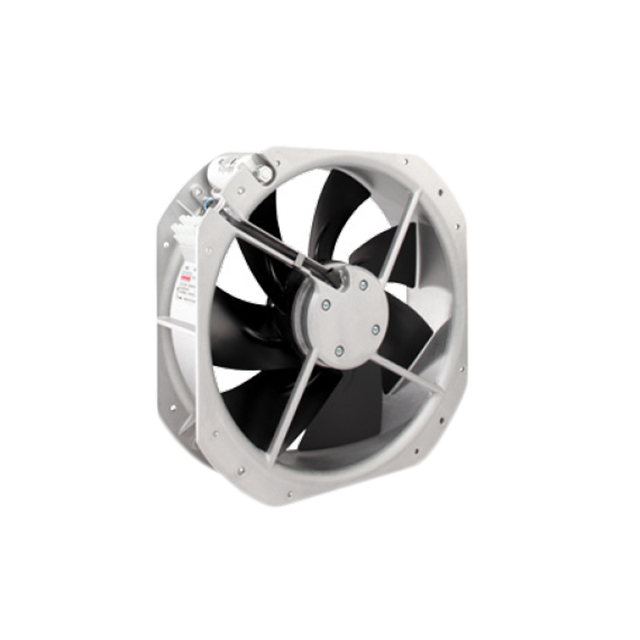

Mechatronics Fan Group UF250BMB12-H1C2A	Metal	Metal	1.5 A	148 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.78 in H2O	194.3 Pa	115 VAC	70 dB(A)	CE cUL TUV UL	2700 RPM	1130 CFM	31.64 m³/min	Ball		-20 ░C	70 °C						6.1 lbs	2.8 kg	Tubeaxial	280 mm	280 mm	80 mm	2

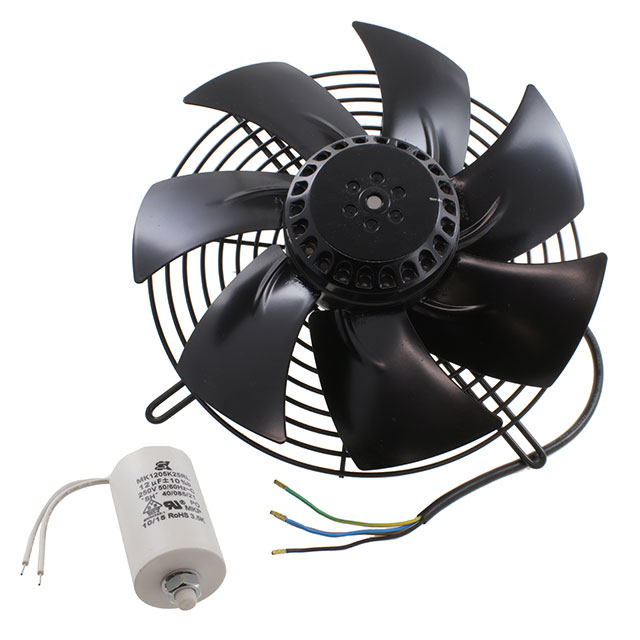

Mechatronics Fan Group UF250BMB12-H1C2B	Metal	Metal	1.9 A	148 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.78 in H2O	194.3 Pa	115 VAC	70 dB(A)	CE cUL TUV UL	2700 RPM	1130 CFM	31.64 m³/min	Ball		-20 ░C	70 °C					2 Wire Leads	6.2 lbs	2.8 kg	Tubeaxial	280 mm	280 mm	80 mm
Mechatronics Fan Group UF250BMB23-H1C2A-B1	Metal	Metal	0.82 A	158 W	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.78 in H2O	194.3 Pa	230 VAC	70 dB(A)	CE cUL TUV UL	2700 RPM	1130 CFM	31.64 m³/min	Ball		-20 ░C	70 °C						6.1 lbs	2.8 kg	Tubeaxial	280 mm	280 mm	80 mm	3 Terminals
Mechatronics Fan Group UF250BMB23-H1C2A	Metal	Metal	0.82 A	158 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.78 in H2O	194.3 Pa	230 VAC	70 dB(A)	CE cUL TUV UL	2700 RPM	1130 CFM	31.64 m³/min	Ball		-20 ░C	70 °C						6.1 lbs	2.8 kg	Tubeaxial	280 mm	280 mm	80 mm	2

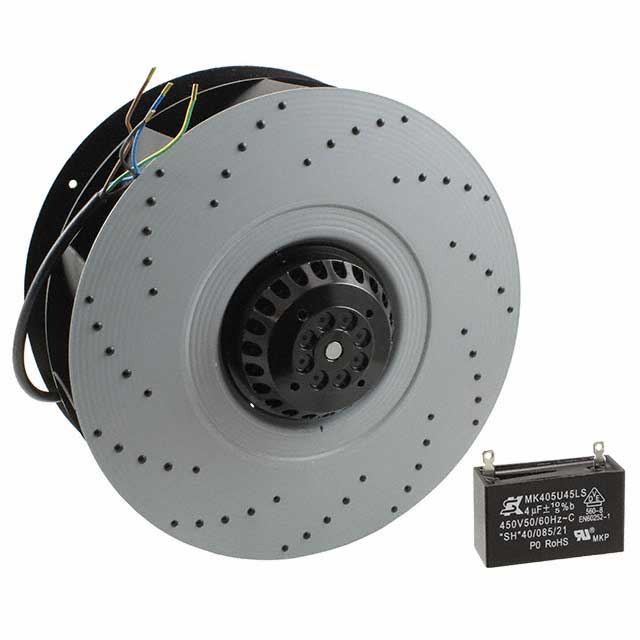

Mechatronics Fan Group UF250APA12-H1C2F	Polyamide (PA) Nylon	Aluminum		240 Watts	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)		3.1 in H2O	115 VAC	72 dB(A)	CE cUL TUV UL	2700 RPM	681 CFM	19.07 m³/min	Ball		-40 C	50 °C	-40 °C	50 °C	Round	259 mm	4 Wire Leads			Motorized Impellers			131 mm		7.2 lbs	3.3 kg	772.2 Pa

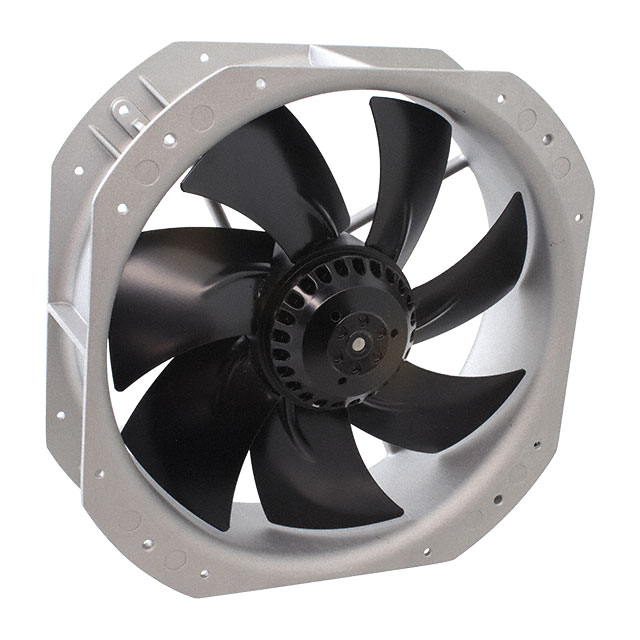

Mechatronics Fan Group UF250BMB12-H2C2A	Metal	Metal			Permanent Split Capacitor Motor Thermal Overload Protector (TOP)			115 VAC		CE cUL TUV UL				Ball		-20 ░C	70 °C						6.2 lbs	2.8 kg	Tubeaxial	280 mm	280 mm	80 mm	2
Mechatronics Fan Group UF250APA23-H1C2F	Polyamide (PA) Nylon	Aluminum	1 A	240 Watts	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)		3.1 in H2O	230 VAC	72 dB(A)	CE cUL TUV UL	2700 RPM	681 CFM	19.07 m³/min	Ball		-40 C	50 °C	-40 °C	50 °C	Round	259 mm	4 Wire Leads			Motorized Impellers			131 mm		7.2 lbs	3.3 kg	772.2 Pa
Mechatronics Fan Group UF250BMB12-H1C2A-B1	Metal	Metal	1.5 A	148 W	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.78 in H2O	194.3 Pa	115 VAC	70 dB(A)	CE cUL TUV UL	2700 RPM	1130 CFM	31.64 m³/min	Ball		-20 ░C	70 °C						6.1 lbs	2.8 kg	Tubeaxial	280 mm	280 mm	80 mm	3 Terminals
Mechatronics Fan Group UF250APA12-H1C4A	Polyamide (PA) Nylon	Aluminum			Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	2.2 in H2O	548 Pa	115 VAC	76 dB(A)	CE cUL TUV UL		770 CFM	21.56 m³/min	Ball		-40 C	50 °C	-40 °C	50 °C	Round	250 mm	4 Wire Leads	6.8 lbs	3.1 kg	Motorized Impellers			98.1 mm
