M2043SS Series
Manufacturer: NKK Switches
Beta
⌘K

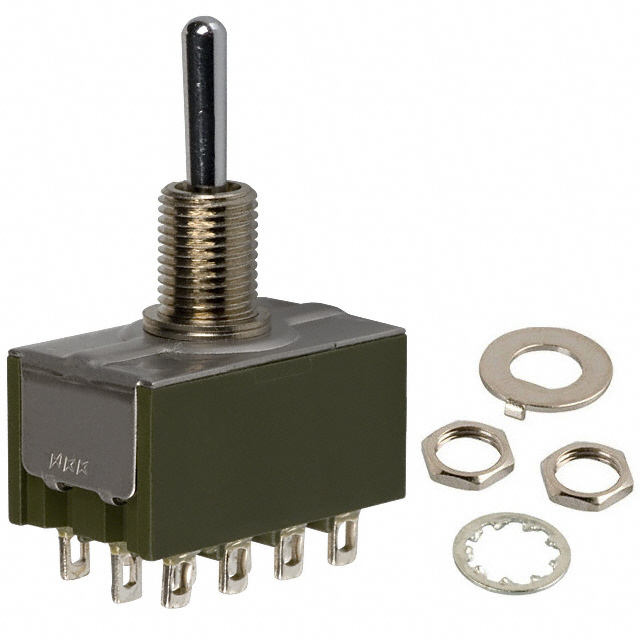

SWITCH TOGGLE 4PDT 6A 125V
| Part | Electrical Life | Actuator Material | Mounting Type | Illumination | Termination Style | Features | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Bushing Thread | Circuit | Switch Function | Actuator Type | Voltage Rating - DC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | Non-Illuminated | Solder Lug | Epoxy Sealed Terminals | 6.5 mm | 85 °C | -30 ░C | 125 V | 1/4-40 | 4PDT | On-Off-On | Standard Round | 30 V | 3 A 6 A |
