1735042 Series

Catalog

CONN FFC FPC VERT 4POS 1MM SMD

Part	Housing Color	Flat Flex Type	Termination	Cable End Type	Contact Finish	Housing Material	FFC, FCB Thickness	Connector/Contact Type	Contact Material	Number of Positions	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Pitch	Pitch

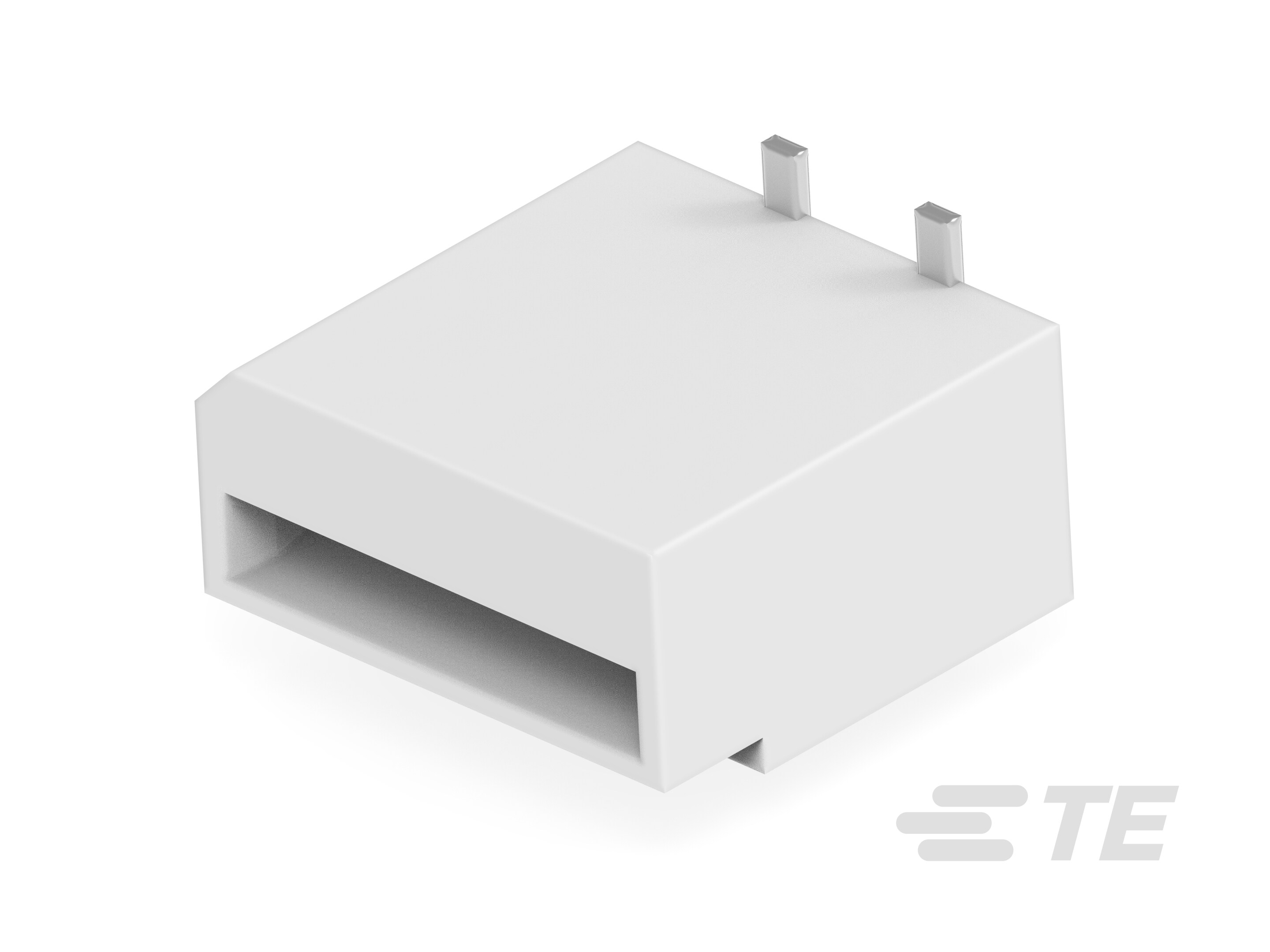

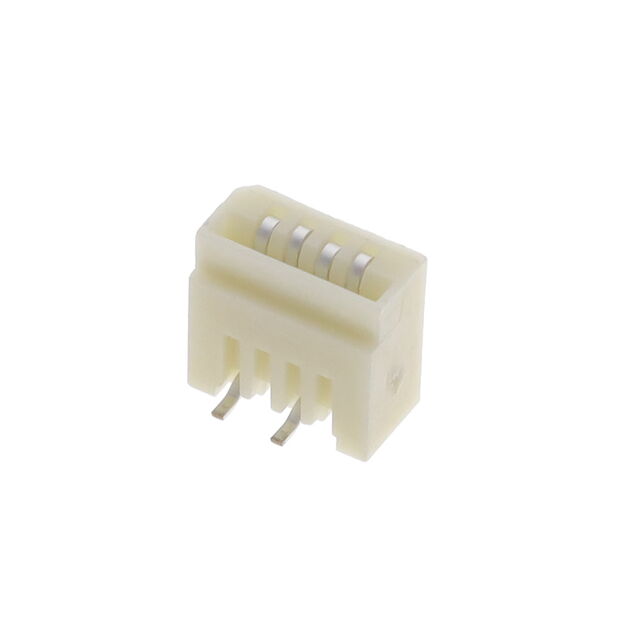

TE Connectivity AMP Connectors 1735042-4	Beige	FFC FPC	Solder	Straight	Tin	Glass Filled Nylon Polyamide (PA)	0.3 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	4	0.22 in	5.59 mm	85 °C	-20 ░C	125 VDC	Surface Mount	1 mm	0.039 in

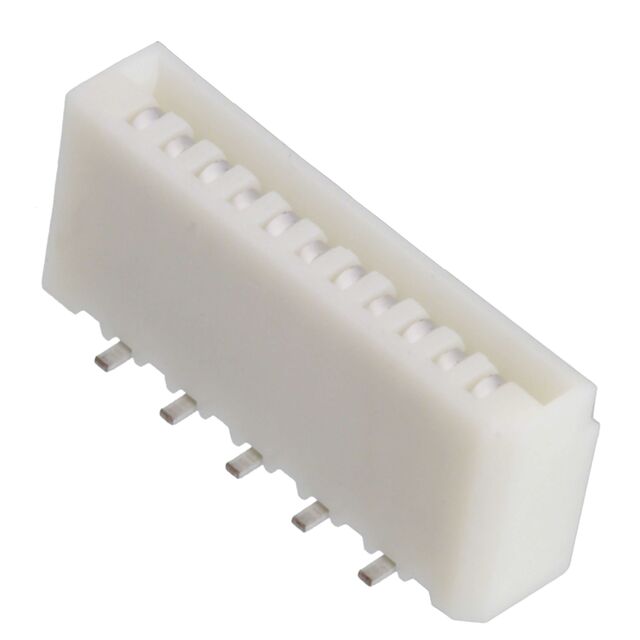

TE Connectivity AMP Connectors 1-1735042-1	Beige	FFC FPC	Solder	Straight	Tin	Glass Filled Nylon Polyamide (PA)	0.3 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	11	0.22 in	5.59 mm	85 °C	-20 ░C	125 VDC	Surface Mount	1 mm	0.039 in

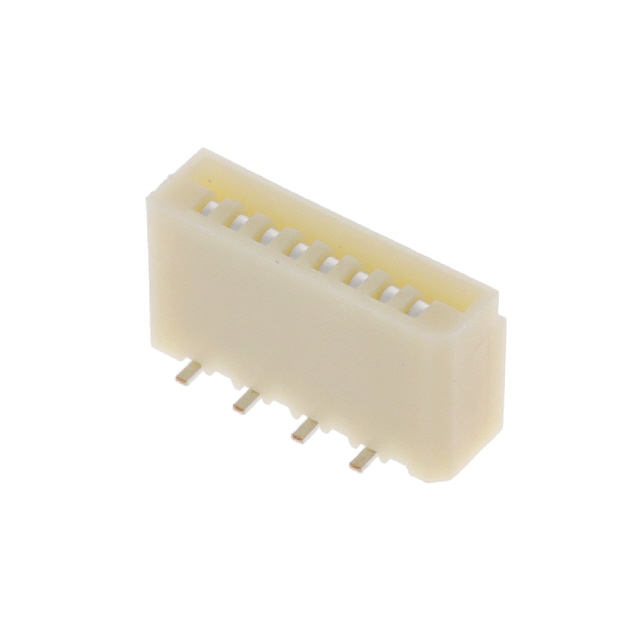

TE Connectivity AMP Connectors 1735042-8	Beige	FFC FPC	Solder	Straight	Tin	Glass Filled Nylon Polyamide (PA)	0.3 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	8	0.22 in	5.59 mm	85 °C	-20 ░C	125 VDC	Surface Mount	1 mm	0.039 in

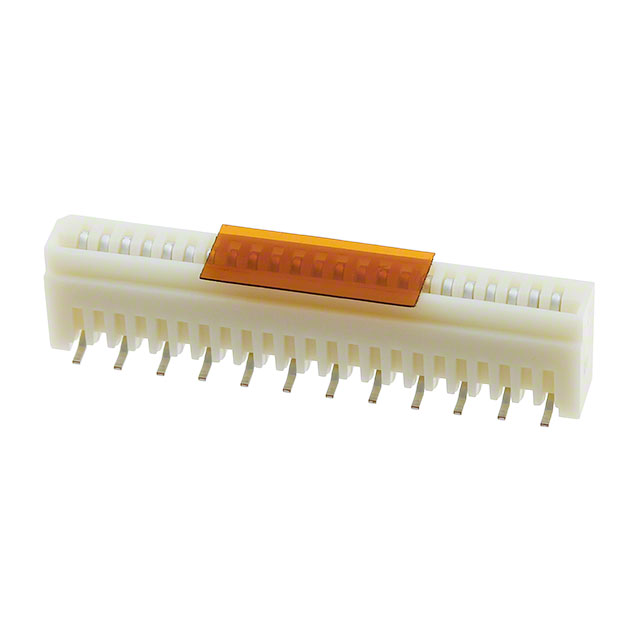

TE Connectivity AMP Connectors 2-1735042-3	Beige	FFC FPC	Solder	Straight	Tin	Glass Filled Nylon Polyamide (PA)	0.3 mm	Contacts Vertical - 1 Sided	Phosphor Bronze	23	0.22 in	5.59 mm	85 °C	-20 ░C	125 VDC	Surface Mount	1 mm	0.039 in
