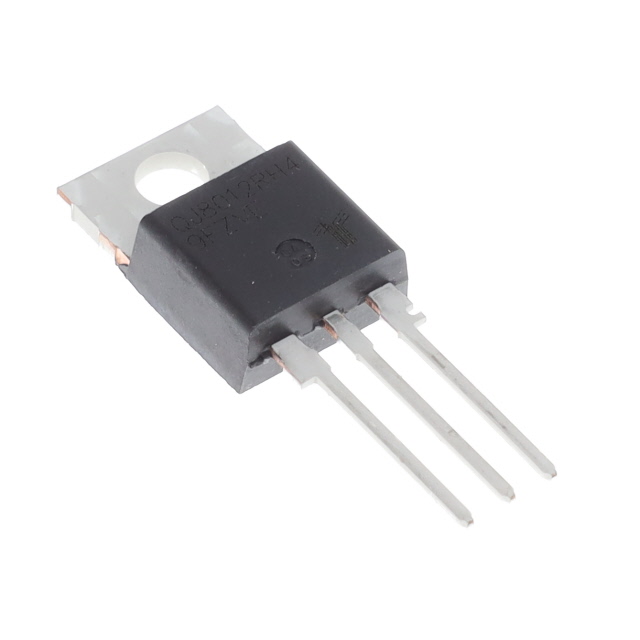

QJ8012RH4TP Series

HT Alternistor 800V 12A TO220R

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

HT Alternistor 800V 12A TO220R

Part	Configuration	Mounting Type	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Triac Type	Current - On State (It (RMS)) (Max)	Package / Case
Littelfuse/Commercial Vehicle Products QJ8012NH5RP	Single	Surface Mount	TO-263AB (D2PAK)	40 mA	150 °C	-40 °C	35 mA	110 A	120 A	800 V	1.3 V	Alternistor - Snubberless	12 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Littelfuse/Commercial Vehicle Products QJ8012LH5TP	Single	Through Hole	ITO-220AB	40 mA	150 °C	-40 °C	35 mA	110 A	120 A	800 V	1.3 V	Alternistor - Snubberless	12 A	TO-220-3 Full Pack Isolated Tab
Littelfuse/Commercial Vehicle Products QJ8012RH4TP	Single	Through Hole	TO-220AB	40 mA	150 °C	-40 °C	35 mA	110 A	120 A	800 V	1.3 V	Alternistor - Snubberless	12 A	TO-220-3

Catalog

HT Alternistor 800V 12A TO220R

Key Features

• 150C High Junction Temperature with Glass passivated.

• Surge capability up to 120 A

• The L-package has an isolation rating of 2500VRMS

• Solid-state switching eliminates arcing or contact bounce that create voltage transients

• No contacts to wear out from reaction of switching events

• Requires only a small gate activation pulse in each half-cycle

• RoHS Compliant

Description

This 12A high temperature Alternistor TRIAC, offered in TO-220AB, TO-220 isolated and TO-263 package, has 150°C maximum junction temperature and 120A ITSM(60Hz). This series enables easier thermal management and higher surge handling capability in AC power control applications such as heater control, motor speed control, lighting controls, and static switching relays. Alternistor TRIAC operates in quadrants I, II, & III and offers high performance in applications requiring high commutation capability.
