SMM6-12 Series

Manufacturer: CUI Inc.

Catalog

PLUG-IN ADAPTER SINGLE-OUT 12V 0.5A 6W BOX

Part	Form	Efficiency	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Voltage - Output	No Load Power Consumption	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Max]	Input Connector	Applications	Region Utilized	Cord Length	Cord Length	Polarization	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]	Weight	Weight

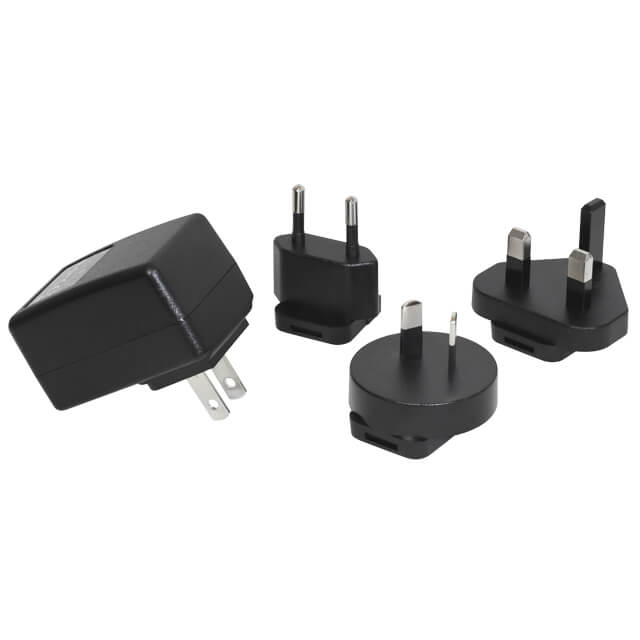

CUI Inc. SMM6-12-V-P5	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in	Positive Center
CUI Inc. SMM6-12-V-P5R	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug R/A			40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in	Positive Center	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SMM6-12-V-P6R	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug R/A	2.5 mm 5.5 mm		40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in	Positive Center				9.5 mm
CUI Inc. SMM6-12-4-P5	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in	Positive Center
CUI Inc. SMM6-12-4-P7	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug	1.35 mm 3.5 mm	9.5 mm	40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in	Positive Center
CUI Inc. SMM6-12-4-MUB	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	USB Micro			40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in
CUI Inc. SMM6-12-4-P6	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	40 °C	Multi-Blade (Included)	Medical	International	1.5 m	59 in	Positive Center

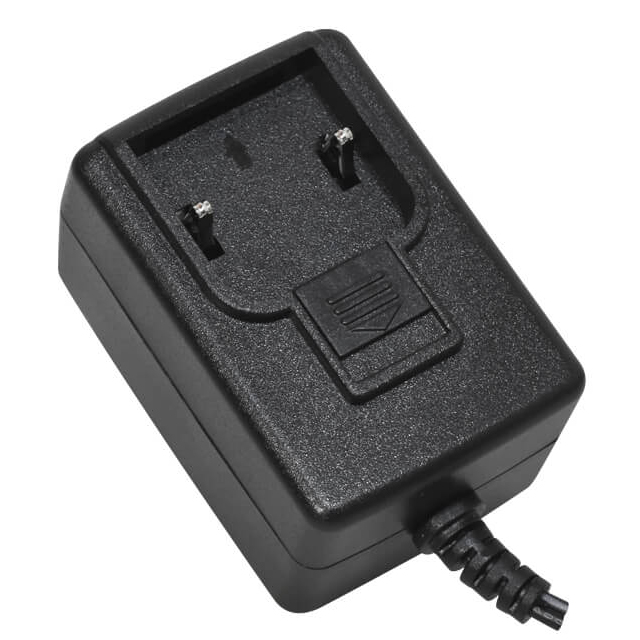

CUI Inc. SMM6-12-K-P7	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Sold Separately)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug	1.35 mm 3.5 mm	9.5 mm	40 °C	Multi-Blade	Medical	International	1.5 m	59 in	Positive Center
CUI Inc. SMM6-12-K-MUB	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Sold Separately)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	USB Micro			40 °C	Multi-Blade	Medical	International	1.5 m	59 in
CUI Inc. SMM6-12-K-P5	Wall Mount	Level VI	500 mA	264 VAC	90 VAC	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Sold Separately)	12 V	100 mW	CB Scheme CSA EN FCC IEC UL	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Multi-Blade	Medical	International	1.5 m	59 in	Positive Center					70.31 g	0.155 lb
