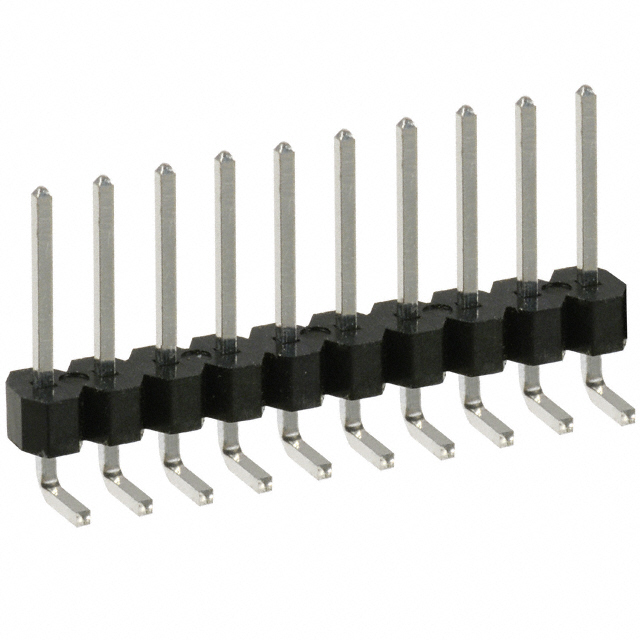

PEC10 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Contact Material	Number of Positions	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Style	Shrouding	Number of Rows	Insulation Material	Contact Type	Fastening Type	Material Flammability Rating	Mounting Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Contact Length - Post [custom]

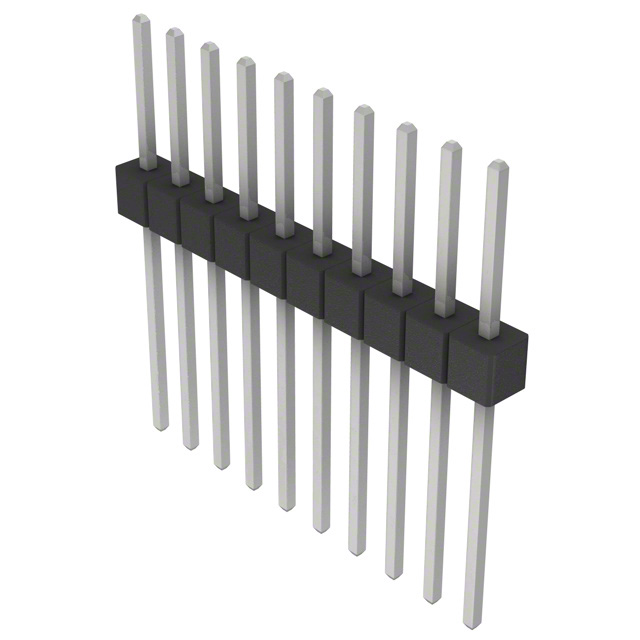

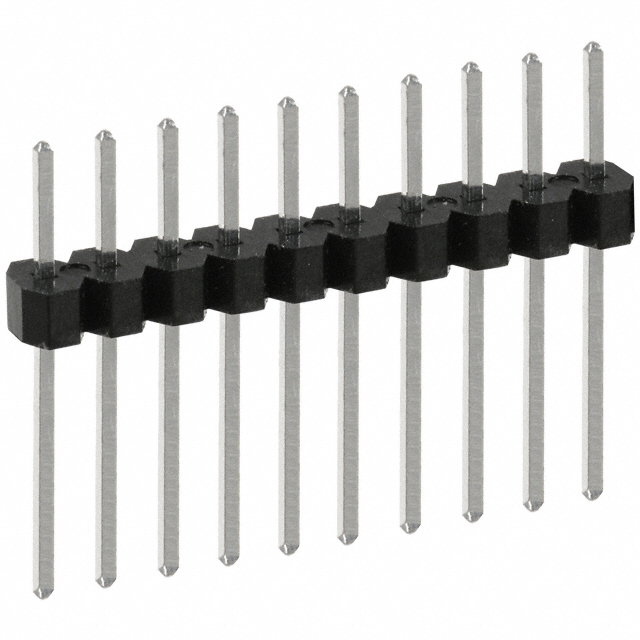

Sullins Connector Solutions PEC10SFEN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	10	3 A	Tin	Black	Board to Board Cable	Unshrouded	1	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	8.08 mm	0.318 in	0.52 in	13.21 mm	Header Breakaway	-65 ░C	125 °C	23.83 mm	0.938 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm

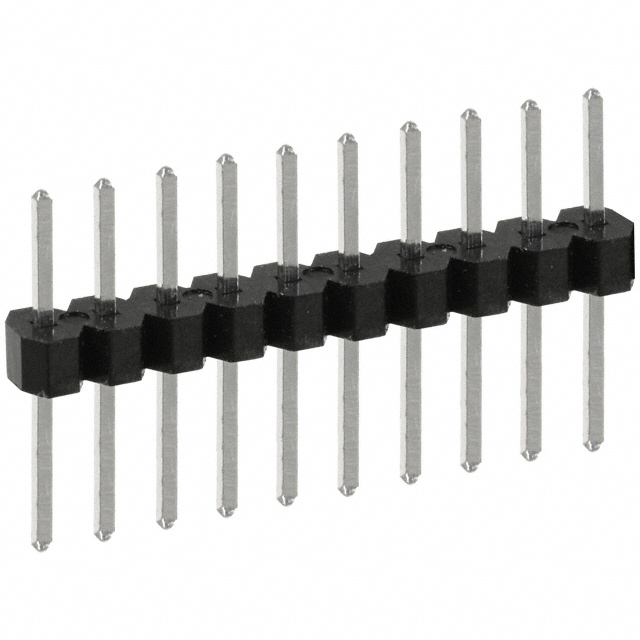

Sullins Connector Solutions PEC10SACN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	10	3 A	Tin	Black	Board to Board Cable	Unshrouded	1	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	5.84 mm	0.23 in	0.32 in	8.13 mm	Header Breakaway	-65 ░C	125 °C	16.51 mm	0.65 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm
Sullins Connector Solutions PEC10DBAN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	20	3 A	Tin	Black	Board to Board Cable	Unshrouded		Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Right Angle Through Hole	Square	5.84 mm	0.23 in	0.1 in	2.54 mm	Header Breakaway	-65 ░C	125 °C			0.1 "	2.54 mm	100 çin	2.54 çm			6.1 mm	0.24 in	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC10DFCN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	20	3 A	Tin	Black	Board to Board Cable	Unshrouded		Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	8.08 mm	0.318 in	0.32 in	8.13 mm	Header Breakaway	-65 ░C	125 °C	18.75 mm		0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm			0.1 in	2.54 mm	2	0.738 in

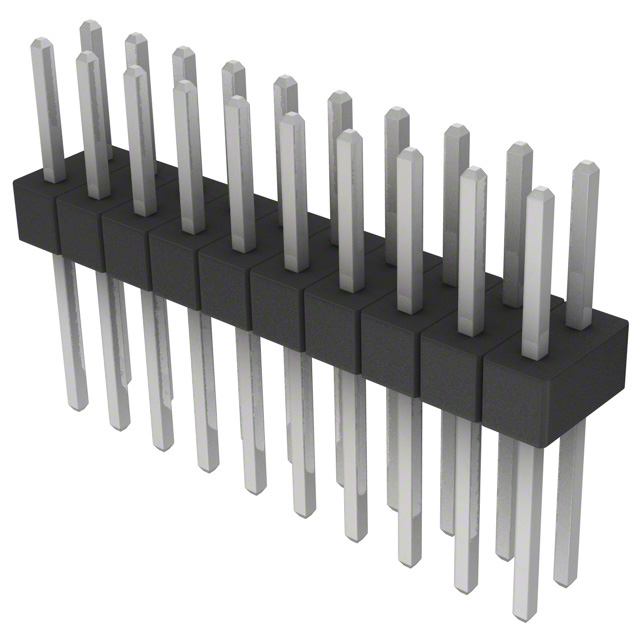

Sullins Connector Solutions PEC10DACN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	20	3 A	Tin	Black	Board to Board Cable	Unshrouded		Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	5.84 mm	0.23 in	0.32 in	8.13 mm	Header Breakaway	-65 ░C	125 °C	16.51 mm	0.65 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm			0.1 in	2.54 mm	2
Sullins Connector Solutions PEC10DAAN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	20	3 A	Tin	Black	Board to Board Cable	Unshrouded		Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	5.84 mm	0.23 in	0.12 in	3.05 mm	Header Breakaway	-65 ░C	125 °C			0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm			0.1 in	2.54 mm	2		11.43 mm	0.45 in
Sullins Connector Solutions PEC10DAEN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	20	3 A	Tin	Black	Board to Board Cable	Unshrouded		Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	5.84 mm	0.23 in	0.52 in	13.21 mm	Header Breakaway	-65 ░C	125 °C	21.59 mm	0.85 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm			0.1 in	2.54 mm	2
Sullins Connector Solutions PEC10DBEN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	20	3 A	Tin	Black	Board to Board Cable	Unshrouded		Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Right Angle Through Hole	Square	5.84 mm	0.23 in	0.5 "	12.7 mm	Header Breakaway	-65 ░C	125 °C			0.1 "	2.54 mm	100 çin	2.54 çm			6.1 mm	0.24 in	0.1 in	2.54 mm	2

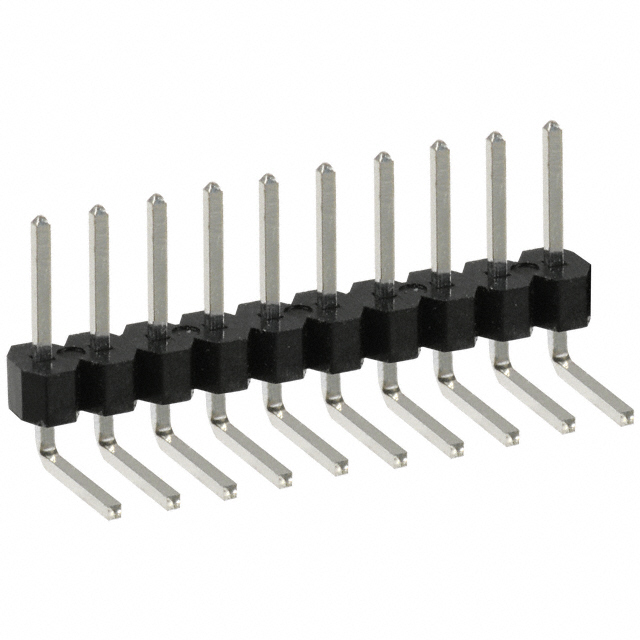

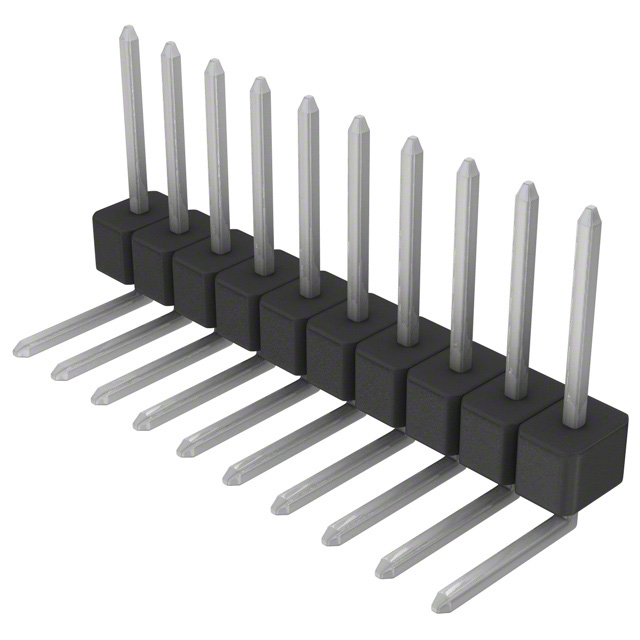

Sullins Connector Solutions PEC10SBBN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	10	3 A	Tin	Black	Board to Board Cable	Unshrouded	1	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Right Angle Through Hole	Square	5.84 mm	0.23 in			Header Breakaway	-65 ░C	125 °C			0.1 "	2.54 mm	100 çin	2.54 çm	0.14 in	3.56 mm									5.08 mm	0.2 "
Sullins Connector Solutions PEC10SAAN	2.54 µm	100 µin	All	Solder	Phosphor Bronze	10	3 A	Tin	Black	Board to Board Cable	Unshrouded	1	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	UL94 V-0	Through Hole	Square	5.84 mm	0.23 in	0.12 in	3.05 mm	Header Breakaway	-65 ░C	125 °C			0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm							11.43 mm	0.45 in
