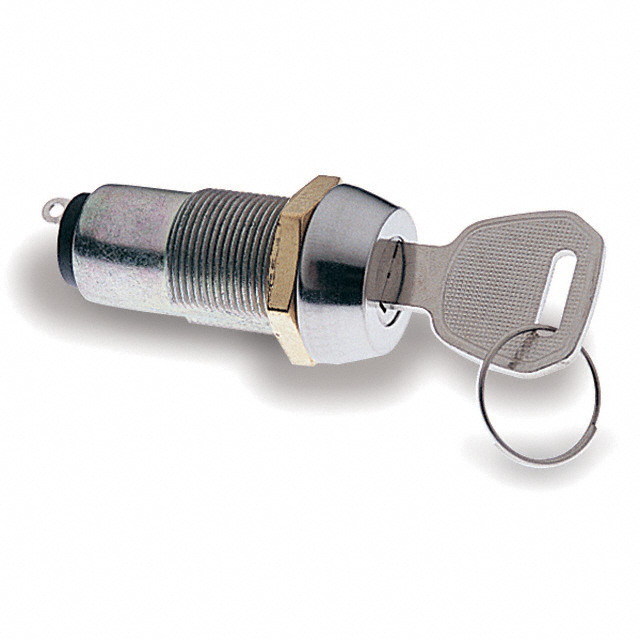

KO119 Series

Manufacturer: E-Switch

Catalog

SWITCH KEYLOCK 2POS SPST 4A 125V

Part	Depth Behind Flange	Termination Style	Voltage Rating - AC	Contact Finish	Mounting Type	Switch Function	Angle of Throw	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Number of Positions	Contact Timing	Contact Material	Circuit	Key Removable Positions	Key Removable Positions
E-Switch KO119A7324	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7307	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119B7325	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST		All
E-Switch KO119A7306	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7301	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7304	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7323	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7316	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7319	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
E-Switch KO119A7312	41.5 mm	Solder Lug	125 V	Silver	Panel Mount	Off-On	90 °	4 A	Flat Key	19 mm	2	Not Specified	Copper Alloy	SPST	1
