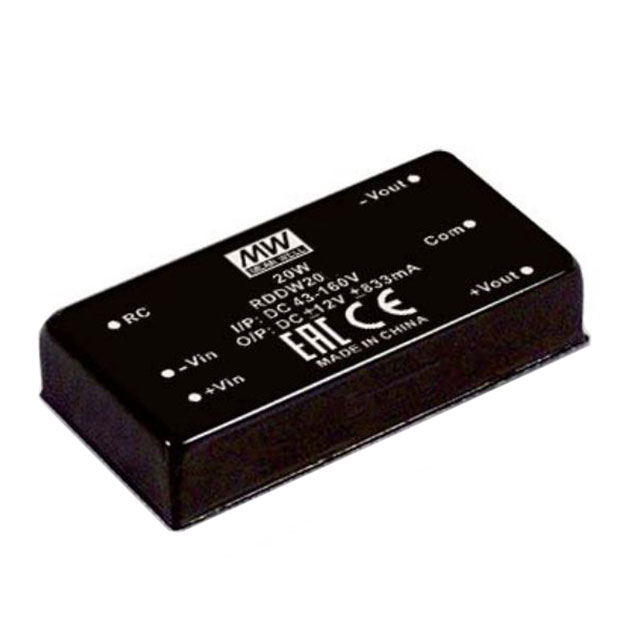

RDDW20F Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER
| Part | Number of Outputs | Package / Case | Voltage - Input (Min) [Min] | Type | Size / Dimension | Features | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 2 | Approval Agency | Voltage - Output 1 | Efficiency | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) | Mounting Type | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 2 | 6-DIP Module | 9 V | Isolated Module | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Adjustable Output Remote On/Off | 36 V | 20 W | -15 V | CE EAC UKCA | 15 V | 88 % | 1.5 kV | -40 °C | 85 °C | 666 mA | Through Hole | |
MEAN WELL USA Inc. | 2 | 6-DIP Module | 9 V | Isolated Module | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Adjustable Output Remote On/Off | 36 V | 20 W | -5 V | CE EAC UKCA | 5 V | 89 % | 1.5 kV | -40 °C | 85 °C | Through Hole | 2 A |
