OD1-B035 Series

Catalog

SEN DISP SS 4-20MA 1Q 5P M12 CBL

Part	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Mounting Type	Installation Distance [Max]	Installation Distance [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type
SICK, Inc. 6050504	IP67 - Dust Tight Waterproof	24 V	12 VDC	Cable with Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
SICK, Inc. OD1-B035C15Q15	IP67 - Dust Tight Waterproof	24 V	12 VDC	Cable with Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
SICK, Inc. 6050505	IP67 - Dust Tight Waterproof	24 V	12 VDC	Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
SICK, Inc. 6050506	IP67 - Dust Tight Waterproof	24 V	12 VDC	Cable with Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
SICK, Inc. 6052308	IP67 - Dust Tight Waterproof	24 V	12 VDC	Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
SICK, Inc. 6054083	IP67 - Dust Tight Waterproof	24 V	12 VDC	Cable with Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
SICK, Inc. OD1-B035H15I14	IP67 - Dust Tight Waterproof	24 V	12 VDC	Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor

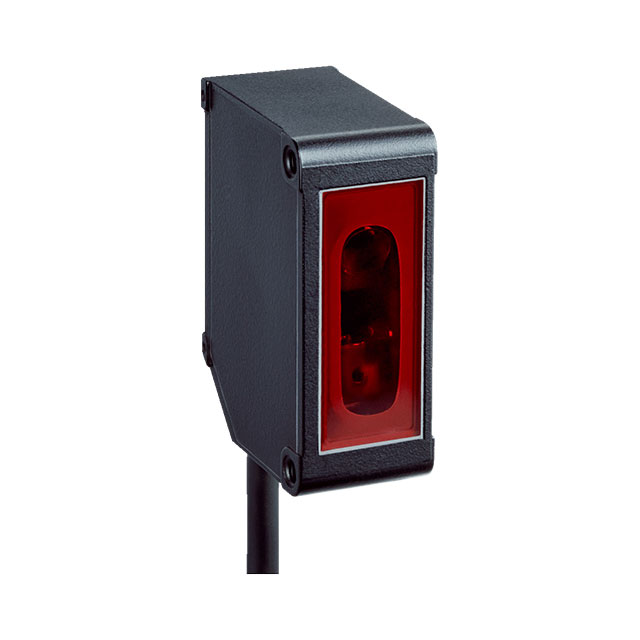

SICK, Inc. OD1-B035C15I25	IP67 - Dust Tight Waterproof	24 V	12 VDC	Cable with Connector	Chassis Mount	50 mm	20 mm	40 °C	-10 °C	2D Laser Displacement Sensor
