EAST3215 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED BLUE CLEAR 2SMD

Part	Color	Wavelength - Peak	Lens Transparency	Lens Style	Wavelength - Dominant	Lens Color	Lens Size [y]	Lens Size [x]	Height (Max) [z]	Package / Case	Configuration	Millicandela Rating	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Typ)
Everlight Electronics Co Ltd EAST3215BA3	Blue	468 nm	Clear	Rectangle with Flat Top	470 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	106 mcd	130 °	3.2 mm	1.5 mm	20 mA	2-SMD	Surface Mount	3 V
Everlight Electronics Co Ltd EAST3215RA7	Red	632 nm	Clear	Rectangle with Flat Top	626 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	40 mcd	140 °	3.2 mm	1.5 mm	5 mA	2-SMD	Surface Mount	2 V
Everlight Electronics Co Ltd EAST3215YA4-AM	Yellow	591 nm	Clear	Rectangle with Flat Top	590 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	268 mcd	130 °	3.2 mm	1.5 mm	20 mA	2-SMD	Surface Mount	2.05 V
Everlight Electronics Co Ltd EAST3215BA5	Blue	468 nm	Clear	Rectangle with Flat Top	471 nm	Clear Colorless	1.5 mm	2 mm	1.1 mm	2-SMD No Lead	Standard	79 mcd	130 °	3.2 mm	1.5 mm	20 mA		Surface Mount	3.3 V

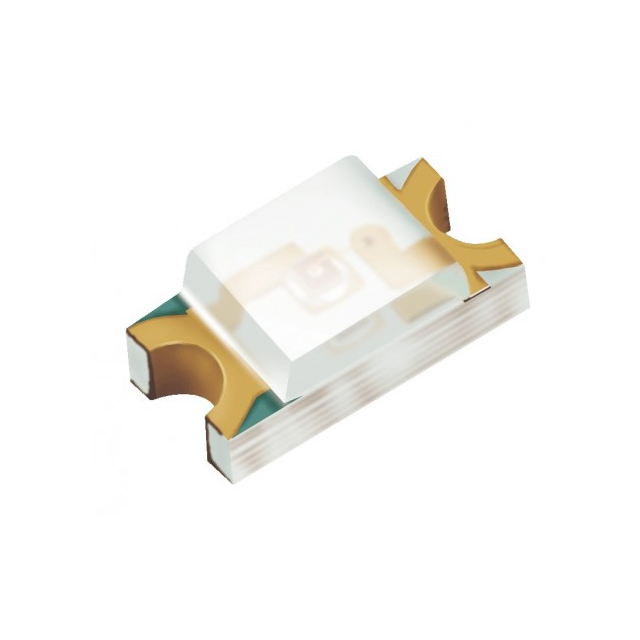

Everlight Electronics Co Ltd EAST3215YA1	Yellow	591 nm	Clear	Rectangle with Flat Top	589 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	79 mcd	130 °	3.2 mm	1.5 mm	20 mA	2-SMD	Surface Mount	2.05 V

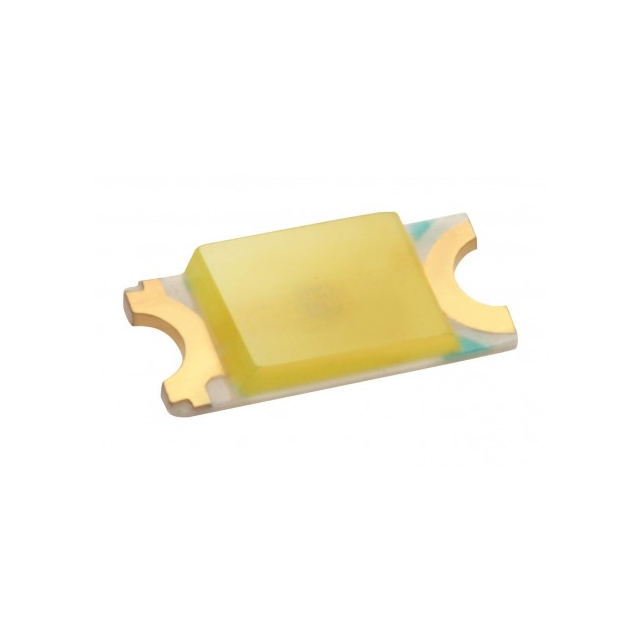

Everlight Electronics Co Ltd EAST3215WA2	White		Diffused	Rectangle with Flat Top		Yellow	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	158 mcd	140 °	3.2 mm	1.5 mm	5 mA	2-SMD	Surface Mount	3 V
Everlight Electronics Co Ltd EAST3215AA1		611 nm	Clear	Rectangle with Flat Top	606.5 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Independent	135 mcd	130 °	3.2 mm	1.5 mm	20 mA	1206	Surface Mount	2.05 V
Everlight Electronics Co Ltd EAST3215RA1	Red	632 nm	Clear	Rectangle with Flat Top	626 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	106 mcd	130 °	3.2 mm	1.5 mm	20 mA	2-SMD	Surface Mount	2.05 V
Everlight Electronics Co Ltd EAST3215YA0	Yellow	591 nm	Clear	Rectangle with Flat Top	590 nm	Colorless	1.5 mm	2 mm	1.1 mm	1206 (3216 Metric)	Standard	50 mcd	130 °	3.2 mm	1.5 mm	20 mA	2-SMD	Surface Mount	2 V
