FDBL9406-F085T6 Series

Automotive MOSFET, N-Channel, Logic Level, 40 V, 240 A, 1.1 mΩ

Catalog

Automotive MOSFET, N-Channel, Logic Level, 40 V, 240 A, 1.1 mΩ

Part	Rds On (Max) @ Id, Vgs	Qualification	Grade	Supplier Device Package	FET Type	Technology	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]

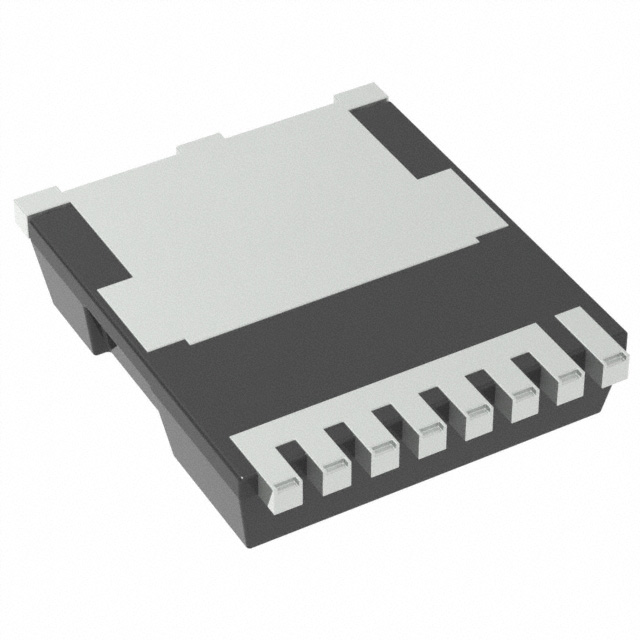

ON Semiconductor FDBL9406L-F085	1.1 mOhm	AEC-Q101	Automotive	8-HPSOF	N-Channel	MOSFET (Metal Oxide)	40 V	43 A 240 A	8-PowerSFN	4.5 V 10 V	8600 pF	Surface Mount	121 nC	20 V	3.5 W 300 W	3 V	-55 °C	175 ░C
ON Semiconductor FDBL9406-F085T6	1.21 mOhm	AEC-Q101	Automotive	8-HPSOF	N-Channel	MOSFET (Metal Oxide)	40 V	45 A 240 A	8-PowerSFN		4960 pF	Surface Mount		-16 V 20 V		3.5 V	-55 °C	175 ░C	4.3 W	136.4 W	75 nC

Catalog

Automotive MOSFET, N-Channel, Logic Level, 40 V, 240 A, 1.1 mΩ

Key Features

• Typical Qg(tot)= 121 nC at VGS= 10V, ID= 80 A

• UIS Capability

• Small Footprint (TOLL) for Compact Design

• Low RDS(on) to Minimize Conduction Losses

• Low QG and Capacitance to Minimize Driver Losses

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant

Description

Automotive N-Channel Logic Level PowerTrench® MOSFET for automotive engine control, power-train management, solenoid and motor drivers, integrated starters / alternators, primary switch for 12-V systems.
