212528 Series

Micro-Fit+ Versa Color Right-Angle Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Red

Manufacturer: Molex

Catalog

Micro-Fit+ Versa Color Right-Angle Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Red

Part	Connector Type	Material Flammability Rating	Contact Material	Shrouding	Voltage Rating	Current Rating (Amps)	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Mounting Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Style	Number of Positions Loaded	Contact Type	Number of Positions	Contact Finish - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Height [z]	Insulation Height [z]	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions

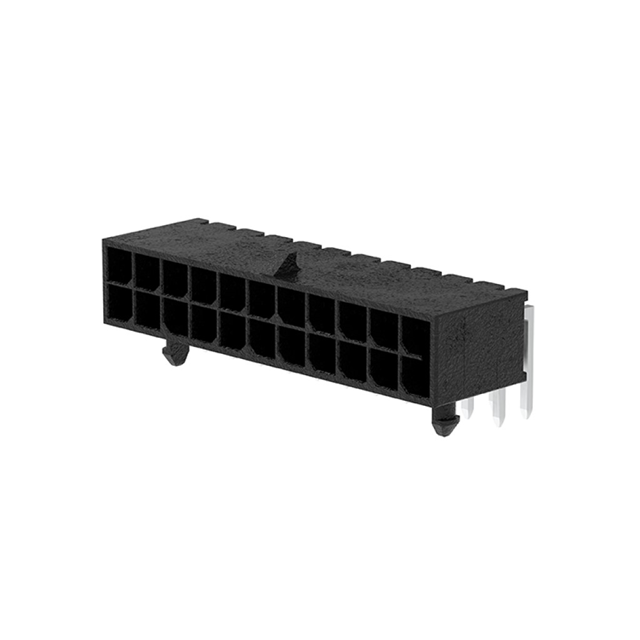

Molex 2125282200	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	22 positions	Tin	Black	-40 °C	105 ░C	Solder
Molex 2125280620	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle			0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	6	Tin	Black	-40 °C	105 ░C	Solder	0.346 in	8.8 mm	Board Guide
Molex 2125282000	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	20	Tin	Black	-40 °C	105 ░C	Solder
Molex 2125280842	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle			0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	8	Tin	Black	-40 °C	105 ░C	Solder	0.346 in	8.8 mm		30 Áin	0.76 Ám	Gold

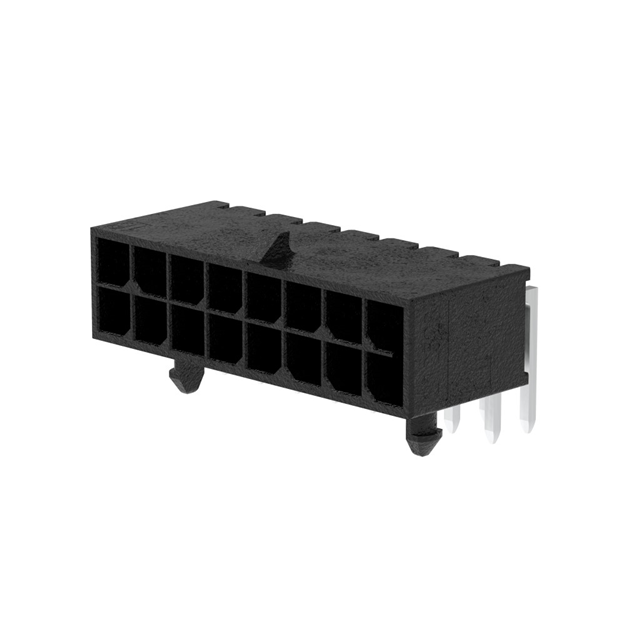

Molex 2125281600	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin		Tin	Black	-40 °C	105 ░C	Solder							16
Molex 2125281800	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	18	Tin	Black	-40 °C	105 ░C	Solder

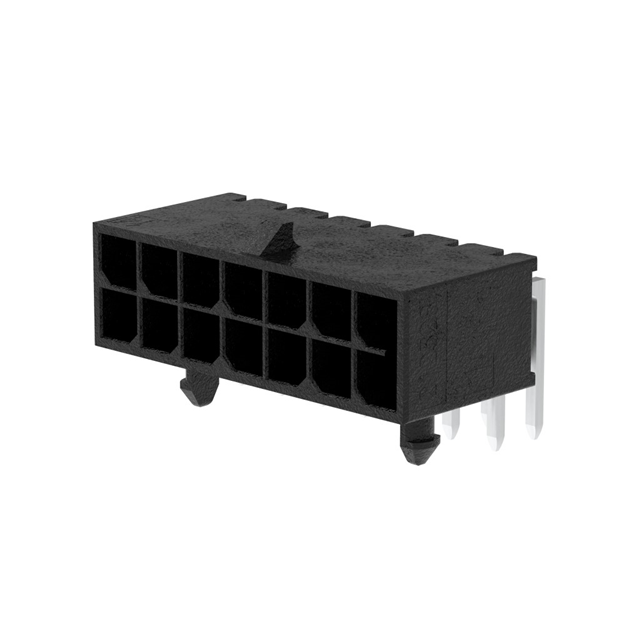

Molex 2125281401	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	14	Tin	Black	-40 °C	105 ░C	Solder				15 µin	0.38 µm	Gold
Molex 2125281601	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin		Tin	Black	-40 °C	105 ░C	Solder				15 µin	0.38 µm	Gold	16

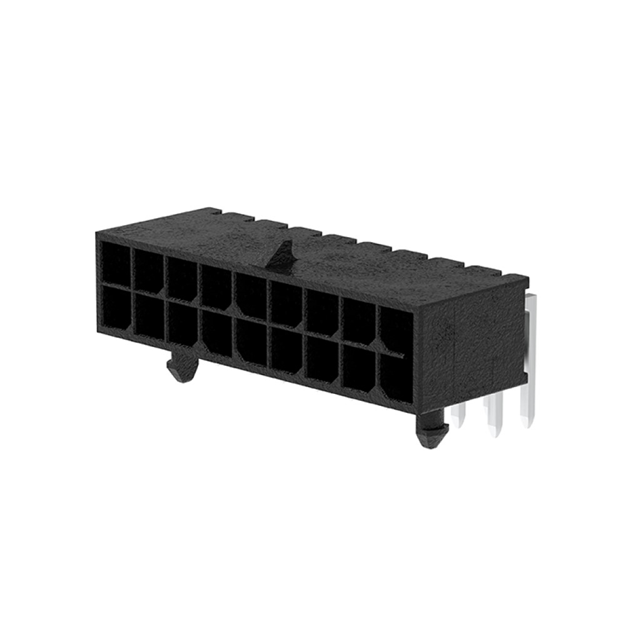

Molex 2125281801	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle	7.4 mm	0.291 in	0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	18	Tin	Black	-40 °C	105 ░C	Solder				15 µin	0.38 µm	Gold
Molex 2125280440	Header	UL94 V-0	Copper Alloy	Shrouded - 4 Wall	600 VAC	Varies by Wire Gauge	Locking Ramp	3.18 mm	0.125 in	Square	Through Hole Right Angle			0.118 in	3 mm	3 mm	0.118 in	2	Board to Cable/Wire	All	Male Pin	4	Tin	Black	-40 °C	105 ░C	Solder	0.346 in	8.8 mm	Board Guide
