BPH 0.5 Series

Catalog

AC/DC CONVERTER 8V 3.3V 632MW

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Package / Case	Approval Agency	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Applications	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Mounting Type	Current - Output (Max)
Cita Technologies, LLC. BPH 0.5-08-33	-30 ░C	70 °C	70 %	Enclosed	7-DIP Module	CB cURus	2	375 VAC	100 VAC	632 mW	ITE (Commercial)	53 mA	63 mA	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	8 V	Through Hole

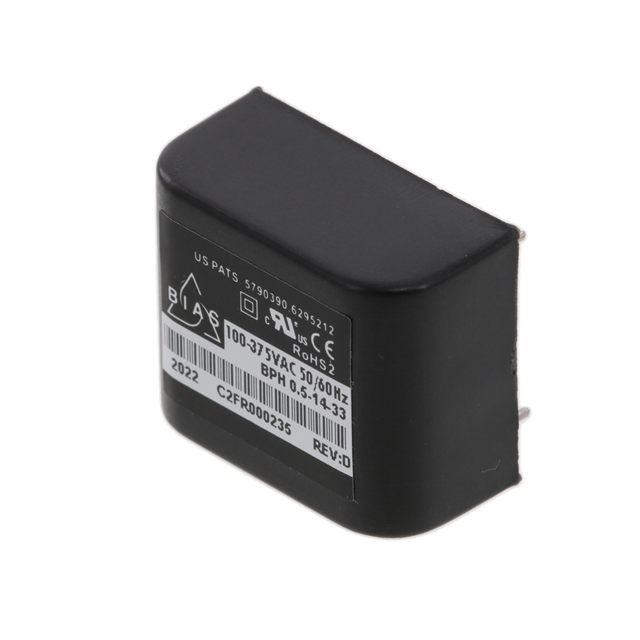

Cita Technologies, LLC. BPH 0.5-14-33	-30 ░C	70 °C	70 %	Enclosed	7-DIP Module	CB cURus	2	375 VAC	100 VAC	441 mW	ITE (Commercial)			0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	14 V	Through Hole	23 mA 36 mA
