9535 Series
Manufacturer: Belden Inc.
Beta
⌘K

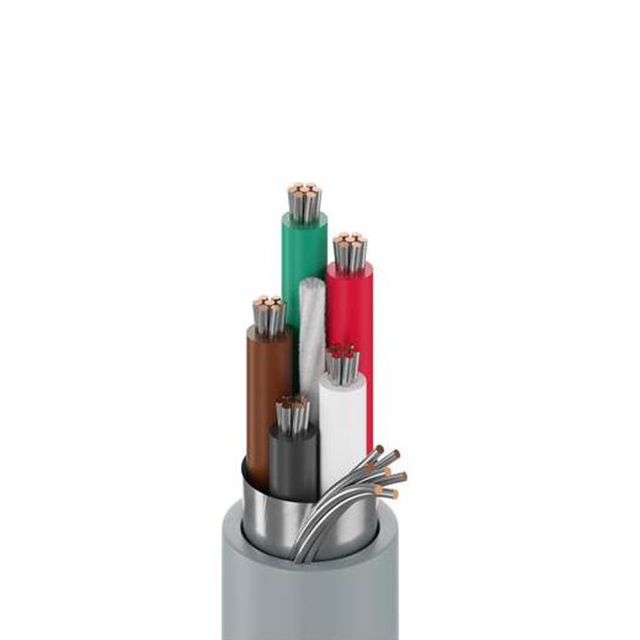

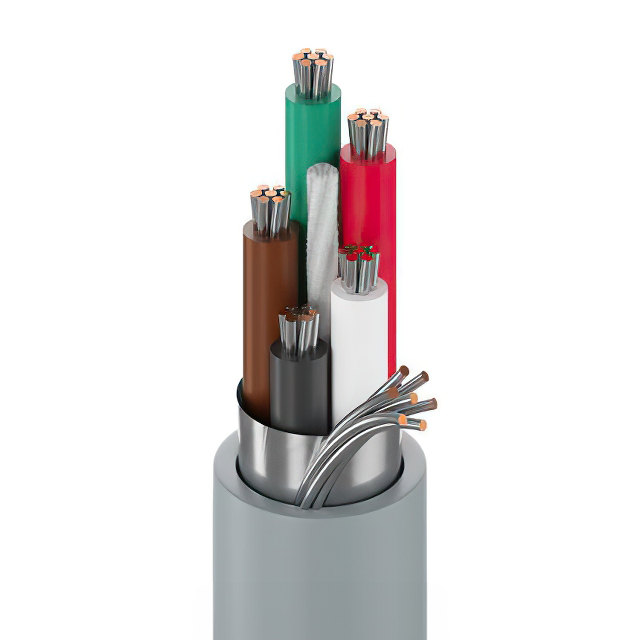

MULTICONDUCTOR CABLE, COMPUTER EIA RS-232, SHIELDED, 5 CONDUCTOR, 24 AWG, 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Conductors | Usage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Shield Type | Length [x] | Length [x] | Conductor Insulation | Length | Length | Voltage | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Chrome | 0.813 mm | 0.032 in | Multi-Conductor | 80 °C | -30 ░C | Drain Wire | 5 | Computer | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.189 in | 4.8 mm | Copper Tinned | Foil | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | ||||
Belden Inc. | Aluminum | 100 % | Chrome | 0.813 mm | 0.032 in | Multi-Conductor | 80 °C | -30 ░C | Drain Wire | 5 | Computer | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.189 in | 4.8 mm | Copper Tinned | Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | ||||
 Belden Inc. | Aluminum | 100 % | Chrome | 0.813 mm | 0.032 in | Multi-Conductor | 80 °C | -30 ░C | Drain Wire | 5 | Computer | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.189 in | 4.8 mm | Copper Tinned | Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 300 VDC | UL Style 2464 | ||
 Belden Inc. | Aluminum | 100 % | Chrome | 0.813 mm | 0.032 in | Multi-Conductor | 80 °C | -30 ░C | Drain Wire | 5 | Computer | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.189 in | 4.8 mm | Copper Tinned | Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 300 VDC | UL Style 2464 | ||
Belden Inc. | Aluminum | 100 % | Chrome | 0.813 mm | 0.032 in | Multi-Conductor | 80 °C | -30 ░C | Drain Wire | 5 | Computer | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.189 in | 4.8 mm | Copper Tinned | Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 300 VDC | UL Style 2464 | ||
Belden Inc. | Aluminum | 100 % | Chrome | 0.813 mm | 0.032 in | Multi-Conductor | 80 °C | -30 ░C | Drain Wire | 5 | Computer | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.189 in | 4.8 mm | Copper Tinned | Foil | Poly-Vinyl Chloride (PVC) | 300 VDC | UL Style 2464 |
