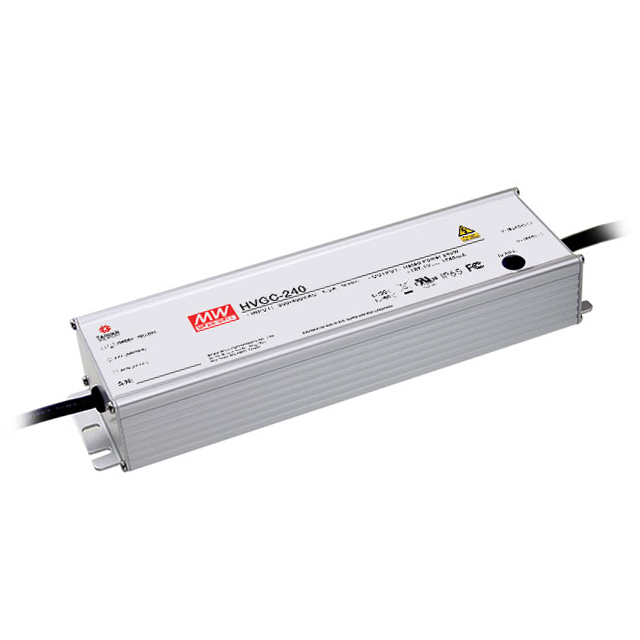

HVGC-240 Series

Catalog

LED DVR CC AC/DC 34.3-68.6V 3.5A

Part	Mounting Type	Voltage - Isolation	Topology	Termination Style	Power (Watts)	Voltage - Input (Min) [Min]	Type	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Efficiency	Number of Outputs	Approval Agency	Standard Number
MEAN WELL USA Inc. HVGC-240-3500B	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	68.6 V	34.3 V	528 VAC	3.5 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP67	92.5 %	1
MEAN WELL USA Inc. HVGC-240-1050B	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	228.6 V	114.3 V	528 VAC	1.05 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP67	93 %	1
MEAN WELL USA Inc. HVGC-240-3500AB	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	228.6 V	114.3 V	528 VAC	1.05 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP65	92.5 %	1	cURus FCC	UL 8750
MEAN WELL USA Inc. HVGC-240-1400AB	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	171.4 V	85.7 V	528 VAC	1.4 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP67	93 %	1	cURus FCC
MEAN WELL USA Inc. HVGC-240-2800B	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	85.7 V	42.9 V	528 VAC	2.8 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP67	92.5 %	1
MEAN WELL USA Inc. HVGC-240-700B	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	342.8 V	171.4 V	528 VAC	700 mA	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP67	93.5 %	1
MEAN WELL USA Inc. HVGC-240-1750A	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	137.1 V	68.5 V	528 VAC	1.75 A	OTP OVP SCP	90 °C	-40 C		1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP65	93 %	1
MEAN WELL USA Inc. HVGC-240-2800AB	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	228.6 V	114.3 V	528 VAC	1.05 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP65	92.5 %	1	cURus FCC	UL 8750
MEAN WELL USA Inc. HVGC-240-1750AB	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	228.6 V	114.3 V	528 VAC	1.05 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP65	92.5 %	1	cURus FCC	UL 8750
MEAN WELL USA Inc. HVGC-240-2100AB	Chassis Mount	3750 VDC	AC DC Converter	Wire Leads	240 Watts	180 VAC	Constant Current	228.6 V	114.3 V	528 VAC	1.05 A	OTP OVP SCP	90 °C	-40 C	Analog PWM	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	IP65	92.5 %	1	cURus FCC	UL 8750
