24S Series

Power Inductors - SMD 15 UH 1.34A

Manufacturer: Murata Electronics

Catalog

Power Inductors - SMD 15 UH 1.34A

Catalog

Power Inductors - SMD 15 UH 1.34A

Part	Shielding	Mounting Type	Current Rating (Amps)	DC Resistance (DCR)	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Frequency - Self Resonant	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]

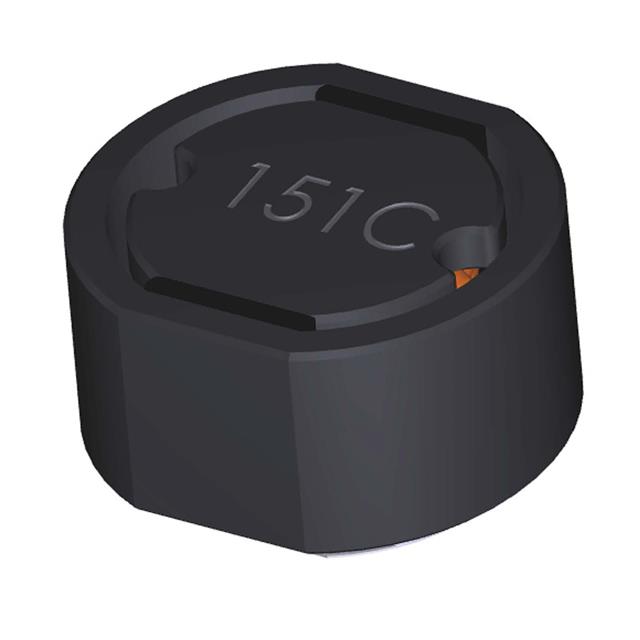

Murata Electronics 24S100C	Shielded	Surface Mount	1.64 A	70 mOhm	1 kHz	85 °C	-40 C	10 µH	25.6 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in
Murata Electronics 24S120C	Shielded	Surface Mount	1.5 A	74 mOhm	1 kHz	85 °C	-40 C	12 µH	29 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in
Murata Electronics 24S221C	Shielded	Surface Mount	350 mA		1 kHz	85 °C	-40 C	220 µH	3.58 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in	1.31 Ohm
Murata Electronics 24S330C	Shielded	Surface Mount	900 mA		1 kHz	85 °C	-40 C	33 µH	11.2 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in	190 mOhm
Murata Electronics 24S6R8C	Shielded	Surface Mount	2 A		1 kHz	85 °C	-40 C	6.8 µH	39 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in	45 mOhm
Murata Electronics 24S680C	Shielded	Surface Mount	0.63 A		1 kHz	85 °C	-40 C	68 µH	8.09 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in
Murata Electronics 24S220C	Shielded	Surface Mount	1.1 A		1 kHz	85 °C	-40 C	22 µH	15.7 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in	120 mOhm
Murata Electronics 24S3R3C	Shielded	Surface Mount	2.8 A	32 mOhm	1 kHz	85 °C	-40 C	3.3 µH	63 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in

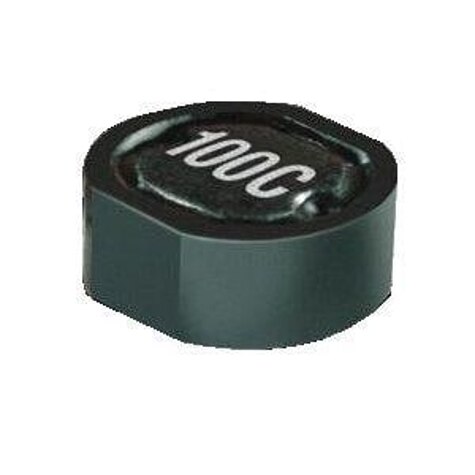

Murata Electronics 24S150C	Shielded	Surface Mount	1.34 A		1 kHz	85 °C	-40 C	15 µH	19.7 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in	90 mOhm
Murata Electronics 24S2R7C	Shielded	Surface Mount	3.1 A	28 mOhm	1 kHz	85 °C	-40 C	2.7 µH	79 MHz	Wirewound	Nonstandard	0.303 "	7.1 mm	0.28 in	7.7 mm	4.5 mm	0.177 in
