29671 Series
Manufacturer: Phoenix Contact
Beta
⌘K

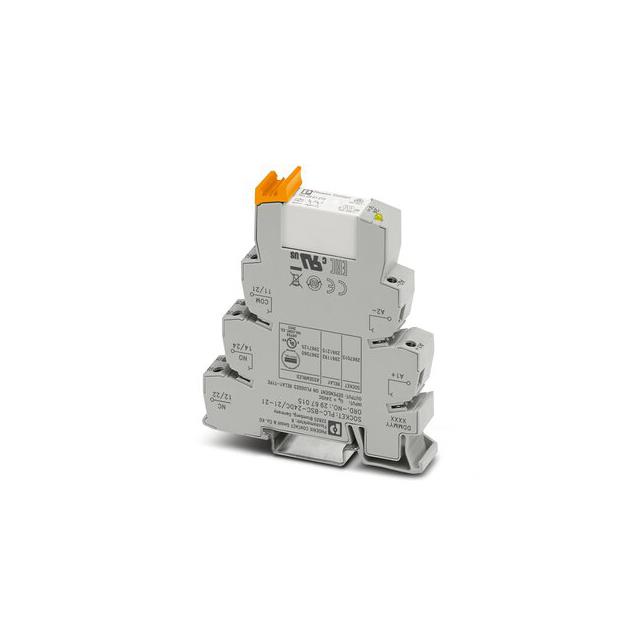

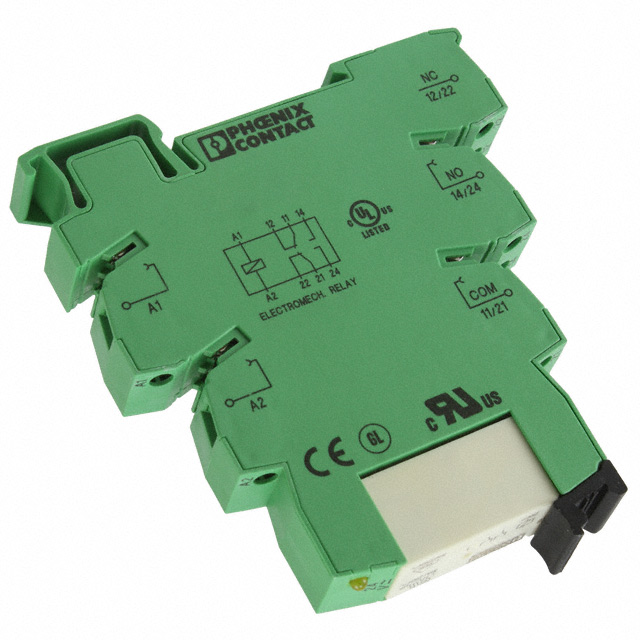

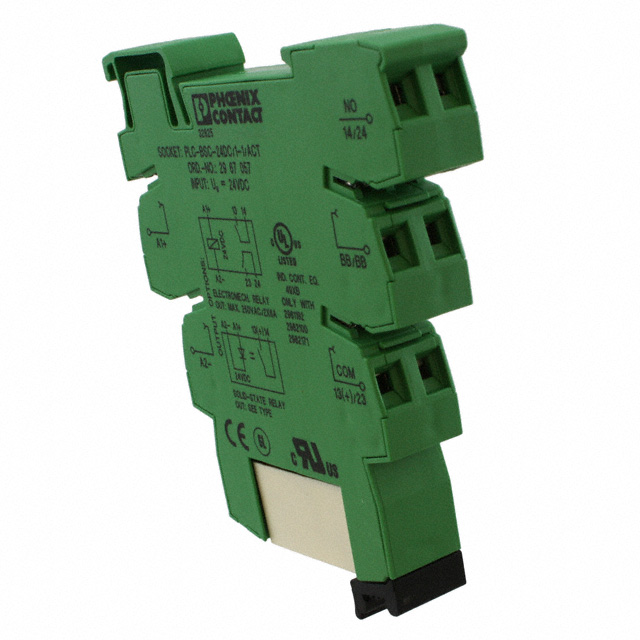

POWER RELAY, DPDT, 24 VDC, 50 MA, PLC SERIES, SOCKET, NON LATCHING
| Part | Coil Resistance | Mounting Type | Approval Agency | Release Time | Contact Material | Termination Style | Relay Type | Operate Time | Switching Voltage [Max] | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Voltage | Coil Current | Features | Contact Rating (Current) | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1333 Ohms | DIN Rail | cULus DNV EAC UL | 10 ms | Gold (Au) Silver (Ag) | Screw Terminal | General Purpose | 8 ms | 30 VAC 36 VDC | DPDT (2 Form C) | 60 °C | -40 C | Non Latching | 24 VDC | 18 mA | Lighted Indicator Socket Included | 50 mA | ||
 Phoenix Contact | 1371 Ohms | DIN Rail | cULus DNV EAC UL | 10 ms | Gold (Au) Silver (Ag) | Screw Terminal | General Purpose | 8 ms | 30 VAC 36 VDC | DPDT (2 Form C) | 60 °C | -25 °C | Non Latching | 24 VAC | 17.5 mA | Lighted Indicator Socket Included | 50 mA | ||
 Phoenix Contact | 51.1 kOhms | DIN Rail | cULus DNV EAC UL | 10 ms | Gold (Au) Silver (Ag) | Screw Terminal | General Purpose | 7 ms | 30 VAC 36 VDC | DPDT (2 Form C) | 55 °C | -25 °C | Non Latching | 4.5 mA | Lighted Indicator Socket Included | 50 mA | 230 VDC | 230 VAC |
