EM Series

Catalog

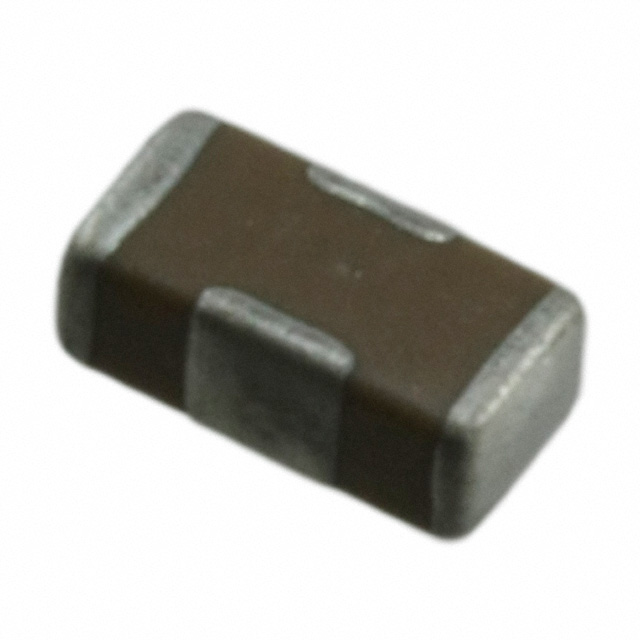

FEED THROUGH CAPACITORS X2Y 0805 1000PF 100V X7R

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Mounting Type	Package / Case	Voltage - Rated	Features	Capacitance	Tolerance	Package / Case	Size / Dimension [y]	Thickness (Max)
Johanson Technology Inc. EMCT101W102M1GV001E	-55 C	125 °C	Bypass Decoupling	0.04 "	1.02 mm	0.08 "	2.03 mm	1.27 mm	X7R	MLCC Surface Mount	0805	100 V	Low ESL (X2Y)	0.001 µF	20 %
Johanson Technology Inc. EMCT101W472M1GV001E	-55 C	125 °C	Bypass Decoupling	0.04 "	1.02 mm	0.08 "	2.03 mm	1.27 mm	X7R	MLCC Surface Mount	0805	100 V	Low ESL (X2Y)	0.0047 µF	20 %
Johanson Technology Inc. EMCP500G470M1GV001T	-55 C	125 °C	Bypass Decoupling	0.026 in	0.66 mm	0.064 in	1.63 mm	0.89 mm	C0G NP0	MLCC Surface Mount	0603	50 VDC	Low ESL (X2Y)	47 pF	20 %	1608 Metric	0.035 "
Johanson Technology Inc. EMCF500G1R8D1GV001T	-55 C	125 °C	Bypass Decoupling	0.02 in	0.51 mm	0.045 in	1.14 mm	0.64 mm	C0G NP0	MLCC Surface Mount	0402 (1005 Metric)	50 VDC	Low ESL (X2Y)	1.8 pF	0.5 pF		0.025 in
Johanson Technology Inc. EMCT500W223M1GV001E	-55 C	125 °C	Bypass Decoupling	0.04 "	1.02 mm	0.08 "	2.03 mm	1.27 mm	X7R	MLCC Surface Mount	0805	50 VDC	Low ESL (X2Y)	0.022 µF	20 %
Johanson Technology Inc. EMDD100W474M1GV001E	-55 C	125 °C	Bypass Decoupling	0.05 in		0.124 "	3.15 mm	1.6 mm	X7R	MLCC Surface Mount	1206 (3216 Metric)	10 V	Low ESL (X2Y)	0.47 µF	20 %		0.063 "	1.27 mm
