892-047 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 47POS 0.100

...

Part	Flange Feature	Color	Pitch	Pitch	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Gender	Contact Type	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish	Number of Positions	Termination	Read Out	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]

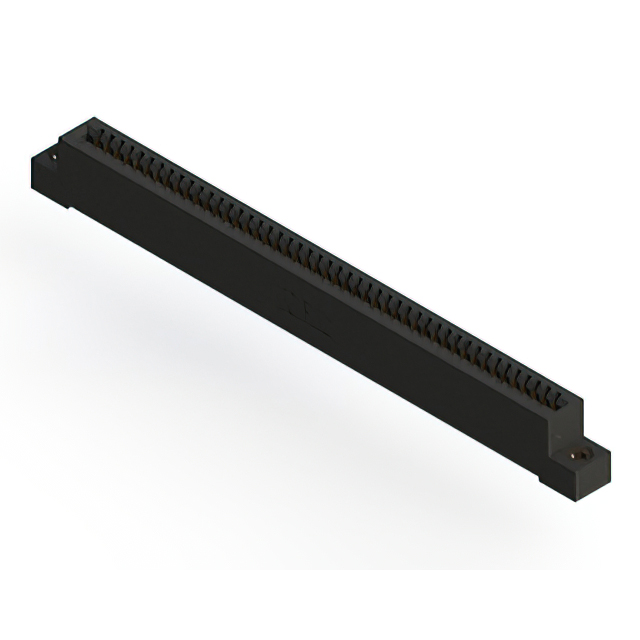

EDAC Inc. 892-047-520-108	4-40 Flush Mount Threaded Insert Top Opening	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Solder	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-523-101		Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Solder	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-544-107	Flush Mount M3 Threaded Insert Top Opening	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Wire Wrap	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-559-101		Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Gold	47	Solder	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-542-108	4-40 Flush Mount Threaded Insert Top Opening	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Wire Wrap	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-520-107	Flush Mount M3 Threaded Insert Top Opening	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Solder	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-541-107	Flush Mount M3 Threaded Insert Top Opening	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Wire Wrap	Single	Polyphenylene Sulfide (PPS)

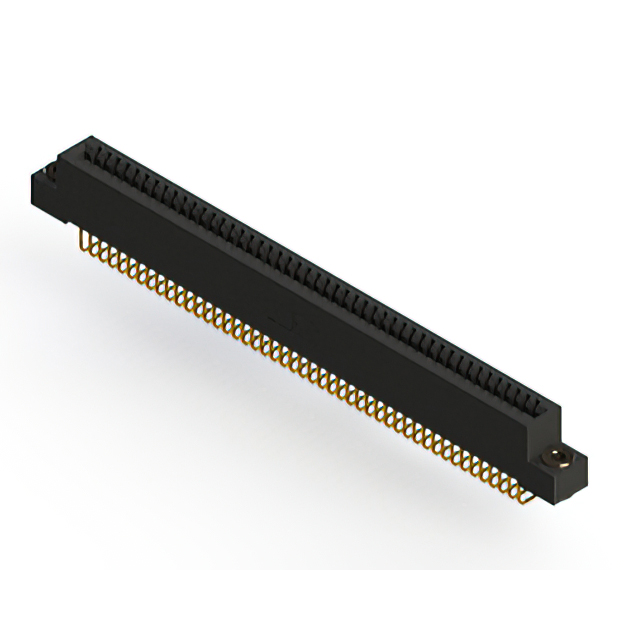

EDAC Inc. 892-047-558-103	Floating Bobbin Flush Mount	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Gold	47	Solder	Single	Polyphenylene Sulfide (PPS)	0.116 "	2.95 mm

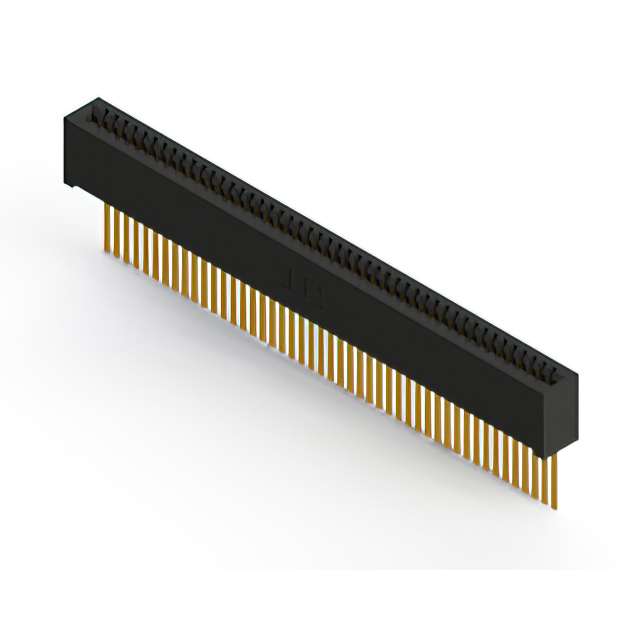

EDAC Inc. 892-047-544-101		Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Wire Wrap	Single	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-047-540-104	Flush Mount Top Opening Unthreaded	Black	0.1 "	2.54 mm	Non Specified - Single Edge	125 °C	-40 C	1	Female	Cantilever	1	0.25 Ám	10 Áin	Copper Alloy	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Gold	47	Wire Wrap	Single	Polyphenylene Sulfide (PPS)	0.156 "	3.96 mm
