1545 Series

Catalog

CABLE GLAND 4-10MM PG11 POLYAMID

Part	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Ingress Protection	Thread Size	Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Panel Hole Size	Panel Hole Size	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Panel Hole Size [custom]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Thread Size	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]

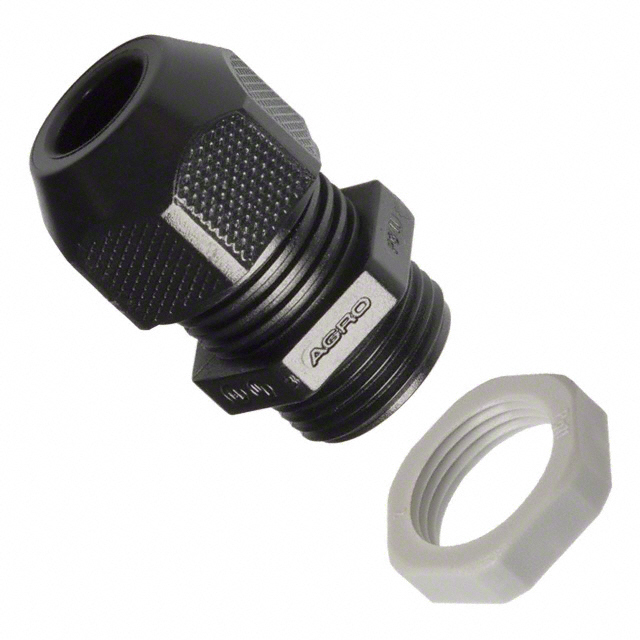

American Electrical Inc. A1545.11.10	0.315 "	8 mm	10 mm	0.394 in	Sealing Ring	IP68 - Dust Tight Waterproof	PG11	Cable Gland	Black	-30 ░C	100 °C	0.732 in	18.6 mm	Polyamide (PA) Nylon	4 mm	0.157 in
American Electrical Inc. A1545.42.38	0.591 in	15 mm		1.496 in	Sealing Ring	IP68 - Dust Tight Waterproof	PG42	Cable Gland	Black	-30 ░C	100 °C		54 mm	Polyamide (PA) Nylon	28 mm	1.102 in	2.126 in	38 mm
American Electrical Inc. A1545.09.08	0.315 "	8 mm	8 mm	0.315 in	Sealing Ring	IP68 - Dust Tight Waterproof	PG9	Cable Gland	Black			0.598 in	15.2 mm	Polyamide (PA) Nylon					3 mm	0.118 in

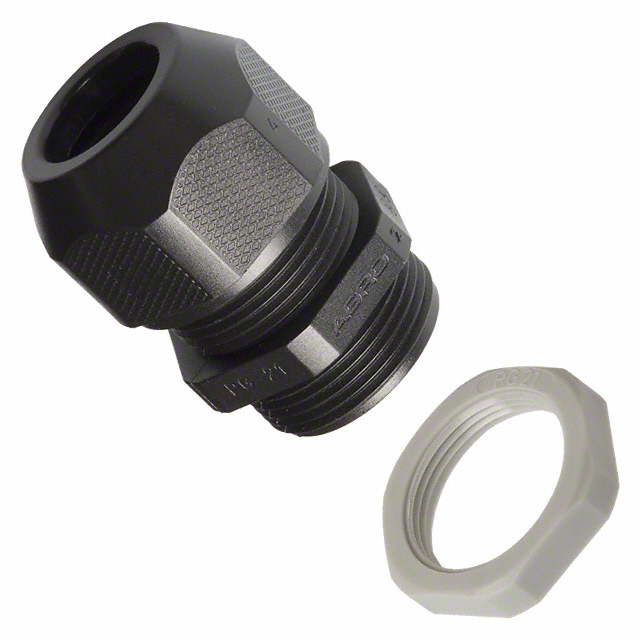

American Electrical Inc. A1545.21.14	0.433 in	11 mm		0.551 in	Sealing Ring	IP68 - Dust Tight Waterproof	PG21	Cable Gland	Black	-30 ░C	100 °C	1.114 in	28.3 mm	Polyamide (PA) Nylon	6.5 mm	0.256 in		14 mm

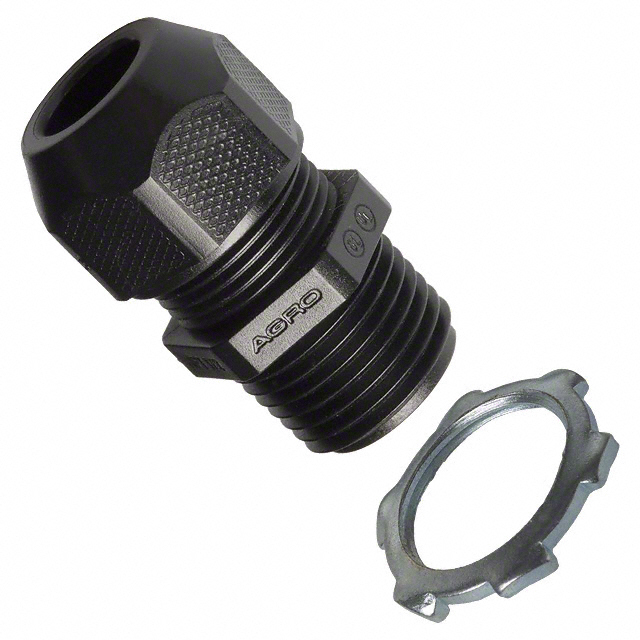

American Electrical Inc. A1545.N0500.07	0.591 in	15 mm			Sealing Ring	IP54 IP68		Cable Gland	Black	-30 ░C	100 °C			Polyamide (PA) Nylon				7 mm	3 mm	0.118 in	0.276 in	0.5
American Electrical Inc. A1545.N0750.14	0.591 in	15 mm		0.551 in	Sealing Ring	IP54 IP68		Cable Gland	Black	-30 ░C	100 °C			Polyamide (PA) Nylon	6.5 mm	0.256 in		14 mm				0.75 "

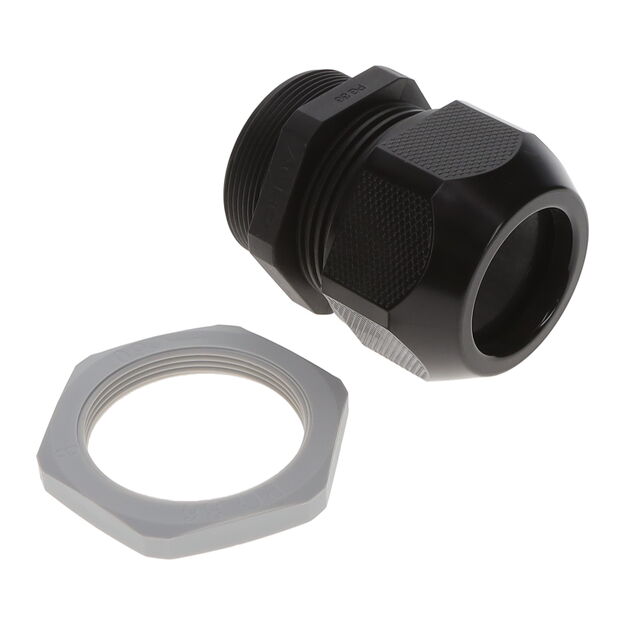

American Electrical Inc. A1545.36.33	0.591 in	15 mm			Sealing Ring	IP68 - Dust Tight Waterproof	PG36	Cable Gland	Black	-30 ░C	100 °C	1.85 in	47 mm	Polyamide (PA) Nylon							1.299 in		0.866 in	22 mm	33 mm

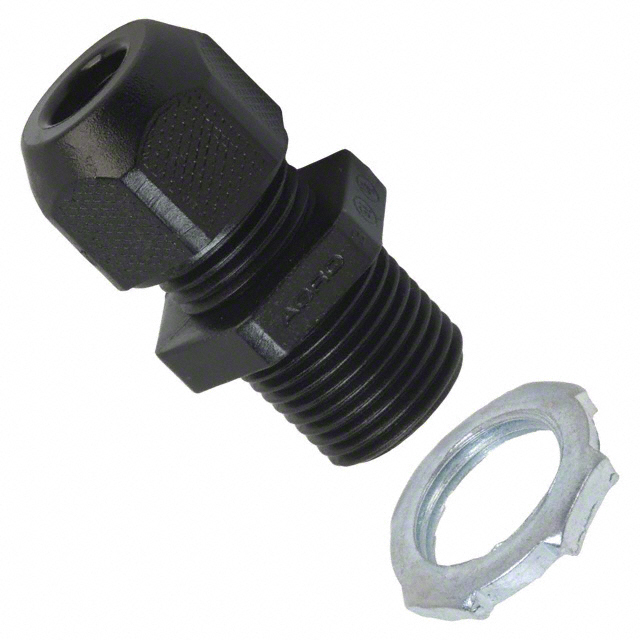

American Electrical Inc. A1545.N0375.08	0.591 in	15 mm	8 mm	0.315 in	Sealing Ring	IP54 IP68		Cable Gland	Black	-30 ░C	100 °C			Polyamide (PA) Nylon					3 mm	0.118 in		0.375 in NPT
American Electrical Inc. A1545.11.07	0.315 "	8 mm			Sealing Ring	IP68 - Dust Tight Waterproof	PG11	Cable Gland	Black	-30 ░C	100 °C	0.732 in	18.6 mm	Polyamide (PA) Nylon	2 mm	0.079 in		7 mm			0.276 in

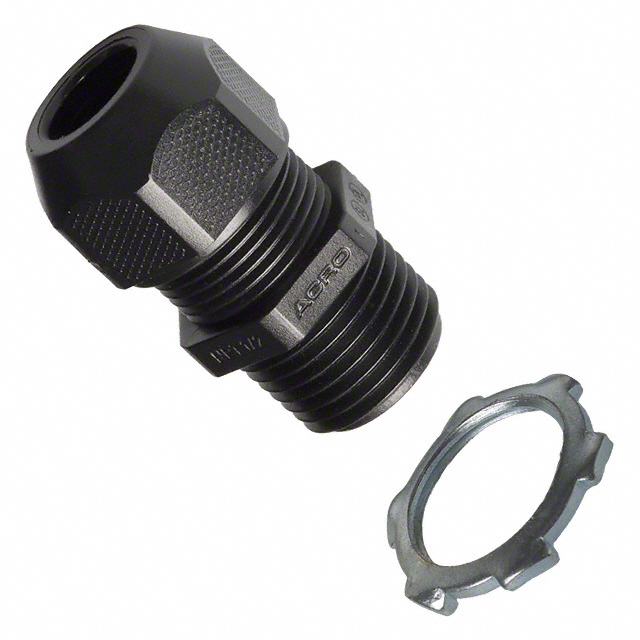

American Electrical Inc. A1545.N0500.12	0.591 in	15 mm	12 mm	0.472 in	Sealing Ring	IP54 IP68		Cable Gland	Black	-30 ░C	100 °C			Polyamide (PA) Nylon								0.5		5.5 mm		0.217 in
