PESD1 Series

ESD protection for In-vehicle networks

Catalog

ESD protection for In-vehicle networks

Part	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Clamping (Max) @ Ipp [Min]	Voltage - Reverse Standoff (Typ) [Max]	Capacitance @ Frequency	Power - Peak Pulse	Bidirectional Channels [custom]	Qualification	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Type	Grade	Package / Case	Current - Peak Pulse (10/1000µs)	Applications	Voltage - Reverse Standoff (Typ)	Operating Temperature	Unidirectional Channels	Bidirectional Channels	Package / Case	Unidirectional Channels [custom]
Nexperia USA Inc. PESD1LIN,135	SOD-323	70 V	44 V	15 V 24 V	13 pF	160 W	1	AEC-Q101	Surface Mount	150 °C	-65 °C	17.1 V	Zener	Automotive	SC-76 SOD-323	3 A
Nexperia USA Inc. PESD1NFC-LYL	DFN1006-2			18 V			1		Surface Mount				Zener		SOD-882
Nexperia USA Inc. PESD1ETH1GXLS-QYL	DFN1006BD-2				0.9 pF 1 MHz			AEC-Q100	Surface Mount				Zener	Automotive	SOD-882	2.3 A	General Purpose	24 V	150 °C	2
Nexperia USA Inc. PESD1CANVL	TO-236AB	70 V			1 MHz 11 pF	200 W		AEC-Q100	Surface Mount	150 °C	-65 °C	25.4 V	Zener	Automotive	SC-59 SOT-23-3 TO-236-3	3 A	CAN	24 V			2
Nexperia USA Inc. PESD1NFC-SFYL	DSN0603-2			18 V			1		Surface Mount				Zener		0201							0603 Metric
Nexperia USA Inc. PESD1LIN,115	SOD-323	70 V	44 V	15 V 24 V	13 pF	160 W	1	AEC-Q101	Surface Mount	150 °C	-65 °C	17.1 V	Zener	Automotive	SC-76 SOD-323	3 A
Nexperia USA Inc. PESD1CAN,215	TO-236AB	70 V			1 MHz 11 pF	200 W		AEC-Q101	Surface Mount	150 °C	-65 °C	25.4 V	Zener	Automotive	SC-59 SOT-23-3 TO-236-3	3 A	CAN	24 V			2
Nexperia USA Inc. PESD1LINZ	SOD-323	70 V	44 V	15 V 24 V	13 pF	160 W	1	AEC-Q101	Surface Mount	150 °C	-65 °C	17.1 V	Zener	Automotive	SC-76 SOD-323	3 A

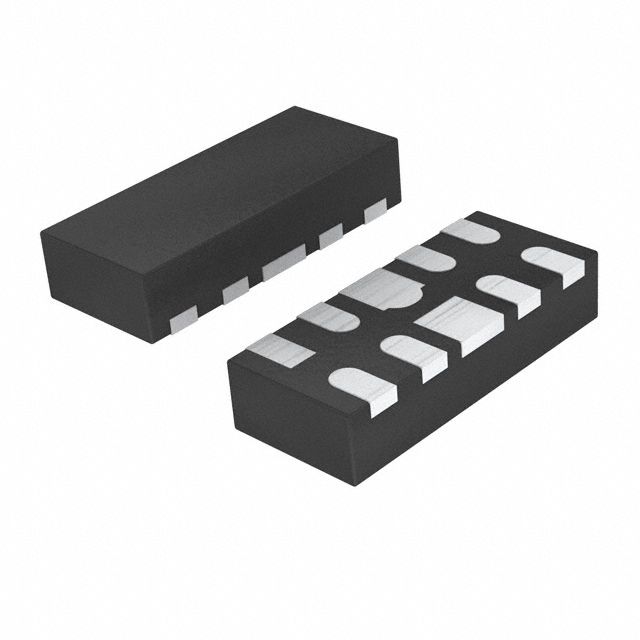

Nexperia USA Inc. PESD1LVDS,115	DFN2510-10							AEC-Q101	Surface Mount	125 °C	-40 °C	6 V	Steering (Rail to Rail)	Automotive	10-XFDFN			5.5 V					4

Catalog

ESD protection for In-vehicle networks

Description

The device is designed to protect in-vehicle ultra high-speed interfaces in automotive applications, such as Low-Voltage Differential Signaling (LVDS), High-Definition Multimedia Interface (HDMI) and DisplayPort interfaces against ElectroStatic Discharge (ESD).
