UF80B Series

Catalog

FAN AXIAL 80X25MM 230VAC TERM

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Air Flow	Air Flow	Width [y]	Bearing Type	Voltage - Rated	Power (Watts)	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	RPM	Size / Dimension [z]	Size / Dimension [x]	Noise	Fan Type	Approval Agency	Weight [custom]	Weight [custom]	Termination	Voltage - Rated [Max]	Voltage - Rated [Min]	Features

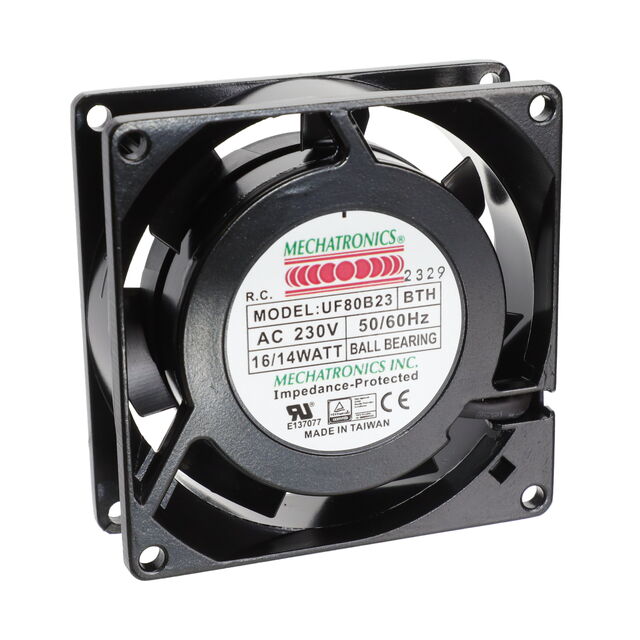

Mechatronics Fan Group UF80B23-BTHR	70 mA	Aluminum	Polybutylene Terephthalate (PBT)	24 CFM	0.672 mł/min	25 mm	Ball	230 VAC	14 W	54.8 Pa	0.22 in H2O	-40 C	70 °C	70 °C	-40 °C	2	3100 RPM	80 mm	80 mm	35 dB	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g

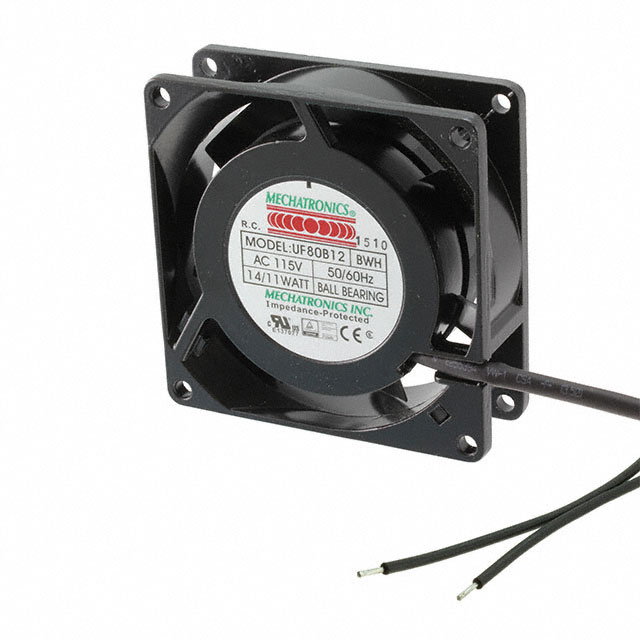

Mechatronics Fan Group UF80B12-BWHR	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	24 CFM	0.672 mł/min	25 mm	Ball	115 VAC	11 W	54.8 Pa	0.22 in H2O	-40 C	70 °C	70 °C	-40 °C		3100 RPM	80 mm	80 mm	35 dB	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B12/23-BWHR		Aluminum	Polybutylene Terephthalate (PBT)			25 mm	Ball					-40 C	70 °C	70 °C	-40 °C			80 mm	80 mm		Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g	2 Wire Leads	230 VAC	115 VAC	Dual Voltage
Mechatronics Fan Group UF80B12-BTLR	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	18 CFM	0.504 m³/min	25 mm	Ball	115 VAC	11 W	34.9 Pa	0.14 in H2O	-40 C	70 °C	70 °C	-40 °C	2	2400 RPM	80 mm	80 mm	31 dB(A)	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g
Mechatronics Fan Group UF80B12-BWLR	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	18 CFM	0.504 m³/min	25 mm	Ball	115 VAC	11 W	34.9 Pa	0.14 in H2O	-40 C	70 °C	70 °C	-40 °C		2400 RPM	80 mm	80 mm	31 dB(A)	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B23-BTLR	60 mA	Aluminum	Polybutylene Terephthalate (PBT)	18 CFM	0.504 m³/min	25 mm	Ball	230 VAC	14 W	34.9 Pa	0.14 in H2O	-40 C	70 °C	70 °C	-40 °C	2	2400 RPM	80 mm	80 mm	31 dB(A)	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g
Mechatronics Fan Group UF80B23-SWHR	70 mA	Aluminum	Polybutylene Terephthalate (PBT)	24 CFM	0.672 mł/min	25 mm	Sleeve	230 VAC	14 W	54.8 Pa	0.22 in H2O	-40 C	70 °C	70 °C	-40 °C		3100 RPM	80 mm	80 mm	35 dB	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B02-SWH		Aluminum	Polybutylene Terephthalate (PBT)			25 mm	Sleeve	24 VAC				-40 C	70 °C	70 °C	-40 °C			80 mm	80 mm		Tubeaxial	CE			2 Wire Leads
Mechatronics Fan Group UF80B12-BTHR	120 mA		Polybutylene Terephthalate (PBT)	24 CFM	0.672 mł/min	25 mm	Ball	115 VAC	11 W	54.8 Pa	0.22 in H2O	-40 C	70 °C	70 °C	-40 °C	2	3100 RPM	80 mm	80 mm	35 dB	Tubeaxial	CE cUL TUV UL
Mechatronics Fan Group UF80B12-STHR	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	24 CFM	0.672 mł/min	25 mm	Sleeve	115 VAC	11 W	54.8 Pa	0.22 in H2O	-40 C	70 °C	70 °C	-40 °C	2	3100 RPM	80 mm	80 mm	35 dB	Tubeaxial	CE cUL TUV UL	0.617 lb	279.87 g
