19390100 Series
Manufacturer: HARTING
Beta
⌘K

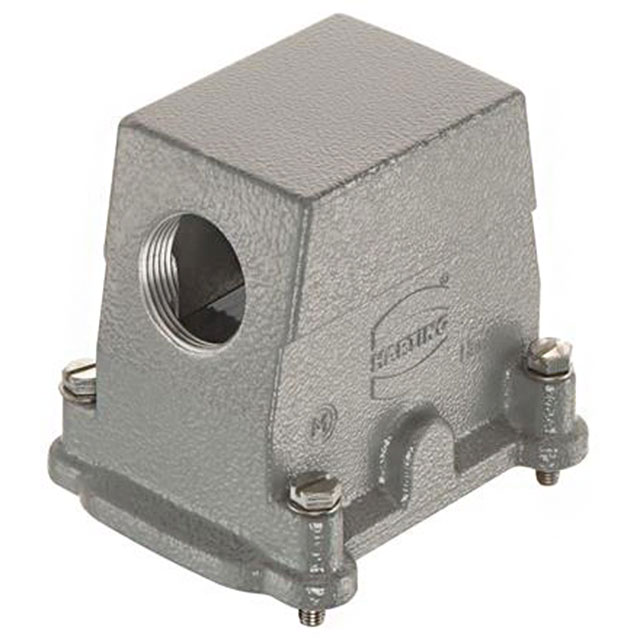

10B HP SCREW DOWN HOOD, SIDE ENTRY, M25
| Part | Ingress Protection | Housing Material | Style | Housing Color | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Housing Finish | Lock Location | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | IP66 IP68 IP69K | Aluminum Die Cast | Side Entry | Gray | 86 mm | 2.953 " | 71.2 mm | 75 mm | 3.386 " | 2.803 " | 10B | 125 °C | -40 C | M25 | Powder Coated | Screw Locks on Hood | Hood |
