W22K0C-P Series
Manufacturer: ODU
Beta
⌘K

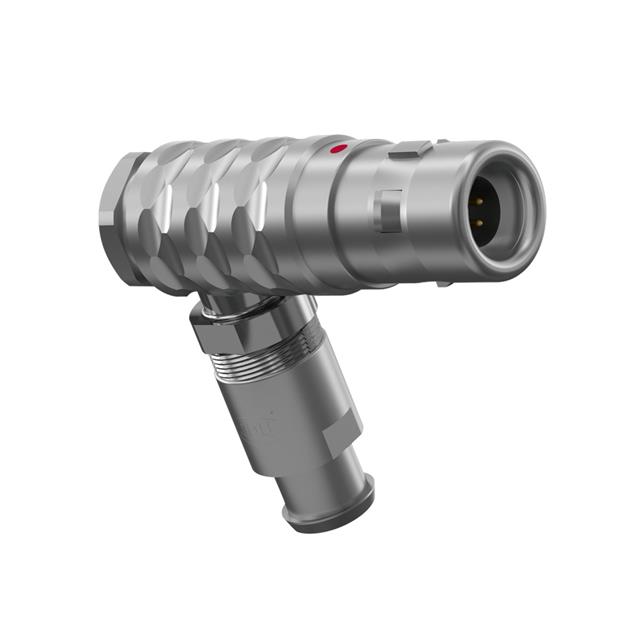

ODU MINI-SNAP RT.ANGLE PLUG, STY
| Part | Orientation | Applications | Contact Finish - Mating | Shielding | Insert Material | Connector Type | Ingress Protection | Fastening Type | Voltage Rating | Primary Material | Current Rating (Amps) | Color | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Contact Material | Features | Shell Size - Insert [custom] | Backshell Material, Plating | Cable Opening [Min] | Cable Opening [Max] | Mounting Type | Number of Positions | Shell Finish | Termination | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | Industrial Medical Military Testing Equipment & Measurement | Gold | Shielded | Polyetheretherketone (PEEK) | Plug Male Pins | IP68 - Dust Tight Waterproof | Push-Pull | 500 V | Metal | 7.5 A | Silver | 120 °C | -40 C | Brass | Brass | Backshell Strain Relief | 2 | Brass Chrome over Nickel | 0.335 in 8.5 mm | 0.354 in 9 mm | Free Hanging (In-Line) Right Angle | 10 | Chrome over Nickel | ||||
0 | Industrial Medical Military Testing Equipment & Measurement | Gold | Shielded | Polyetheretherketone (PEEK) | Plug Male Pins | IP68 - Dust Tight Waterproof | Push-Pull | 500 V | Metal | 10 A | Silver | 120 °C | -40 C | Brass | Brass | Backshell Strain Relief | 2 | Brass Chrome over Nickel | 0.276 " | 0.315 in | Free Hanging (In-Line) Right Angle | 8 | Chrome over Nickel | Crimp | 8 mm | 7 mm |
