BMR450 Series

Catalog

DC DC CONVERTER 0.6-5.5V 110W

Part	Package / Case	Standard Number	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Control Features	Number of Outputs	Features	Power (Watts)	Type	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
Flex Power Modules BMR4501002/020	13-SMD Module	62368-1	14 V	0.6 V	5.5 V	20 A	Surface Mount	0.32 "	12.9 mm	8.2 mm	25.7 mm	1.01 in	0.51 in	94.7 %	Active Low Enable	1	Adjustable Output PMBus™ Remote On/Off Remote Sense	110 W	Non-Isolated PoL Module Digital	4.5 V	ITE (Commercial)	120 °C	-40 °C	CB CSA IEC TUV UL

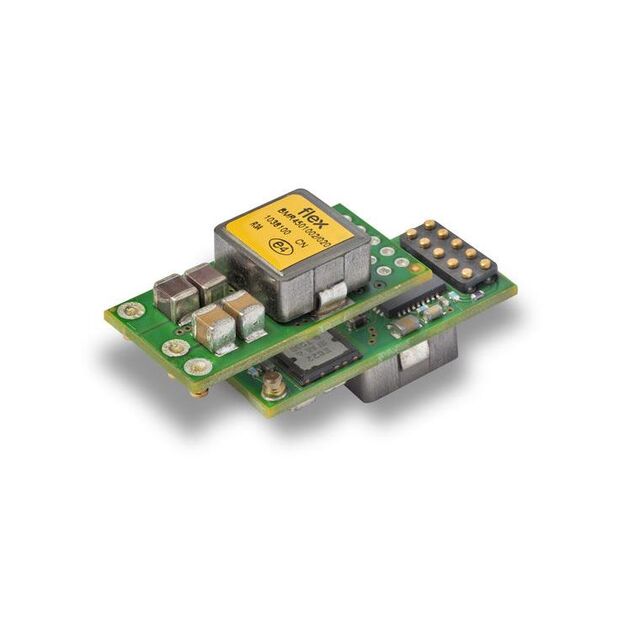

Flex Power Modules BMR4500002/020	13-DIP Module	62368-1	14 V	0.6 V	5.5 V	20 A	Through Hole	0.32 "	12.9 mm	8.2 mm	25.7 mm	1.01 in	0.51 in	94.7 %	Active Low Enable	1	Adjustable Output PMBus™ Remote On/Off Remote Sense	110 W	Non-Isolated PoL Module Digital	4.5 V	ITE (Commercial)	120 °C	-40 °C	CB CSA IEC TUV UL
