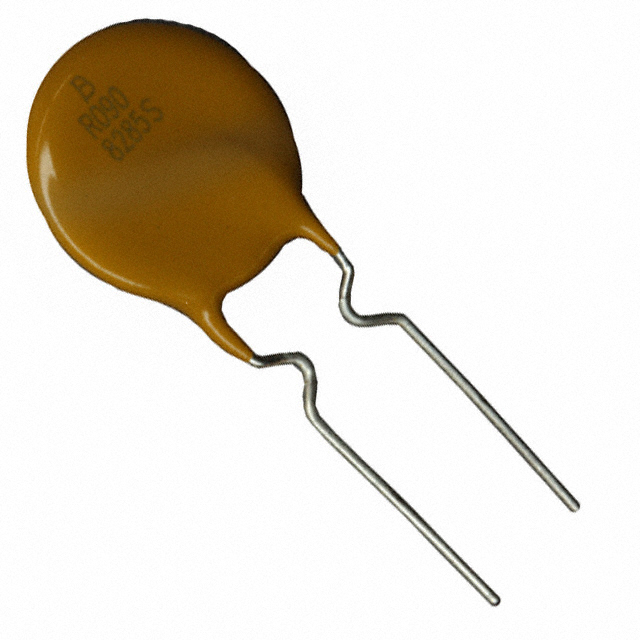

MF-R090 Series

Catalog

PTC RESETTABLE 0.9A 30V RADIAL LEADED /TAPE & REEL - 13" REEL

Part	Approval Agency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Package / Case	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Type	Resistance - Post Trip (R1) (Max) [Max]	Lead Spacing	Lead Spacing	Current - Max [Max]	Voltage - Max [Max]	Time to Trip
Bourns Inc. MF-R090-2-9	cURus TUV	16.7 mm	0.657 in	85 °C	-40 C	3.1 mm	0.461 "	11.7 mm	0.122 in	140 mOhms	Through Hole	Disc Radial	1.8 A	900 mA	Polymeric	470 mOhms	0.201 in	5.1 mm	40 A	60 V	7.2 s
Bourns Inc. MF-R090-AP-9-99	cURus TUV	16.7 mm	0.657 in	85 °C	-40 C	3.1 mm	0.461 "	11.7 mm	0.122 in	140 mOhms	Through Hole	Disc Radial	1.8 A	900 mA	Polymeric	470 mOhms	0.201 in	5.1 mm	40 A	60 V	7.2 s
Bourns Inc. MF-R090-2-9-99	cURus TUV	16.7 mm	0.657 in	85 °C	-40 C	3.1 mm	0.461 "	11.7 mm	0.122 in	140 mOhms	Through Hole	Disc Radial	1.8 A	900 mA	Polymeric	470 mOhms	0.201 in	5.1 mm	40 A	60 V	7.2 s
Bourns Inc. MF-R090-2	cURus TUV	16.7 mm	0.657 in	85 °C	-40 C	3.1 mm	0.461 "	11.7 mm	0.122 in	140 mOhms	Through Hole	Disc Radial	1.8 A	900 mA	Polymeric	470 mOhms	0.201 in	5.1 mm	40 A	60 V	7.2 s
