737-044 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 44POS 0.156

Part	Termination Rows	Number of Rows	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Color	Pitch [x]	Pitch [x]	Termination	Contact Material	Contact Type	Material - Insulation	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Read Out	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]
EDAC Inc. 737-044-525-206	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in

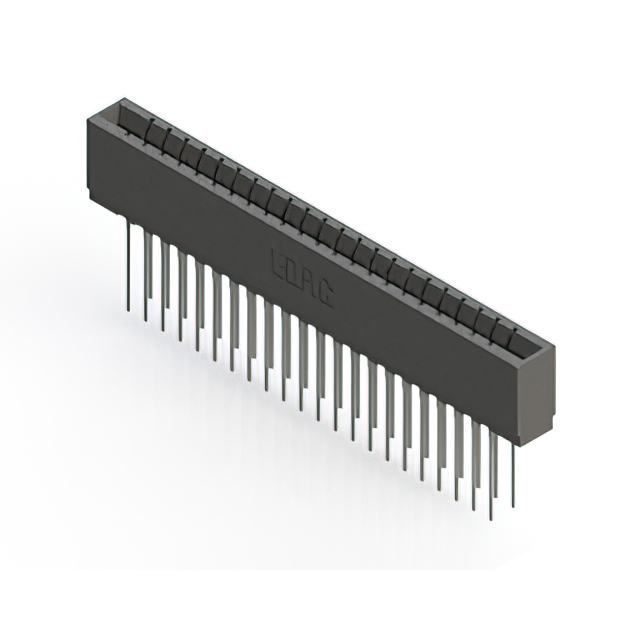

EDAC Inc. 737-044-541-201	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit Wire Wrap	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-522-206	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-560-206	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit	Copper Alloy	Cantilever Make Before Break	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-520-201	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-560-201	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit	Copper Alloy	Cantilever Make Before Break	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in

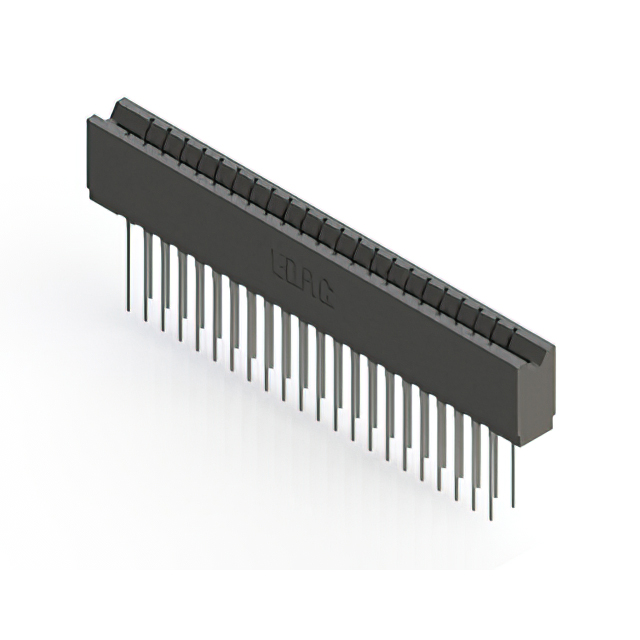

EDAC Inc. 737-044-541-206	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit Wire Wrap	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-522-201	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-545-206	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit Wire Wrap	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 737-044-545-201	2	2	Non Specified - Dual Edge	-40 °C	105 ░C	22	Black	0.156 in	3.96 mm	Press-Fit Wire Wrap	Copper Alloy	Cantilever	Polyester Thermoplastic	Gold	Through Hole	0.76 Ám	30 Áin	Female	Dual	44	1.37 mm	0.054 "	1.78 mm	0.07 in
