3292 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

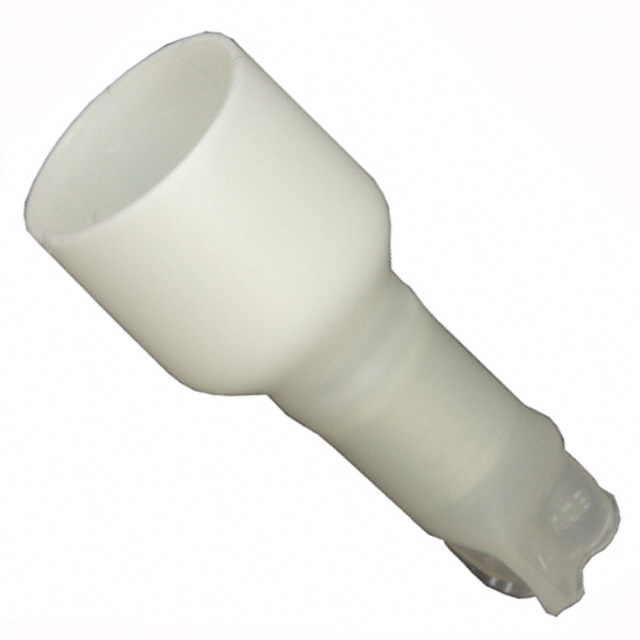

SPLICE, CE, 22-12
| Part | Color | Termination | Number of Wire Entries [custom] | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Contact Material | Length - Overall [x] | Length - Overall [x] | Contact Finish | Foil Crimp Area | Foil Crimp Area |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Transparent | Crimp | 1 | Fully Insulated | 12 AWG | 22 AWG | Butt Splice Closed End Single Opening | ||||||

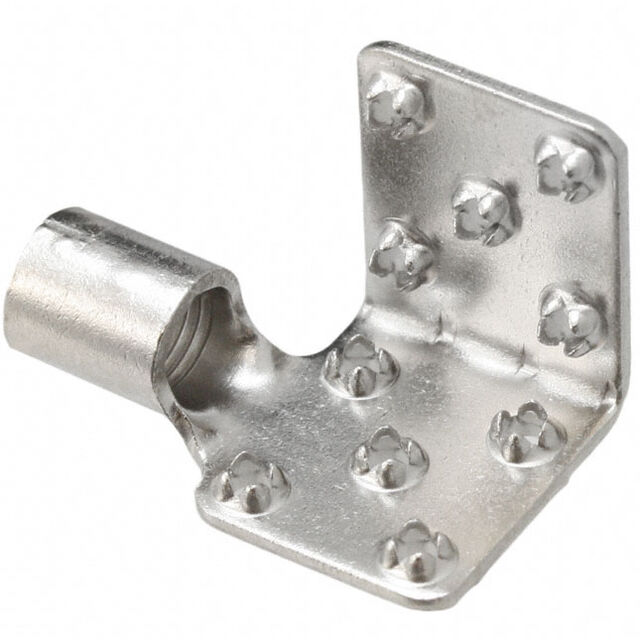

 TE Connectivity Raychem Cable Protection | 10 AWG | 12 AWG | Double Face | Copper | 19.51 mm | 0.768 " | Nickel | 0.408 " 0.454 " | 10.36 mm 12.8 mm |
