A008-E Series
Manufacturer: LEDdynamics Inc.
Beta
⌘K
LED MOD INDUS STAR RGB STARBRD
| Part | Current - Test | Size / Dimension [x] | Size / Dimension [y] | Configuration | Current - Max [Max] | Color | Type | Lens Type | Height [z] | Temperature - Test | CCT (K) | Luminous Flux @ Current/Temperature | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

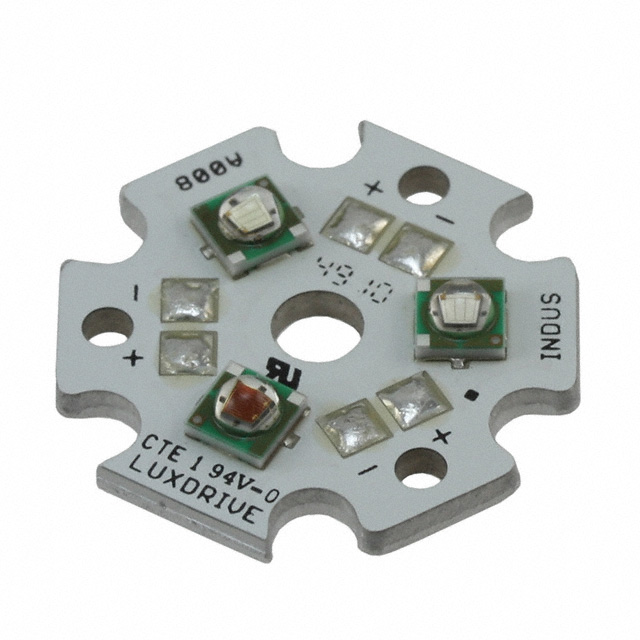

 LEDdynamics Inc. | 350 mA | 19.9 mm | 19.9 mm | Starboard | 700 mA | Blue Green Red | LED Module | Domed | 3.75 mm | ||||
 LEDdynamics Inc. | 350 mA | 19.9 mm | 19.9 mm | Starboard | 700 mA | Blue | LED Module | Domed | 3.75 mm | ||||

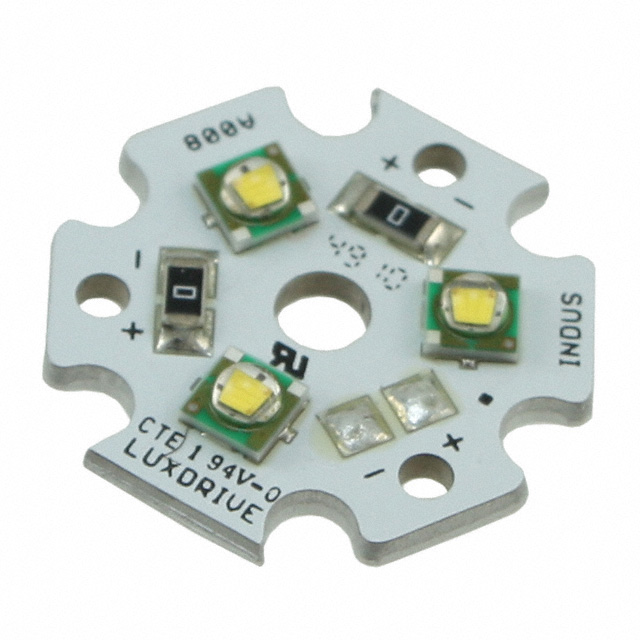

 LEDdynamics Inc. | 350 mA | 19.9 mm | 19.9 mm | Starboard | 700 mA | Cool White | LED Module | Domed | 3.75 mm | 25 °C | 5000 K | 315 lm | 75 |

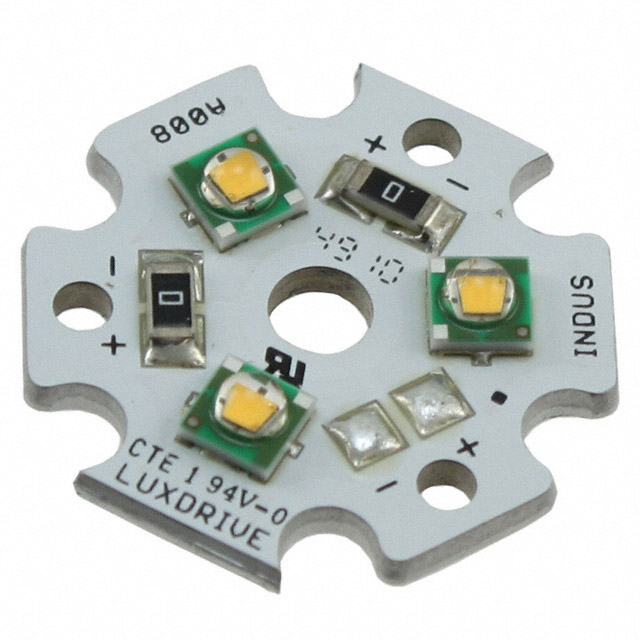

 LEDdynamics Inc. | 350 mA | 19.9 mm | 19.9 mm | Starboard | 700 mA | Warm White | LED Module | Domed | 3.75 mm | 3000 K | 80 |
