MAX17291 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC REG BOOST
| Part | Voltage - Input (Min) [Min] | Function | Number of Outputs | Voltage - Output (Min/Fixed) | Voltage - Input (Max) [Max] | Synchronous Rectifier | Frequency - Switching | Output Type | Output Configuration | Mounting Type | Supplier Device Package | Voltage - Output (Max) [Max] | Package / Case | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Regulator Topology | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Board Type | Outputs and Type | Outputs and Type | Voltage - Output | Supplied Contents | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated | 1.8 V | Step-Up | 1 | 1.8 V | 5.5 V | 1 MHz | Adjustable | Positive | Surface Mount | 6-WLP (1.27x0.87) | 20 V | 6-XFBGA WLBGA | Boost | 125 °C | -40 °C | ||||||||||||

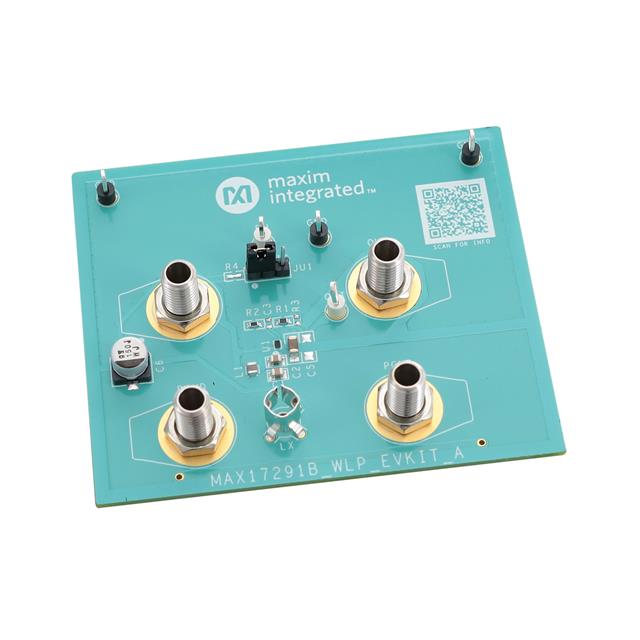

 Analog Devices Inc./Maxim Integrated | Boost | 50 mA | 4.5 V | 1.8 V | MAX17291B | Fully Populated | Non-Isolated | 1 | 12 V | Board(s) | DC/DC Step Up | ||||||||||||||||
Analog Devices Inc./Maxim Integrated | 1.8 V | Step-Up | 1 | 5.5 V | 5.5 V | 1 MHz | Adjustable | Positive | Surface Mount | 6-WLP (1.27x0.87) | 20 V | 6-XFBGA WLBGA | Boost | 125 ¯C | -40 °C | 1 A | |||||||||||
 Analog Devices Inc./Maxim Integrated | 1.8 V | Step-Up | 1 | 5.5 V | 5.5 V | 1 MHz | Adjustable | Positive | Surface Mount | 8-TDFN-EP (2x2) | 20 V | 8-WFDFN Exposed Pad | Boost | 125 ¯C | -40 °C | ||||||||||||

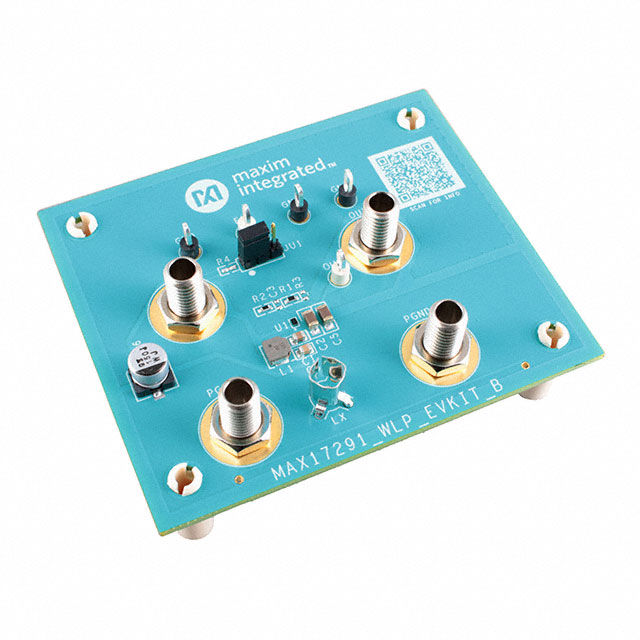

 Analog Devices Inc./Maxim Integrated | Boost | 310 mA | 5.5 V | 1.8 V | MAX17291 | Fully Populated | Non-Isolated | 1 | 12 V | Board(s) | DC/DC Step Up |
