EM-SGL-M32 Series

Catalog

CABLE GLAND 15-21MM M32 BRASS

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Material	Includes	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Thread Length	Thread Length	Thread Size	Color	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]

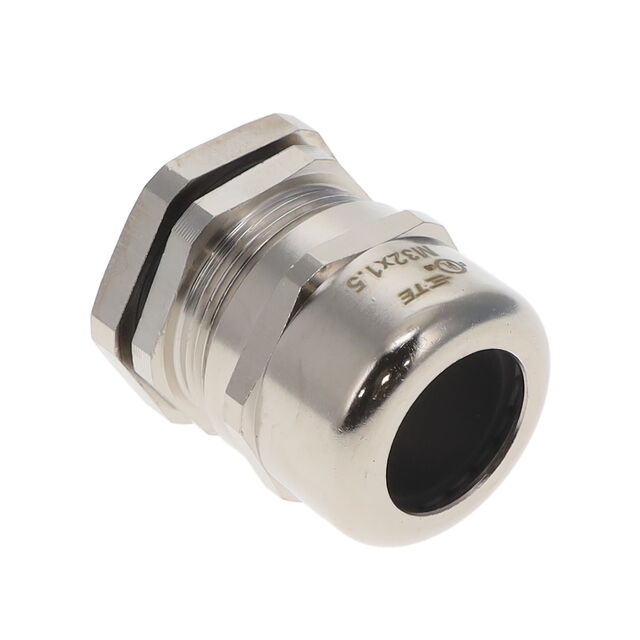

TE Connectivity AMP Connectors EM-SGL-M32-MET-G	15 mm	0.591 in	Brass Nickel Plated	Locknut Seal	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	0.827 in	21 mm	0.315 "	8 mm	M32x1.5	Silver	Cable Gland

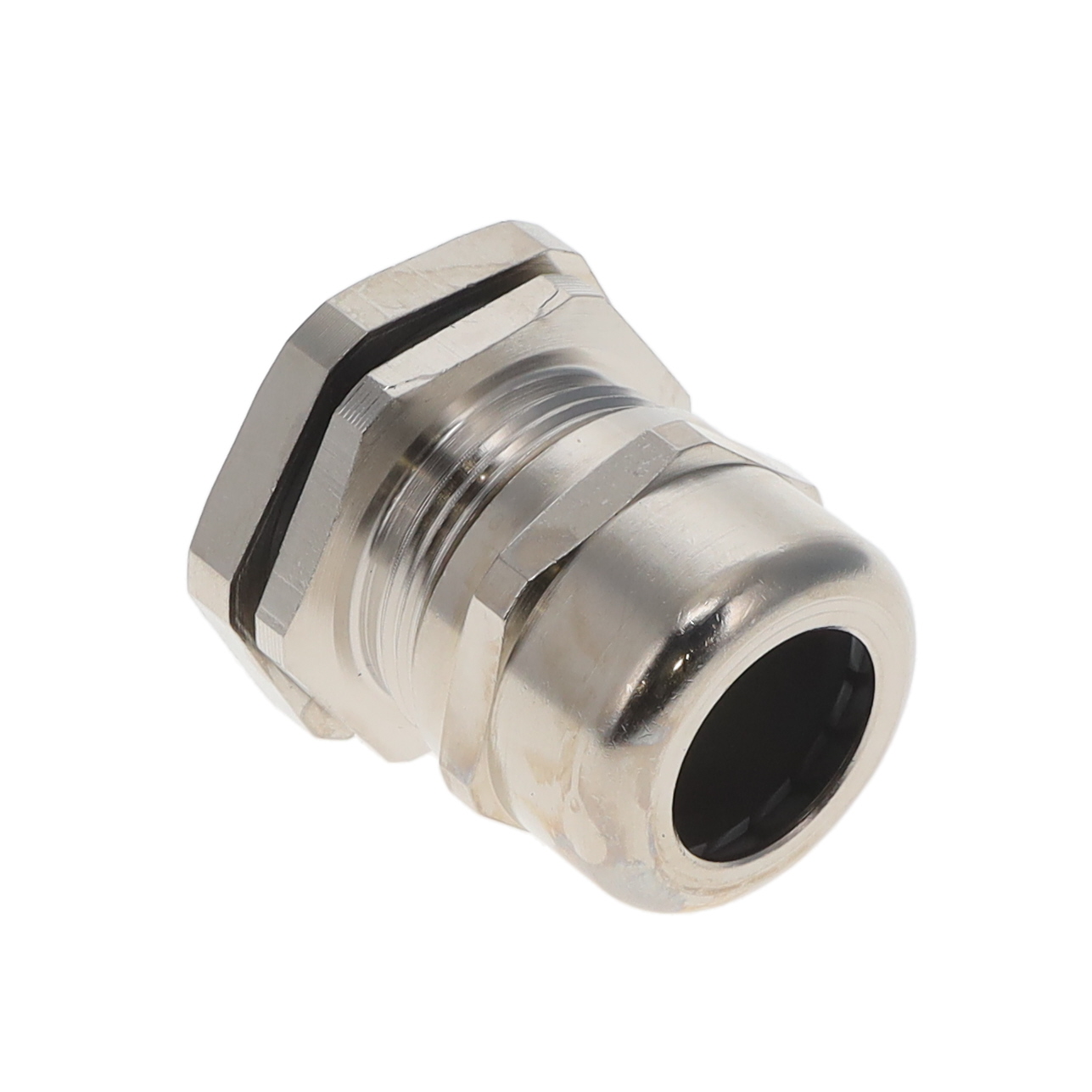

TE Connectivity AMP Connectors EM-SGL-M32-MET-E	13 mm	0.512 in	Brass Nickel Plated	Locknut Seal	IP68 - Dust Tight Waterproof	-20 ░C	100 °C			0.354 in	9 mm	M32x1.5	Silver	Cable Gland	18.01 mm	0.709 in
