PT-120 Series

Catalog

LED MOD PT-120 AMBER RECT

Part	Lumens/Watt @ Current - Test	Color	Current - Max [Max]	Height [z]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Current - Test	Type	Voltage - Forward (Vf) (Typ)	Features	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	Luminous Flux @ Current/Temperature	Configuration	Wavelength	Lens Type	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Wavelength [Min]	Wavelength [Max]

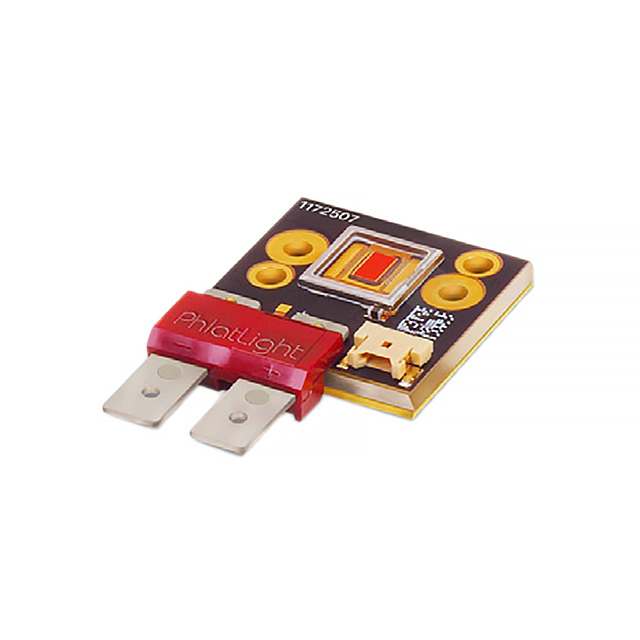

Luminus Devices Inc. PT-120-RAX-L15-MPK	52 lm/W	Amber	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	3.1 V	With Connector	42 mm	28 mm	40 °C	2925 lm	Rectangle	613 nm	Flat

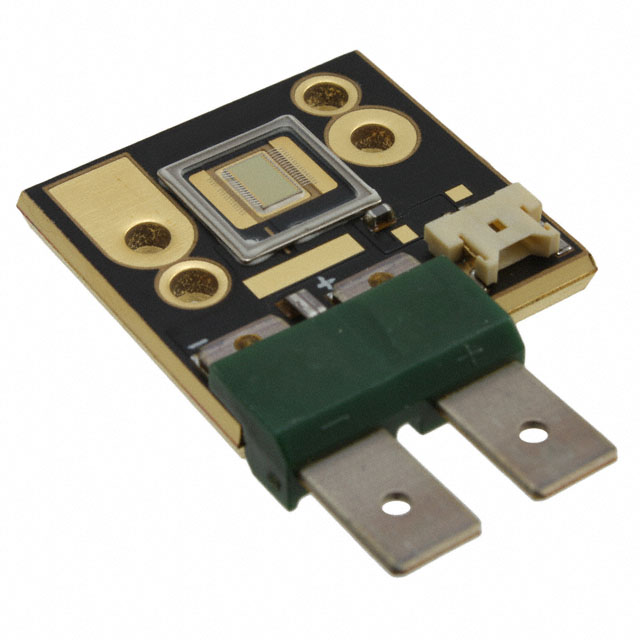

Luminus Devices Inc. PT-120-G-L11-MPM	58 lm/W	Green	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	5.2 V	With Connector	42 mm	28 mm	40 °C	5425 lm	Rectangle	525 nm	Flat	4650 lm	6200 lm

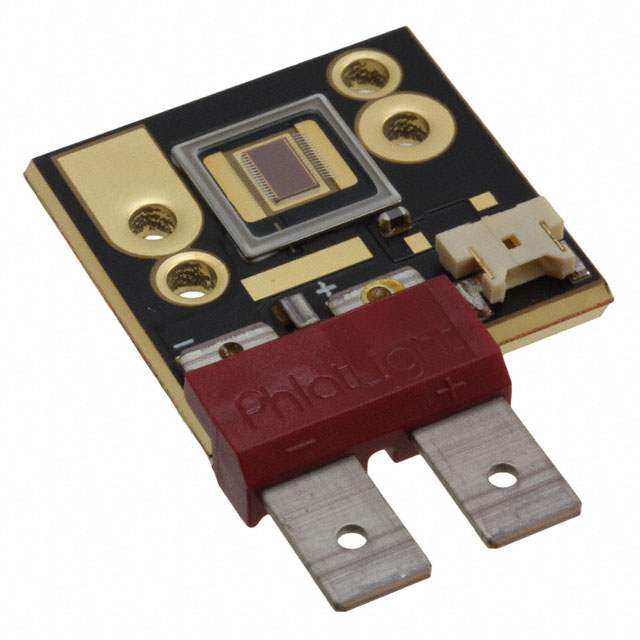

Luminus Devices Inc. PT-120-RA-C11-MPE								LED Module
Luminus Devices Inc. PT-120-RAX-L15-MPH	46 lm/W	Amber	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	3.1 V	With Connector	42 mm	28 mm	40 °C	2575 lm	Rectangle	613 nm	Flat	2150 lm	3000 lm
Luminus Devices Inc. PT-120-G-L11-MPN	59 lm/W	Green	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	5.2 V	With Connector	42 mm	28 mm	40 °C		Rectangle	525 nm	Flat	4900 lm	6200 lm

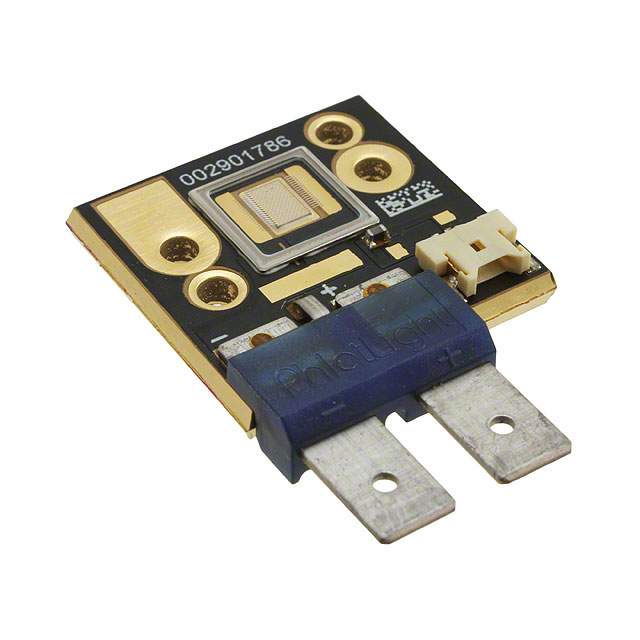

Luminus Devices Inc. PT-120-B-L11-EPE	14 lm/W	Blue	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	3.9 V	With Connector	42 mm	28 mm	40 °C	980 lm	Rectangle	462 nm	Flat	815 lm	1145 lm
Luminus Devices Inc. PT-120-B-L11-EPF	15 lm/W	Blue	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	3.9 V	With Connector	42 mm	28 mm	40 °C	1050 lm	Rectangle	462 nm	Flat
Luminus Devices Inc. PT-120-B-L11-EPD	13 lm/W	Blue	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	3.9 V	With Connector	42 mm	28 mm	40 °C	910 lm	Rectangle	462 nm	Flat
Luminus Devices Inc. PT-120-G-C11-MPB	28 lm/W	Green		5.61 mm	2.6 mm	4.63 mm	18 A	LED Module	4.9 V	With Connector	42 mm	28 mm	40 °C	2450 lm	Rectangle	528 nm	Flat

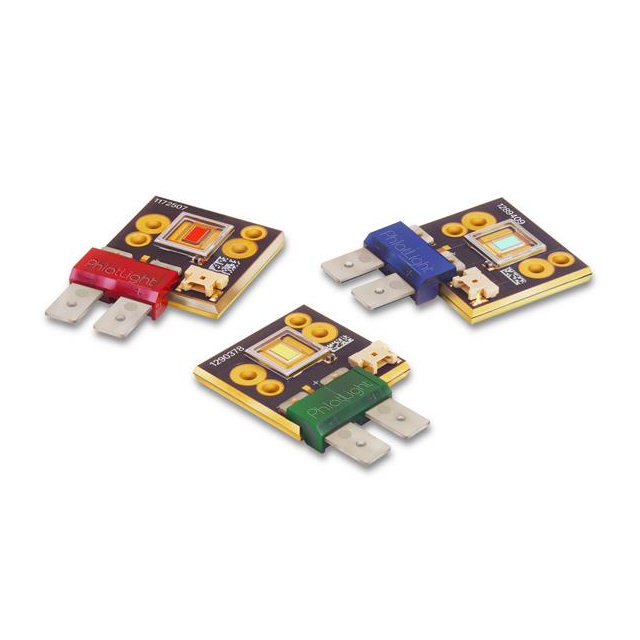

Luminus Devices Inc. PT-120-B-L11-EPF101	15 lm/W	Blue	27 A	5.7 mm	2.6 mm	4.6 mm	18 A	LED Module	3.9 V	With Connector	42 mm	28 mm	40 °C	1050 lm	Rectangle	458 nm	Flat			454 nm	462 nm
