ECQ-E6223 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.022UF 5% 630VDC RAD

Part	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Applications	Termination	Lead Spacing	Lead Spacing	Tolerance	Dielectric Material	Package / Case	Size / Dimension	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Panasonic Electronic Components ECQ-E6223JFB	0.022 µF	0.61 in	15.5 mm	Through Hole	General Purpose	PC Pins	0.394 in	10 mm	5 %	Polyester Metallized	Radial	0.472 in	-40 C	105 ░C
Panasonic Electronic Components ECQ-E6223KFB	0.022 µF	0.61 in	15.5 mm	Through Hole	General Purpose	PC Pins	0.394 in	10 mm	10 %	Polyester Metallized	Radial	0.472 in	-40 C	105 ░C
Panasonic Electronic Components ECQ-E6223KF	0.022 µF			Through Hole	General Purpose	PC Pins	0.394 in	10 mm	10 %	Polyester Metallized	Radial	0.472 in	-40 C	105 ░C	11.5 mm	0.453 in
Panasonic Electronic Components ECQ-E6223KF3	0.022 µF	0.61 in	15.5 mm	Through Hole	General Purpose	PC Pins	0.197 "	5 mm	10 %	Polyester Metallized	Radial	0.472 in	-40 C	105 ░C

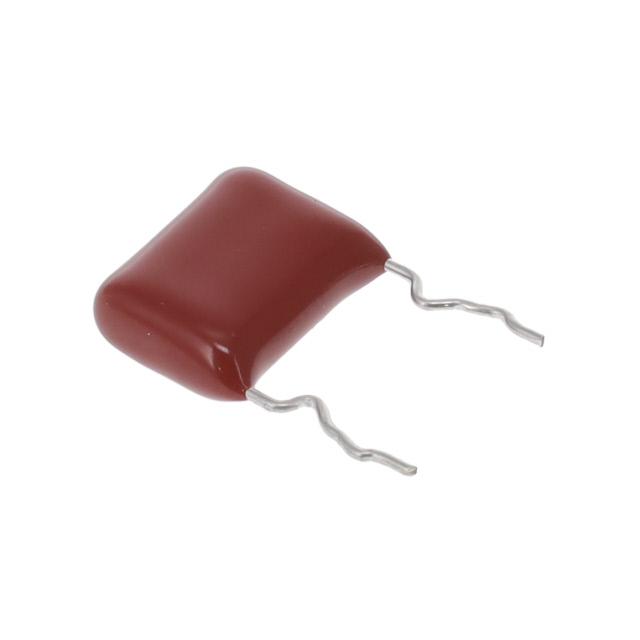

Panasonic Electronic Components ECQ-E6223KFW	0.022 µF	0.61 in	15.5 mm	Through Hole	General Purpose	PC Pins	0.394 in	10 mm	10 %	Polyester Metallized	Radial	0.472 in	-40 C	105 ░C
Panasonic Electronic Components ECQ-E6223KZ	0.022 µF	13 mm		Through Hole	General Purpose	PC Pins	0.413 in	10.5 mm	10 %	Polyester Metallized	Radial		-40 C	85 °C			0.512 "	6 mm	0.531 in	13.5 mm	0.236 "
Panasonic Electronic Components ECQ-E6223KF9	0.022 µF	0.61 in	15.5 mm	Through Hole	General Purpose	PC Pins	0.197 "	5 mm	10 %	Polyester Metallized	Radial	0.472 in	-40 C	105 ░C
