2238174 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

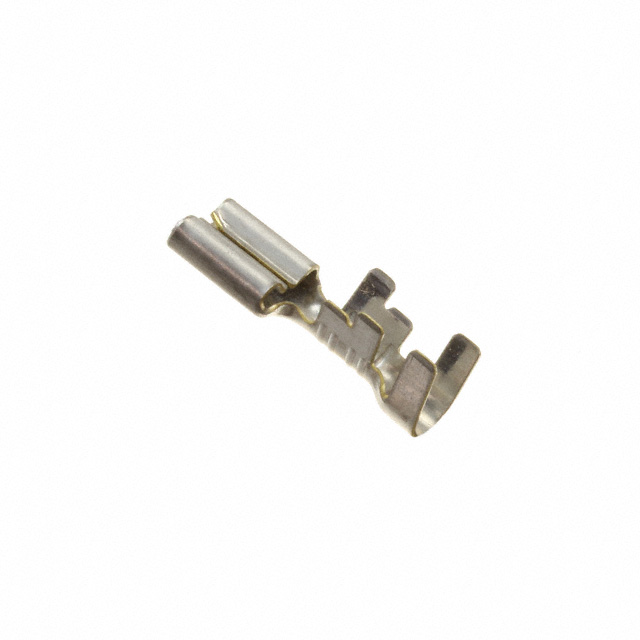

FAST .187 STD REC STR 2D AWG24-1
| Part | Length - Overall [x] | Length - Overall [x] | Contact Finish | Contact Material | Termination | Terminal Type | Insulation | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Tab Thickness | Tab Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Gender | Mounting Type | Tab Length | Tab Length | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.725 in | 18.42 mm | Tin | Brass | Crimp | Standard | Non-Insulated | 0.149 in | 1.7 mm | 3.79 mm | 0.067 in | 0.032 in | 0.81 mm | 14 AWG | 24 AWG | Female | Free Hanging (In-Line) | 6.35 mm | 0.25 in | 4.75 mm | 0.187 in |
