29095 Series

Catalog

RELAY GEN PURPOSE SPDT 6A 12V

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Operate Time	Mounting Type	Contact Rating (Current)	Termination Style	Contact Form	Coil Type	Coil Current	Switching Voltage	Features	Approval Agency	Coil Voltage	Contact Material	Relay Type	Coil Voltage	Coil Voltage	Coil Voltage

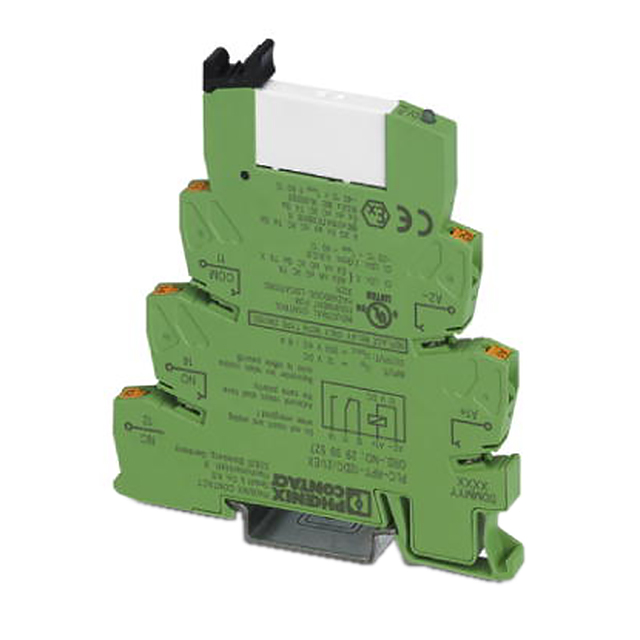

Phoenix Contact 2909527	784.3 Ohms	60 °C	-40 C	8 ms	5 ms	DIN Rail	6 A	Spring Terminal	SPDT (1 Form C)	Non Latching	15.3 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VDC	Silver Tin Oxide (AgSnO)	General Purpose

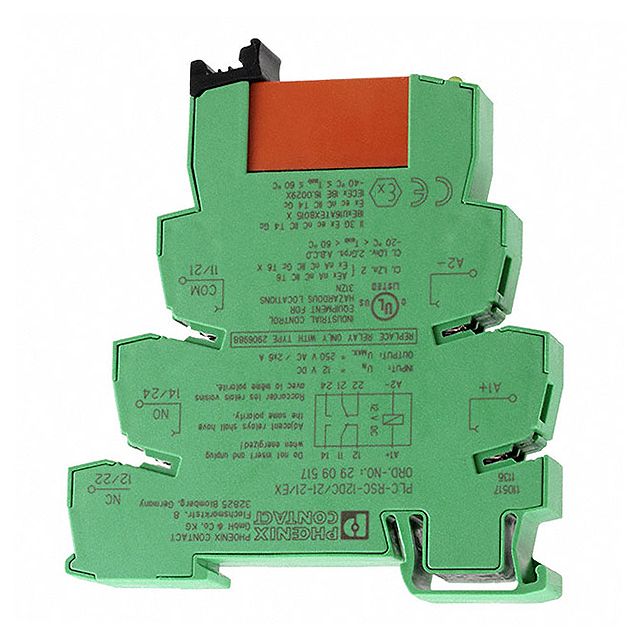

Phoenix Contact 2909517	364 Ohms	60 °C	-40 C	10 ms	8 ms	DIN Rail	6 A	Screw Terminal	DPDT (2 Form C)	Non Latching	33 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VDC	Silver Nickel (AgNi)	General Purpose
Phoenix Contact 2909513	364 Ohms	60 °C	-40 C	10 ms	8 ms	DIN Rail	6 A	Spring Terminal	DPDT (2 Form C)	Non Latching	33 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VDC	Silver Nickel (AgNi)	General Purpose

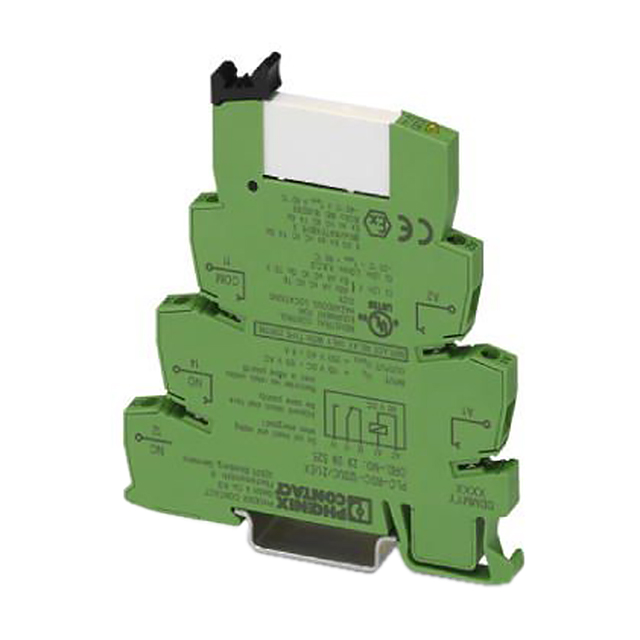

Phoenix Contact 2909525	34.29 kOhms	60 °C	-40 C	15 ms	6 ms	DIN Rail	6 A	Screw Terminal	SPDT (1 Form C)	Non Latching	3.5 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA		Silver Tin Oxide (AgSnO)	General Purpose	120VAC/DC

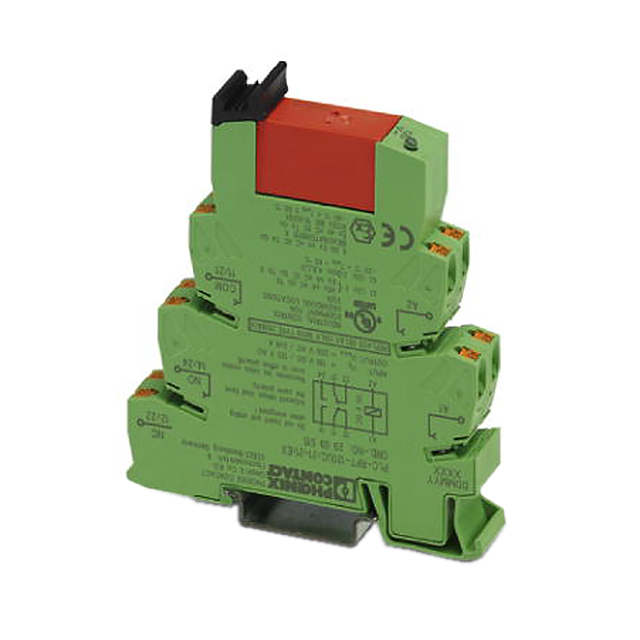

Phoenix Contact 2909515		60 °C	-40 C	10 ms	7 ms	DIN Rail	6 A	Spring Terminal	DPDT (2 Form C)	Non Latching	4.5 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA		Silver Nickel (AgNi)	General Purpose	120VAC/DC
Phoenix Contact 2909532	1333 Ohms	60 °C	-40 C	10 ms	8 ms	DIN Rail	10 A	Spring Terminal	SPDT (1 Form C)	Non Latching	18 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA	24 VDC	Silver Nickel (AgNi)	General Purpose

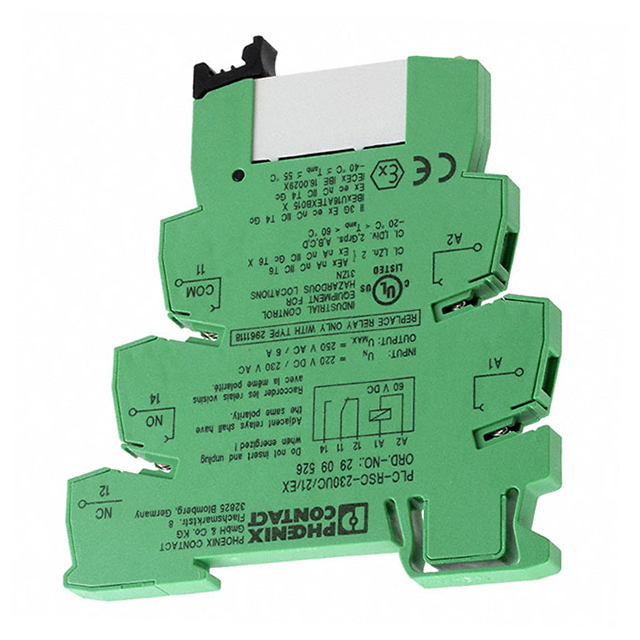

Phoenix Contact 2909526	71.875 kOhms	55 °C	-40 C	15 ms	7 ms	DIN Rail	6 A	Screw Terminal	SPDT (1 Form C)	Non Latching	3.2 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA		Silver Tin Oxide (AgSnO)	General Purpose		230 VDC	230 VAC

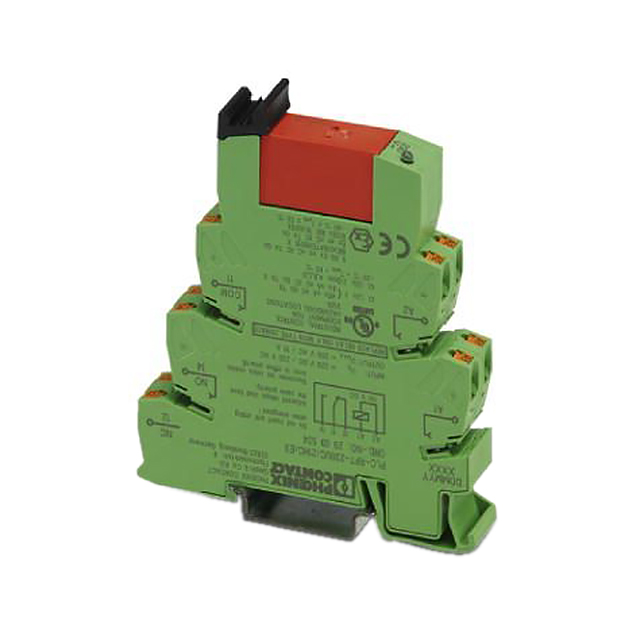

Phoenix Contact 2909534	51.11 kOhms	55 °C	-40 C	10 ms	7 ms	DIN Rail	10 A	Spring Terminal	SPDT (1 Form C)	Non Latching	4.5 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA		Silver Nickel (AgNi)	General Purpose		230 VDC	230 VAC
Phoenix Contact 2909511	26.66 kOhms	60 °C	-40 C	10 ms	7 ms	DIN Rail	6 A	Screw Terminal	DPDT (2 Form C)	Non Latching	4.5 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA		Silver Nickel (AgNi)	General Purpose	120VAC/DC

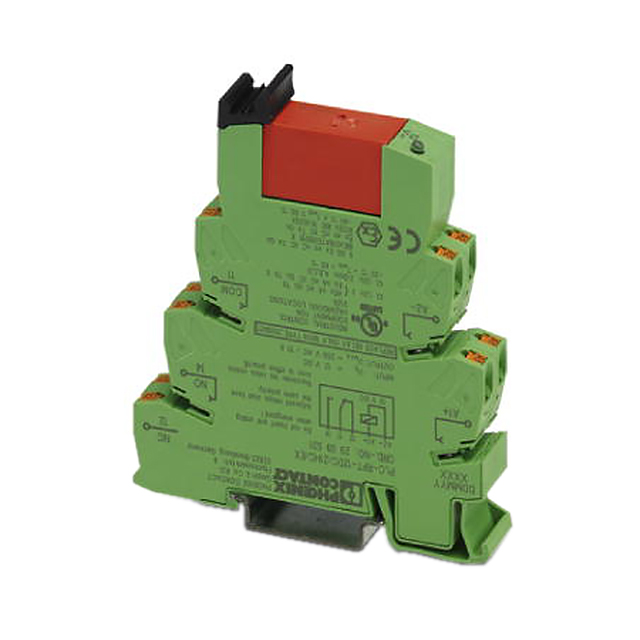

Phoenix Contact 2909531	364 Ohms	60 °C	-40 C	10 ms	8 ms	DIN Rail	10 A	Spring Terminal	SPDT (1 Form C)	Non Latching	33 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VDC	Silver Nickel (AgNi)	General Purpose
