C3P0604 Series
Manufacturer: Electroswitch
Beta
⌘K

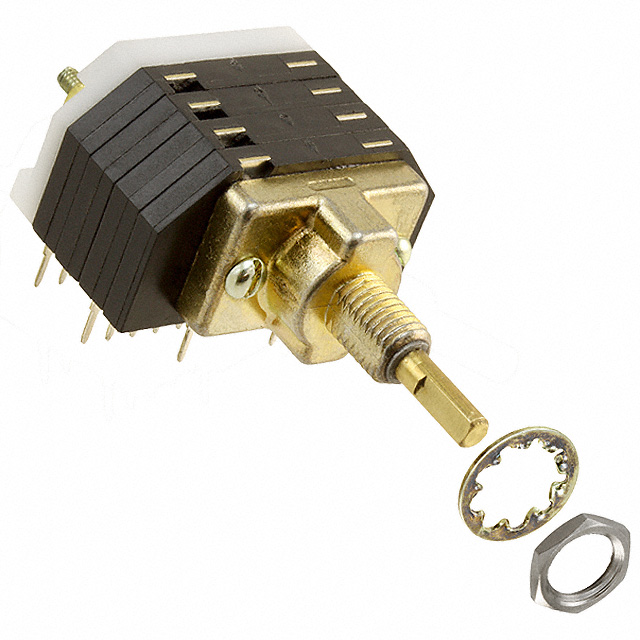

SWITCH ROTARY 2-4POS 100MA 125V
| Part | Panel Cutout Dimensions [diameter] | Circuit per Deck | Contact Material | Actuator Type | Number of Poles per Deck | Mounting Type | Termination Style | Index Stops | Number of Decks | Depth Behind Panel [custom] | Contact Timing | Contact Finish | Voltage Rating - DC | Voltage Rating - AC | Angle of Throw | Current Rating (Amps) | Number of Positions [Min] | Number of Positions [Max] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | 3P4T | Brass | Flatted (3.17mm Dia) | 3 | Panel Mount Right Angle Through Hole | PC Pin | Adjustable | 2 | 30 mm | Non-Shorting (BBM) | Silver | 28 V | 125 V | 30 ° | 100 mA 250 mA | 2 | 4 | 9.52 mm |
