CJ70 Series

Manufacturer: Cinch Connectivity Solutions Trompeter

Catalog

CONN TRB JACK STR SOLDER

Part	Body Finish	Voltage Rating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Contact Termination	Center Contact Material	Connector Style	Cable Group	Number of Ports	Housing Color	Mounting Type	Fastening Type	Features	Shield Termination	Impedance	Frequency - Max [Max]	Connector Type	Includes

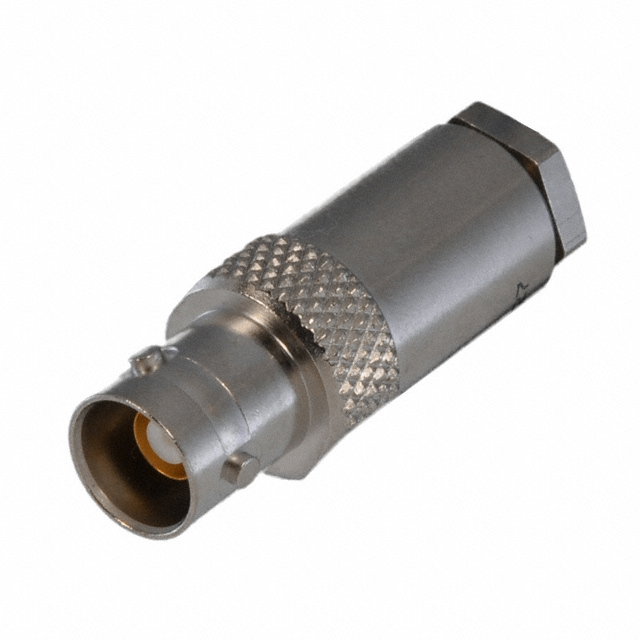

Cinch Connectivity Solutions Trompeter CJ70-29	Nickel	400 V	500	-65 ░C	165 °C	Gold	Brass	Solder	Beryllium Copper	TRB Twinaxial/Triaxial	TWC-124-1A TWC-78-1	1	Silver	Free Hanging (In-Line)	Bayonet Lock	Three Lug	Wrench Clamp	Non-Constant	500 MHz	Jack Female Socket (Concentric)

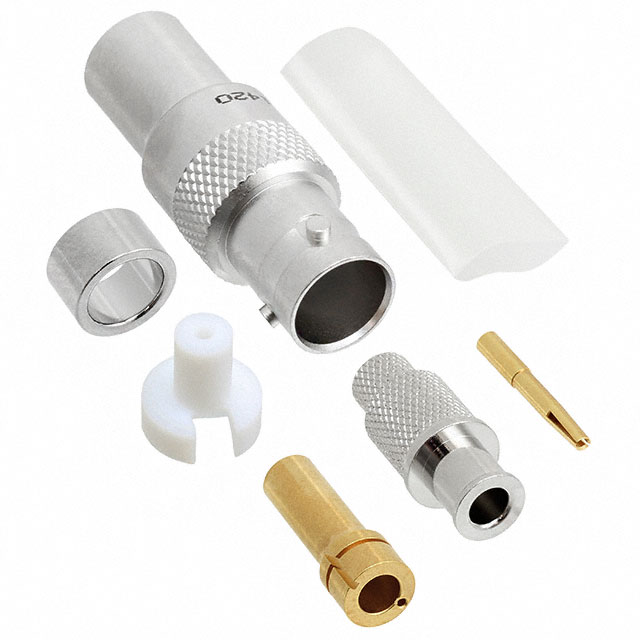

Cinch Connectivity Solutions Trompeter CJ70C-201	Nickel	400 V	500	-65 ░C	165 °C	Gold	Brass	Crimp	Beryllium Copper	TRB Twinaxial/Triaxial	M17/176-00002	1	Silver	Free Hanging (In-Line)	Bayonet Lock	Three Lug	Crimp	Non-Constant	500 MHz	Jack Female Socket (Concentric)	Connector Heat Shrink Nut Strain Relief Washer
Cinch Connectivity Solutions Trompeter CJ70-33	Nickel	400 V	500	-65 ░C	165 °C	Gold	Brass	Solder	Beryllium Copper	TRB Twinaxial/Triaxial	TRC-75-1	1	Silver	Free Hanging (In-Line)	Bayonet Lock	Three Lug	Wrench Clamp	Non-Constant	500 MHz	Jack Female Socket (Concentric)

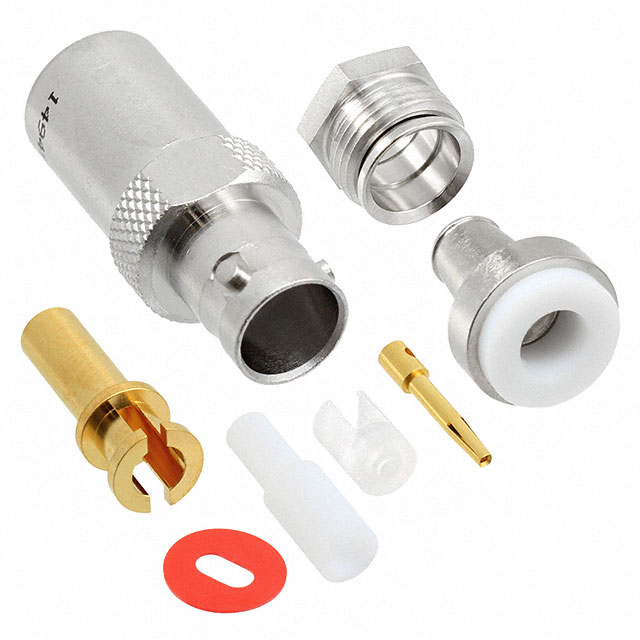

Cinch Connectivity Solutions Trompeter CJ70-9	Nickel	400 V	500	-65 ░C	165 °C	Gold	Brass	Solder	Beryllium Copper	TRB Twinaxial/Triaxial	TWC-124-2 TWC-78-2	1	Silver	Free Hanging (In-Line)	Bayonet Lock		Wrench Clamp	Non-Constant	500 MHz	Jack Female Socket (Concentric)

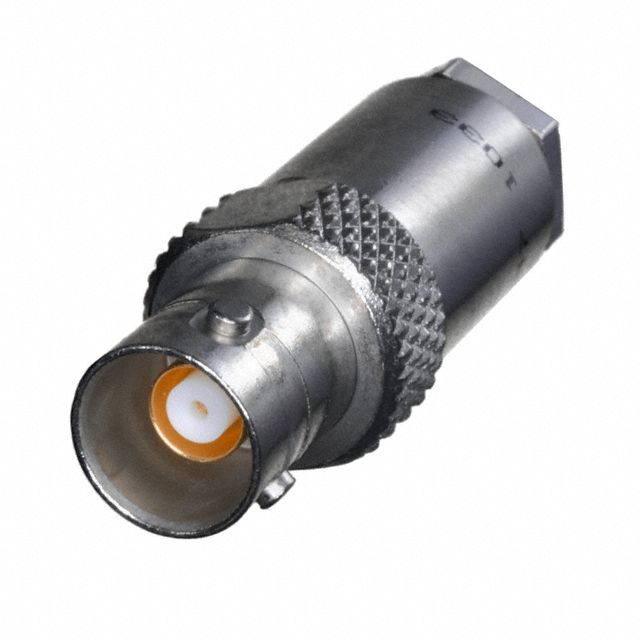

Cinch Connectivity Solutions Trompeter CJ70-47	Nickel	400 V	500	-65 ░C	165 °C	Gold	Brass	Solder	Beryllium Copper	TRB Twinaxial/Triaxial	M17/176-00002	1	Silver	Free Hanging (In-Line)	Bayonet Lock	Three Lug	Wrench Clamp	Non-Constant	500 MHz	Jack Female Socket (Concentric)
