794108 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

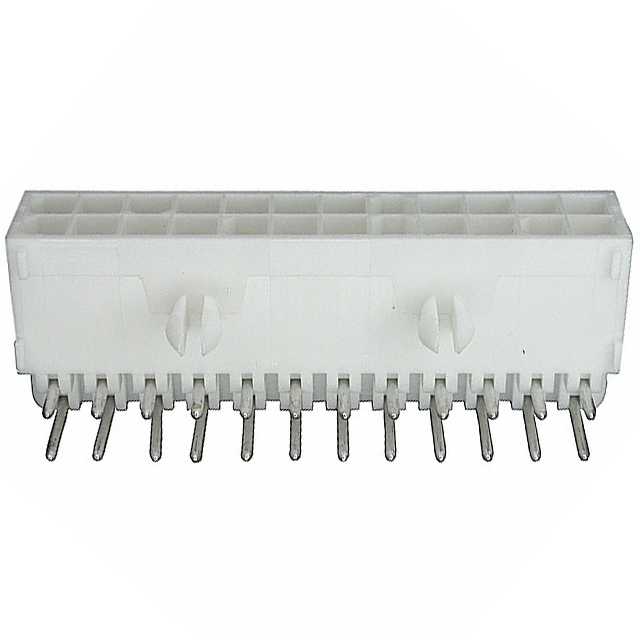

CONN WIRE TO BOARD HDR 24 POS 4.14MM SOLDER RA THRU-HOLE BAG
| Part | Contact Finish Thickness - Post | Applications | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Insulation Material | Contact Material | Style | Number of Positions | Connector Type | Voltage Rating | Material Flammability Rating | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Mounting Type | Features | Number of Rows [custom] | Current Rating (Amps) | Insulation Height | Insulation Height | Fastening Type | Contact Length - Post | Contact Length - Post | Shrouding | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Solder | -20 ░C | 105 ░C | Male Pin | White | 0.76 Ám | 30 Áin | All | Nylon Polyamide (PA) | Brass | Board to Cable/Wire | 24 | Header | 600 VAC | UL94 V-0 | Circular | 0.163 in | 4.14 mm | Tin-Lead | Right Angle Through Hole | Board Lock | 2 | Varies by Wire Gauge | 9.8 mm | 0.386 in | Locking Ramp | 3.68 mm | 0.145 in | Shrouded - 4 Wall | Gold | 4.14 mm | 0.163 in |
