305-030 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Mounting Type	Card Type	Number of Positions/Bay/Row	Termination	Features

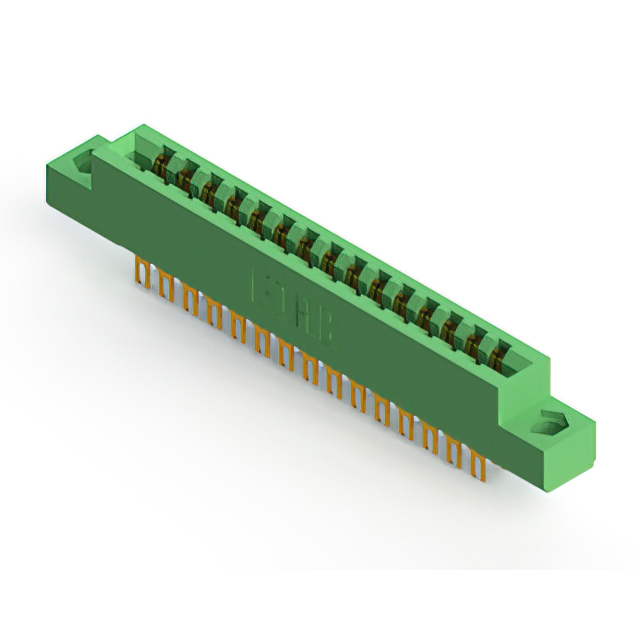

EDAC Inc. 305-030-500-204	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount	Non Specified - Dual Edge	15	Solder Eyelet(s)

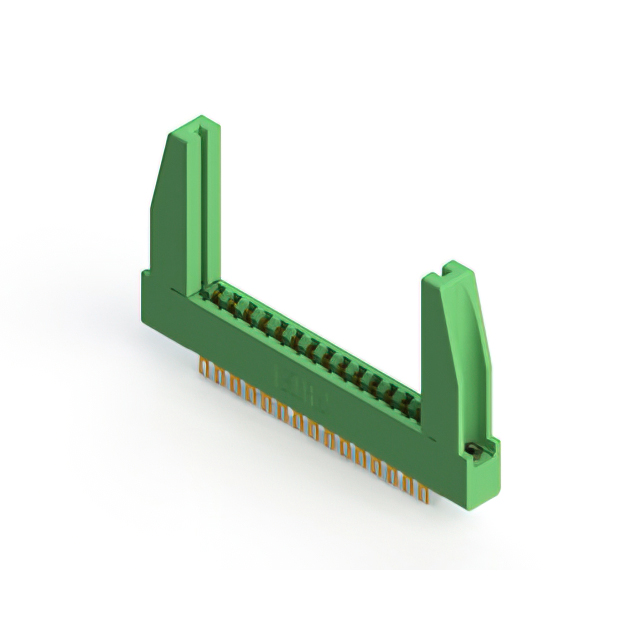

EDAC Inc. 305-030-500-578	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount	Non Specified - Dual Edge	15	Solder Eyelet(s)

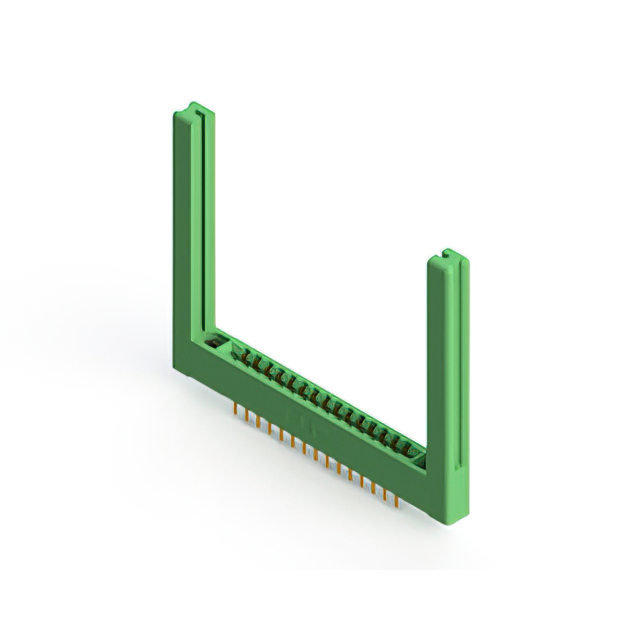

EDAC Inc. 305-030-520-558	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount Through Hole	Non Specified - Dual Edge	15	Solder
EDAC Inc. 305-030-556-268	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Board Edge Straddle Mount	Non Specified - Dual Edge	15	Solder	Card Extender Card Guides

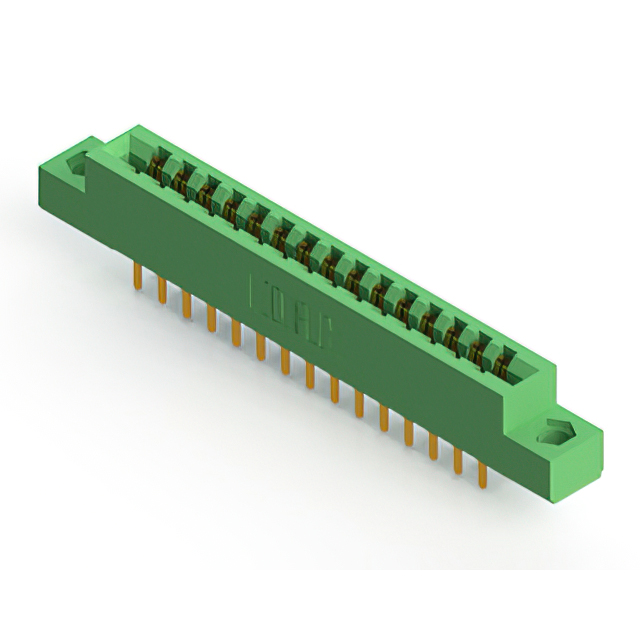

EDAC Inc. 305-030-520-504	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount Through Hole	Non Specified - Dual Edge	15	Solder

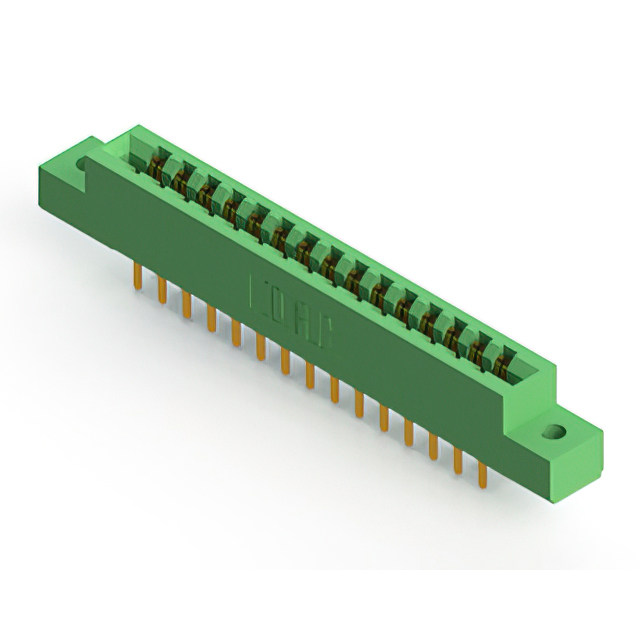

EDAC Inc. 305-030-520-502	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount Through Hole	Non Specified - Dual Edge	15	Solder

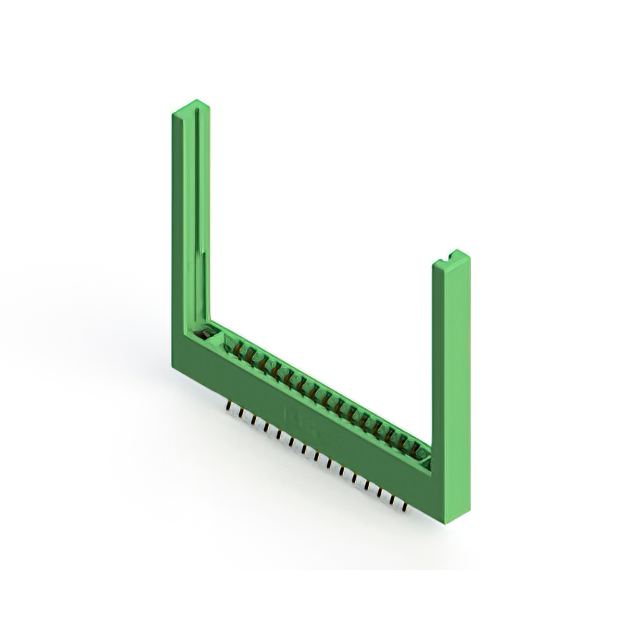

EDAC Inc. 305-030-556-568	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Board Edge Straddle Mount	Non Specified - Dual Edge	15	Solder	Card Extender Card Guides
EDAC Inc. 305-030-555-507	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	Flush Mount M3 Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Board Edge Straddle Mount	Non Specified - Dual Edge	15	Solder	Card Extender

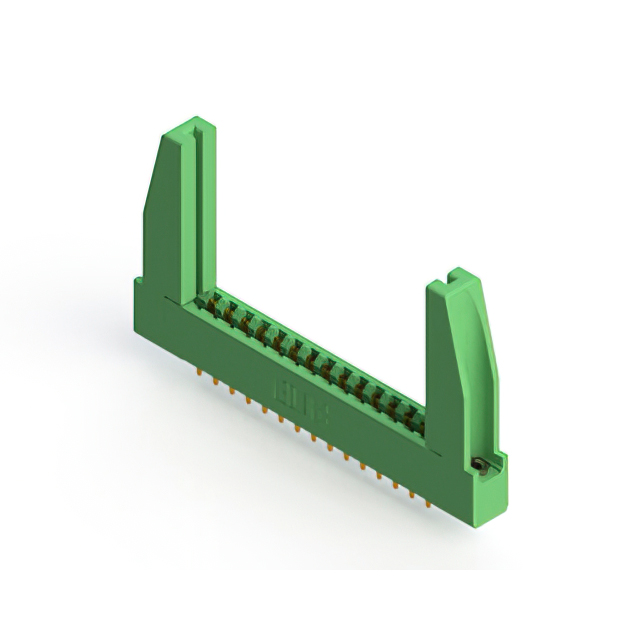

EDAC Inc. 305-030-521-578	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount Through Hole	Non Specified - Dual Edge	15	Solder

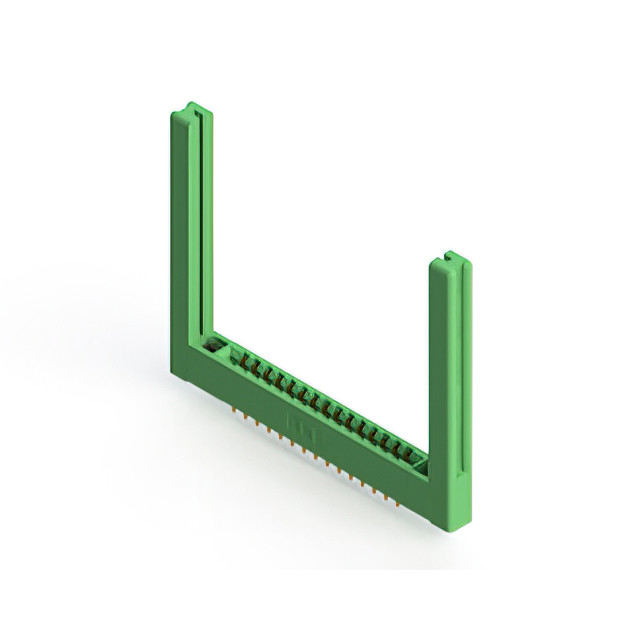

EDAC Inc. 305-030-521-558	Polyester Thermoplastic	2	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	30	Dual	-40 C	105 ░C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening			Green	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Panel Mount Through Hole	Non Specified - Dual Edge	15	Solder
