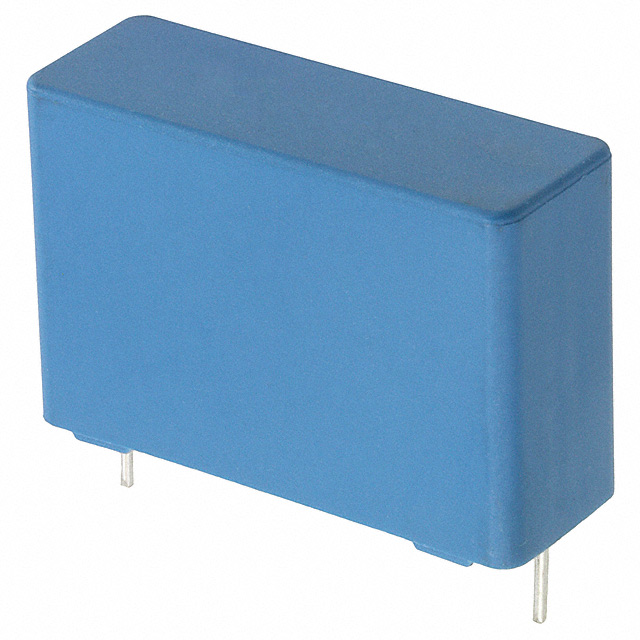

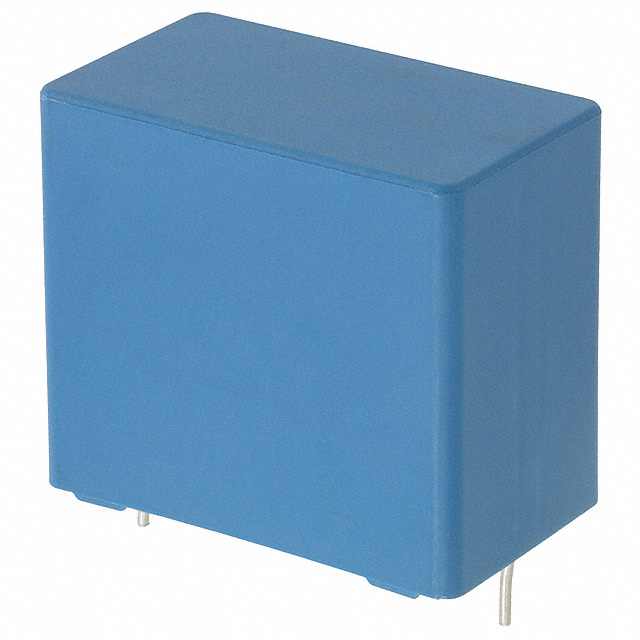

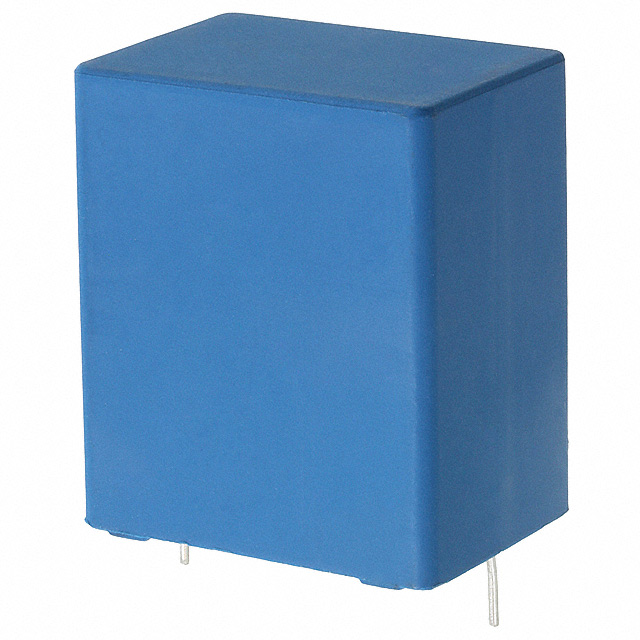

B32774D Series

Catalog

CAP FILM 5UF 10% 1.3KVDC RADIAL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Capacitance	Dielectric Material	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]

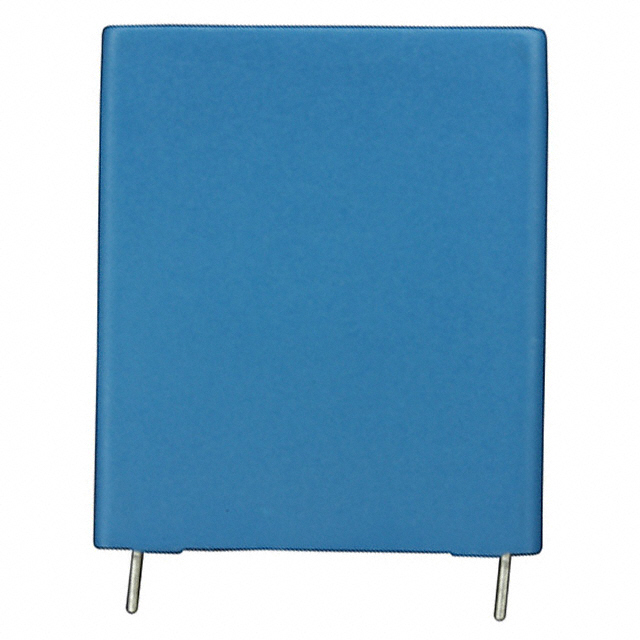

EPCOS - TDK Electronics B32774D1505K000	0.866 in	1.24 in	31.5 mm	22 mm	10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.437 "	36.5 mm	1.3 kV	1300 V	5 µF	Polypropylene (PP) Metallized	9.8 mOhm	27.5 mm	1.083 in	Long Life
EPCOS - TDK Electronics B32774D8305K189					10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	0.827 "			800 V	3 µF	Polypropylene (PP) Metallized	24.8 mOhms	27.5 mm	1.083 in	Long Life	21 mm
EPCOS - TDK Electronics B32774D1155K000	0.492 "	1.24 in	31.5 mm	12.5 mm	10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link			1.3 kV	1300 V	1500 nF	Polypropylene (PP) Metallized	31.3 mOhms	27.5 mm	1.083 in	Long Life	21.5 mm	0.846 "
EPCOS - TDK Electronics B32774D4226K000	0.866 in	1.24 in	31.5 mm	22 mm	10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.437 "	36.5 mm		450 V	22 µF	Polypropylene (PP) Metallized	5.4 mOhm	27.5 mm	1.083 in	Long Life
EPCOS - TDK Electronics B32774D0205K189	0.492 "	1.24 in	31.5 mm	12.5 mm	10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link			1.1 kV	1100 V	2 µF	Polypropylene (PP) Metallized	26.3 mOhms	27.5 mm	1.083 in	Long Life	21.5 mm	0.846 "
EPCOS - TDK Electronics B32774D1305J000			1.24 in	0.709 in	5 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.083 in	27.5 mm	1.3 kV	1300 V	3 µF	Polypropylene (PP) Metallized	16 mOhm	27.5 mm	1.083 in	Long Life			18 mm	31.5 mm
EPCOS - TDK Electronics B32774D8126J000	0.866 in	1.24 in	31.5 mm	22 mm	5 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.437 "	36.5 mm		800 V	12 µF	Polypropylene (PP) Metallized	6.8 mOhms	27.5 mm	1.083 in	Long Life
EPCOS - TDK Electronics B32774D0505J000					5 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.181 "	30 mm	1.1 kV	1100 V	5 µF	Polypropylene (PP) Metallized	10.9 mOhms	27.5 mm	1.083 in	Long Life
EPCOS - TDK Electronics B32774D1305K000			1.24 in	0.709 in	10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.083 in	27.5 mm	1.3 kV	1300 V	3 µF	Polypropylene (PP) Metallized	16 mOhm	27.5 mm	1.083 in	Long Life			18 mm	31.5 mm
EPCOS - TDK Electronics B32774D8126K000	0.866 in	1.24 in	31.5 mm	22 mm	10 %	Through Hole	PC Pins	-40 C	105 ░C	Radial	DC Filtering DC Link	1.437 "	36.5 mm		800 V	12 µF	Polypropylene (PP) Metallized	6.8 mOhms	27.5 mm	1.083 in	Long Life
