207120 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

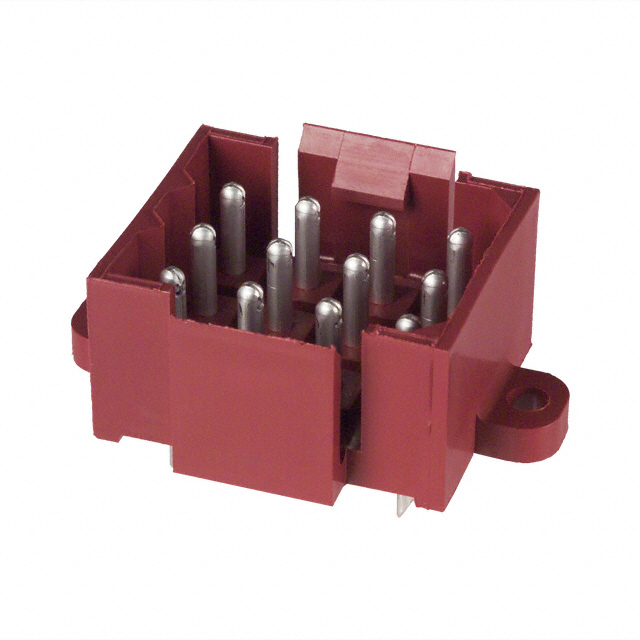

CONN HEADER VERT 12POS 5MM
| Part | Insulation Height | Insulation Height | Features | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Current Rating (Amps) | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Contact Shape | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Number of Rows | Applications | Insulation Color | Number of Positions Loaded | Contact Finish - Post | Mounting Type | Contact Material | Voltage Rating | Shrouding | Fastening Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.464 in | 11.79 mm | Mounting Flange | 12 | 130 °C | -55 °C | 5 mm | 0.197 in | Header | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Male Pin | 7.5 A | UL94 V-0 | 0.181 in | 4.6 mm | Solder | Circular | Board to Board Cable | 150 Áin | 3.81 Ám | 5 mm | 0.197 " | 3 | Automotive General Purpose Industrial | Black Red | All | Tin | Through Hole | Brass | 600 V | Shrouded - 4 Wall | Latch Lock | |
TE Connectivity Raychem Cable Protection | 0.464 in | 11.79 mm | Mounting Flange | 12 | 130 °C | -55 °C | 5 mm | 0.197 in | Header | Nylon Polyamide (PA) | 100 çin | 2.54 çm | Male Pin | 7.5 A | UL94 V-0 | 0.181 in | 4.6 mm | Solder | Circular | Board to Board Cable | 150 Áin | 3.81 Ám | 5 mm | 0.197 " | 3 | Automotive General Purpose Industrial | Black Red | Tin | Through Hole | Brass | 600 V | Shrouded - 4 Wall | Latch Lock | 10 |
