U4Y002 Series
Manufacturer: TDK Corporation
Beta
⌘K

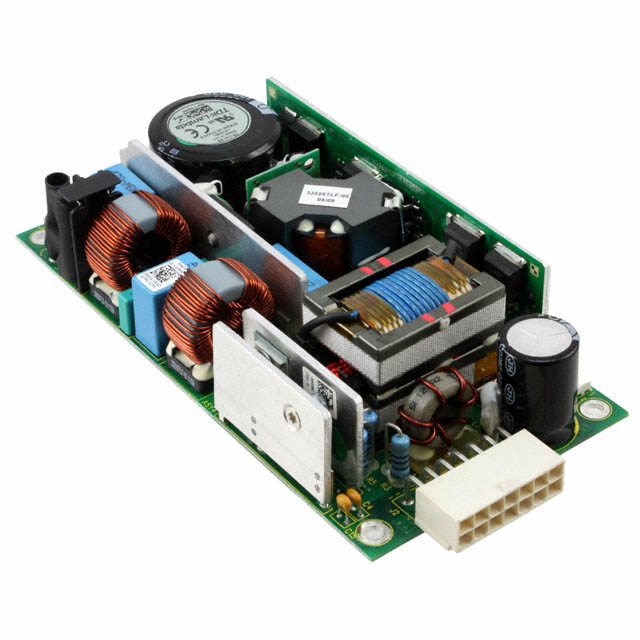

AC/DC OPEN FRAME POWER SUPPLY (PSU), ACTIVE PFC, 1 OUTPUT, FIXED, 12 V
| Part | Mounting Type | Approval Agency | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Efficiency | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Features | Type | Voltage - Isolation | Voltage - Output 1 | Applications | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Chassis Mount | CE | 400 W | 76.2 mm | 152.4 mm | 3 in | 34 mm | 6 in | 1.34 in | 1 | 90 % | 33.3 A | 264 VAC | 90 VAC | PFC Standby Output Universal Input | Open Frame | 4.3 kV | 12 V | ITE (Commercial) | 70 °C | 0 °C |
