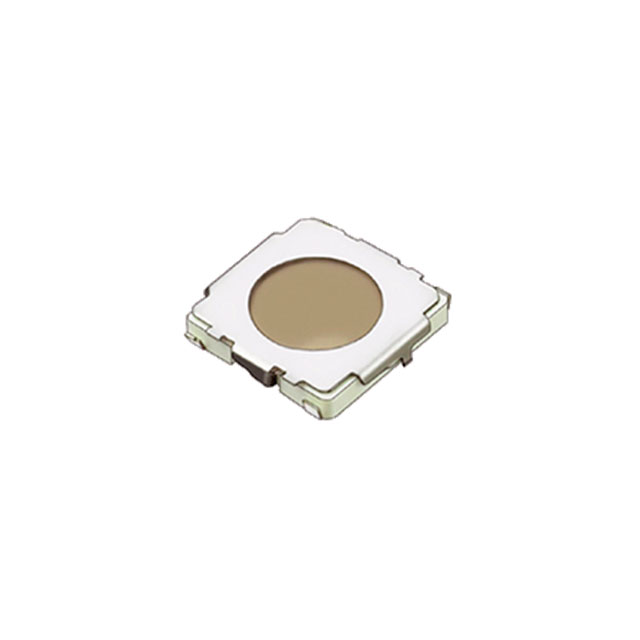

EVQ-5P Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Actuator Type | Mechanical Life | Actuator Height off PCB, Vertical | Operating Force | Actuator Orientation | Illumination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Outline [x] | Outline [y] | Termination Style | Switch Travel | Circuit | Contact Rating @ Voltage [x] | Switch Function | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Without | 200000 Cycles | 0.8 mm | 357 gf | Top Actuated | Non-Illuminated | Surface Mount | -20 C | 70 °C | 4.9 mm | 4.9 mm | J Lead | 0.25 mm | SPST-NO | 0.02 A 15 VDC | Off-Mom | |
 Panasonic Industrial Automation Sales | Standard | 30000 Steps | 5 mm | 240 gf | Top Actuated | Non-Illuminated | Surface Mount | -30 ░C | 85 °C | 6 mm | 3.5 mm | J Lead | 0.25 mm | SPST-NO | Off-Mom | 0.05 A 12 VDC |
