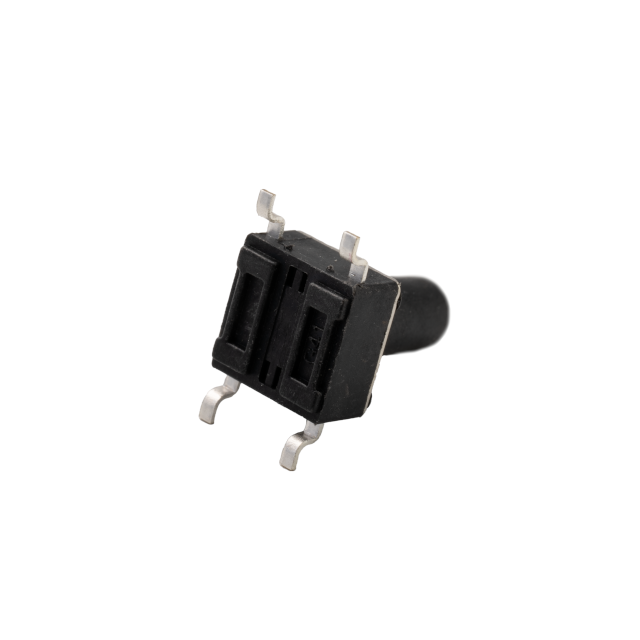

RTS1216 Series
Manufacturer: RDI, Inc.
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Mounting Type | Operating Force | Termination Style | Illumination | Switch Function | Actuator Type | Actuator Height off PCB, Vertical [z] | Outline [x] | Outline [y] | Circuit | Contact Rating @ Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RDI, Inc. | 0.25 mm | 100000 Cycles | Surface Mount | 120 gf | Gull Wing | Non-Illuminated | Off-Mom | Standard | 9.5 mm | 6 mm | 6 mm | SPST-NO | 0.05 A 12 VDC | -20 ░C | 70 °C | Top Actuated |
