MS3116E10 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

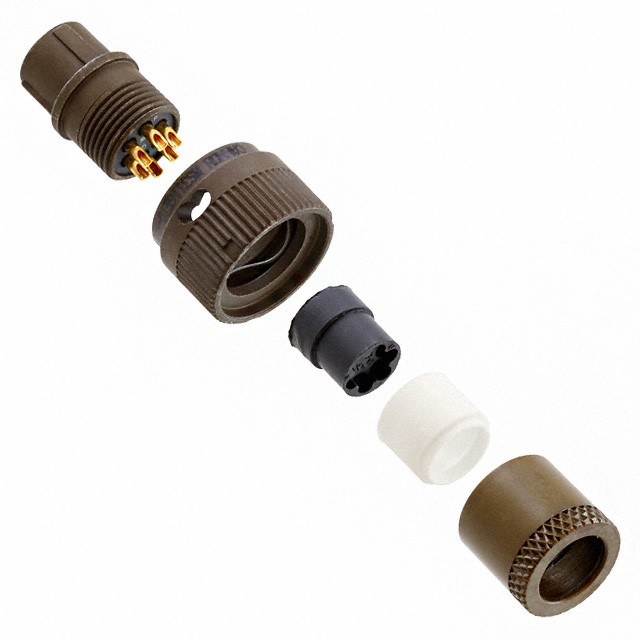

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 6 CONTACTS, SOLDER PIN
| Part | Color | Current Rating (Amps) | Contact Finish - Mating | Voltage Rating | Voltage Rating | Orientation | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Shell Size - Insert | Fastening Type | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Ingress Protection | Shell Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Olive Drab | 7.5 A | Gold | 600 VAC | 850 VDC | N (Normal) | Plug Male Pins | 50 µin | 1.27 µm | Metal | 10-6 | Bayonet Lock | Free Hanging (In-Line) | 6 | -55 C | 125 °C | Aluminum Alloy | Environment Resistant | Olive Drab Cadmium | Backshell |
